Quicksilver 505OP— Electrical Systems
28

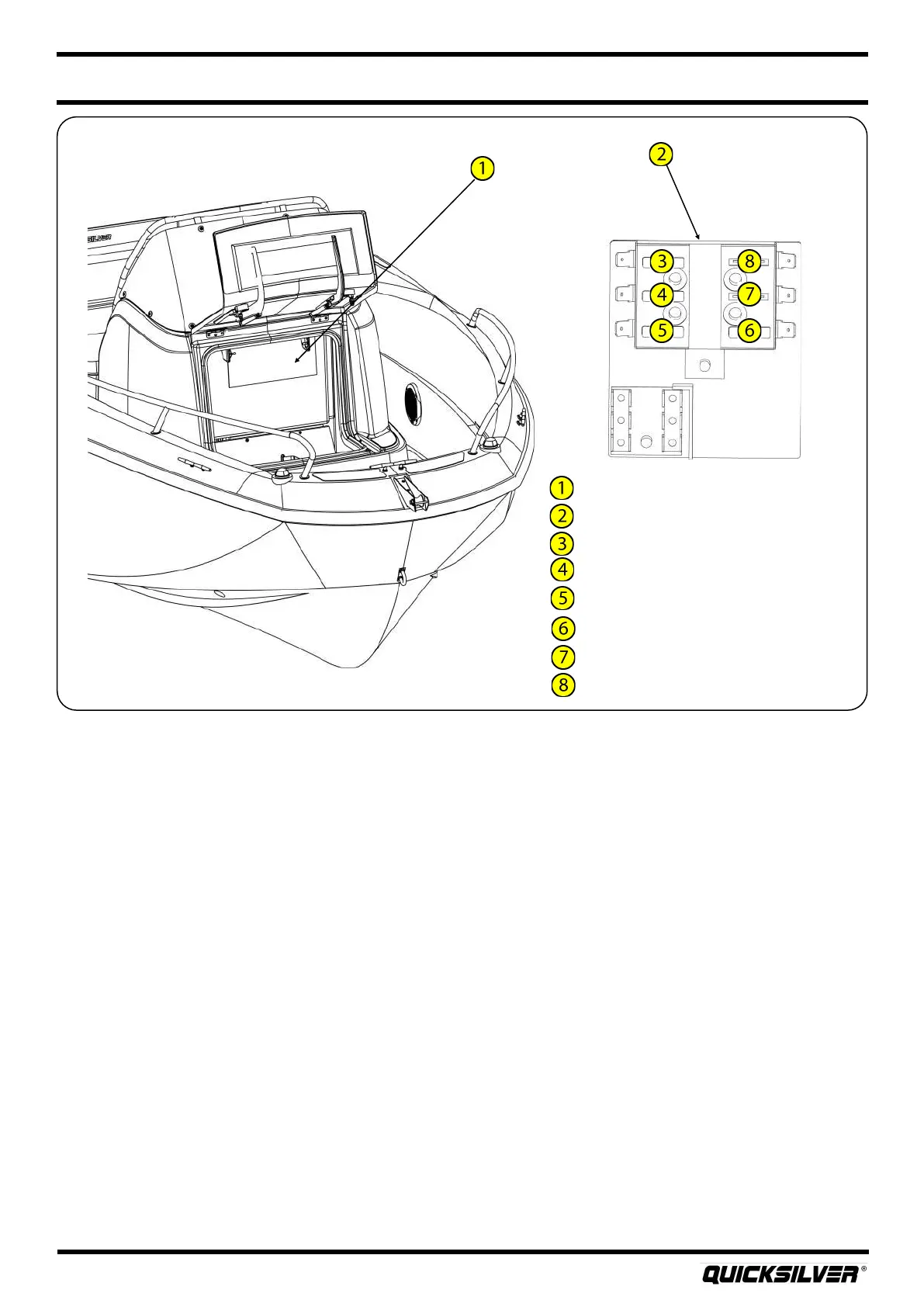

Helm fuse panel
Dash closeout panel
Helm fuse panel
Bilge pump (manual) — 3 Amp
Navigaon lights — 5 Amp
12V receptacle — 10 Amp
Stereo — 10 Amp
GPS — 10 Amp
Open
6. Electrical Schemacs
This owner’s manual contains electrical schemacs and wiring harness illustraons for your boat.
These electrical schemacs were generated by the Electrical Engineering Department for technical
reference and service technicians. Quicksilver® does not recommend that you aempt to work on the
boat’s electrical system yourself. Instead, we recommend that you take your boat to your local
authorized Quicksilver® dealer for service. Quicksilver® reserves the right to change or update the
electrical system on any model at any me without noce to the consumer and is not obligated to
make any updates to units built prior to the change.
