6. Function and Control
6.1 Remote Controller Introduction
Buttons on Remote Controller
Introduction
for Icons on Display Screen

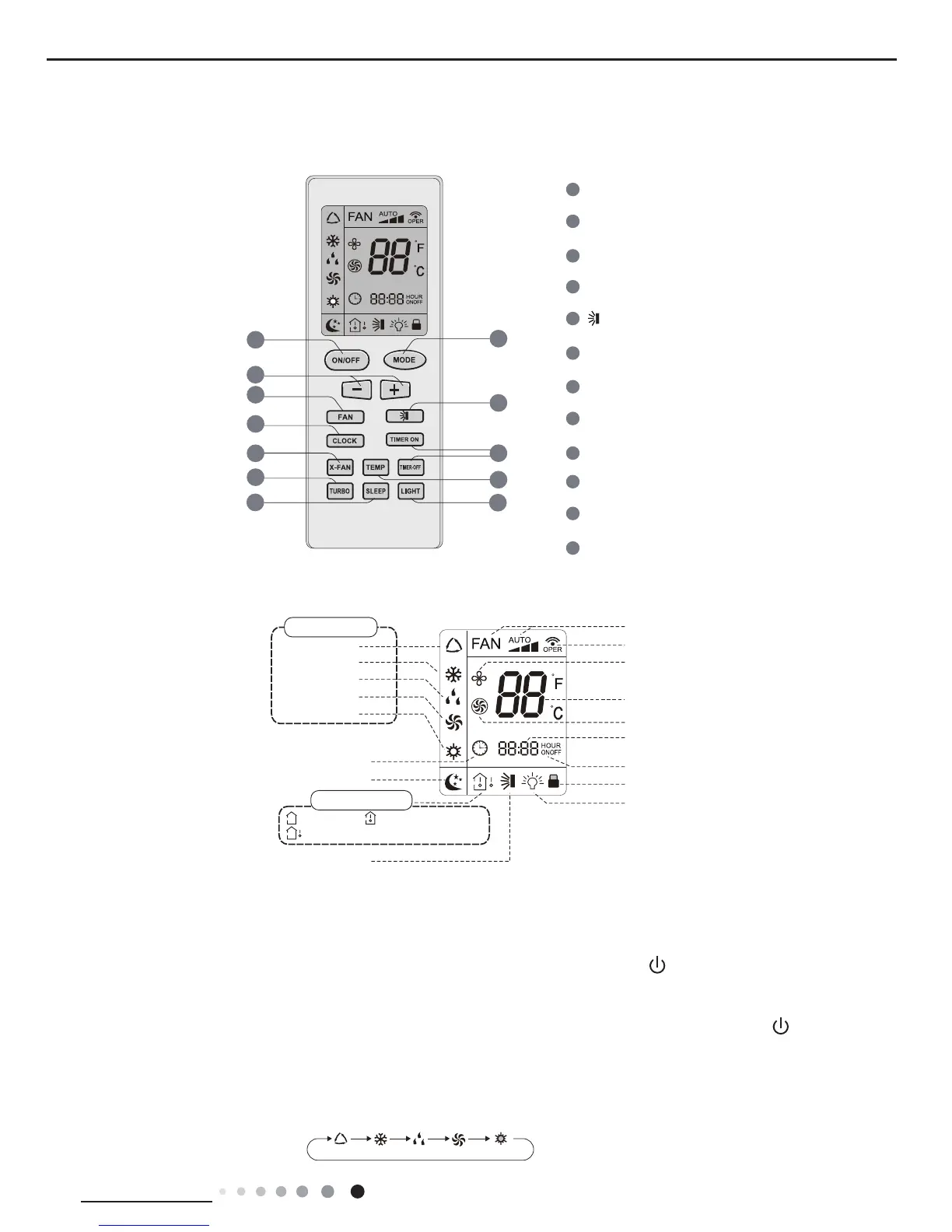

Introduction for Buttons on Remote Controller
ON/OFF Button
2
3
1
5
6
4
8
9
7
11
12
10
MODE Button
+/- Button
FAN Button
TIMER ON/TIMER-OFF Button
X-FAN Button
TEMP Button
LIGHT Button
SLEEP Button
CLOCK Button
TURBO Button
Button
2
6
8
3
9
10
7
5
12
11
4
1
Auto mode
Cool mode
Heat mode
Fan mode
Dry mode
Clock
Light
Child lock
TIMER ON/TIMER OFF
Up&down swing
:Indoor ambient temp.
:Set temp.
:Outdoor ambient temp.
Sleep mode
Set temperature
Send signal
Turbo mode
Set time
X-fan mode
Set fan speed
Operation mode
Temp. display type
1. ON/OFF Button
Press this button can turn on or turn off the air conditioner. After turning on the air conditioner, operation indicator " " on indoor
unit’s display is ON (green indicator. The colour is different for different models), and indoor unit will give out a sound.
2. MODE Button
Press this button to select your required operation mode.
Note:After putting through the power, the air conditioner will give out a sound. Operation indictor " " is ON (red indicator). After that,
you can operate the air conditioner by using remote controller.
