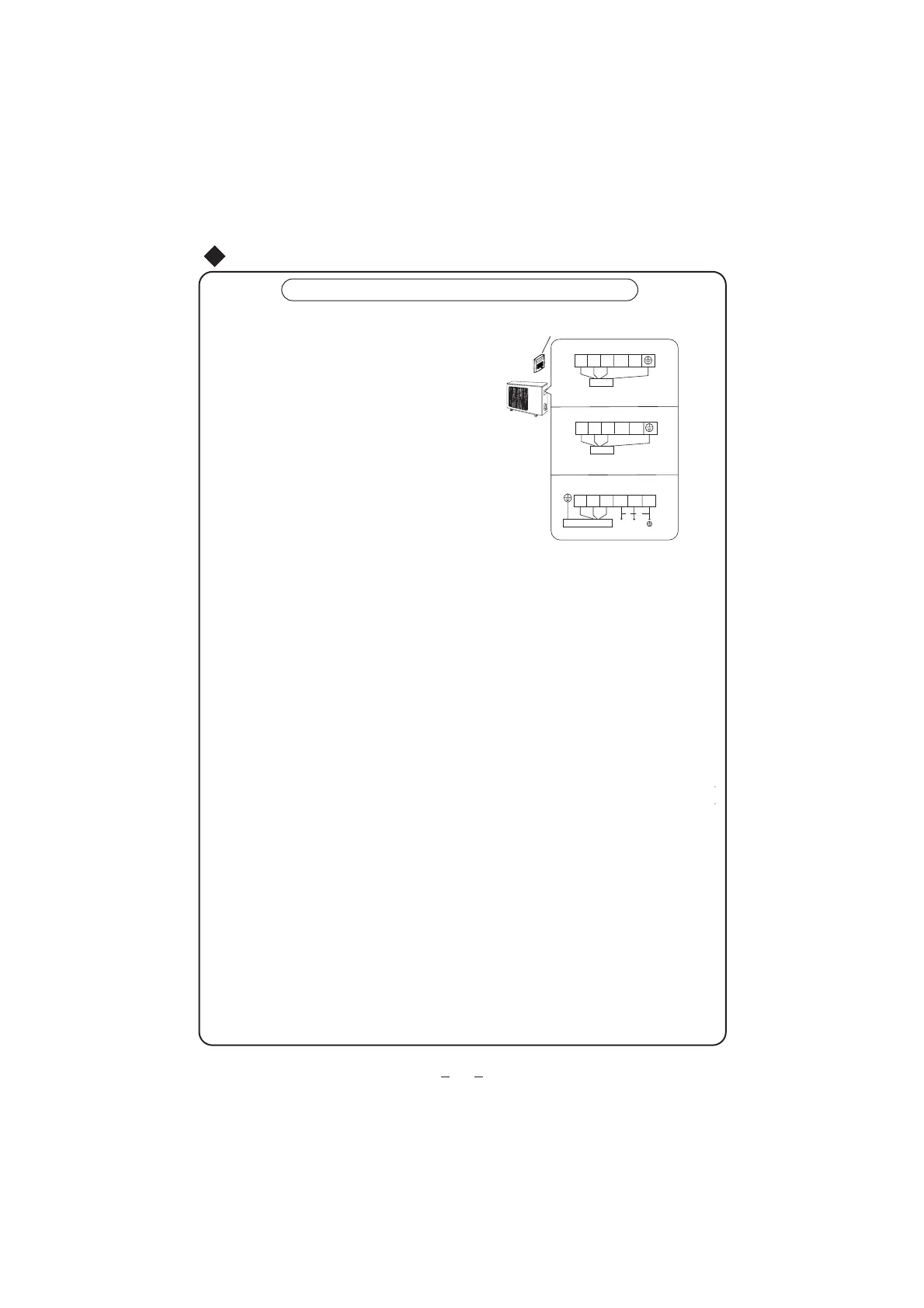

for 220~240V models
Indoor unit
connection
N(1)
23
LN
blue
black brown
yellow-
green
Handle
for 208~230V models
GWH24MD-D3DNC5A
Indoor unit
connection
N(1)
23
L1 L2
blue
black brown
yellow-
green
Indoor unit
connection
N(1)
23
L1
L1
L2
L2
G
blue
black brown
POWER CORD
yellow-
green
22
Ɣ
Ɣ
Install outdoor unit
Electric wiring
NOTE:
Wrong wiring may cause spare parts malfunction.
After the cable fixed, make sure there should be a free space between the connection
and connection and fixing place on the lead wire.
3.
4.
5.
1.
2.
Disassemble the handle on the outdoor unit right side plate.
Take off cord anchorage. Connect and fix power connect
cord and power cord to terminal block.
Fix the power connection cable and power cord with
cord anchorage.
Ensure wire has been fixed well.
Install the handle.
