quiko MOOVY QK-M2000 Use And Maintenance Manual

3
E
N
G
L
I
S
H

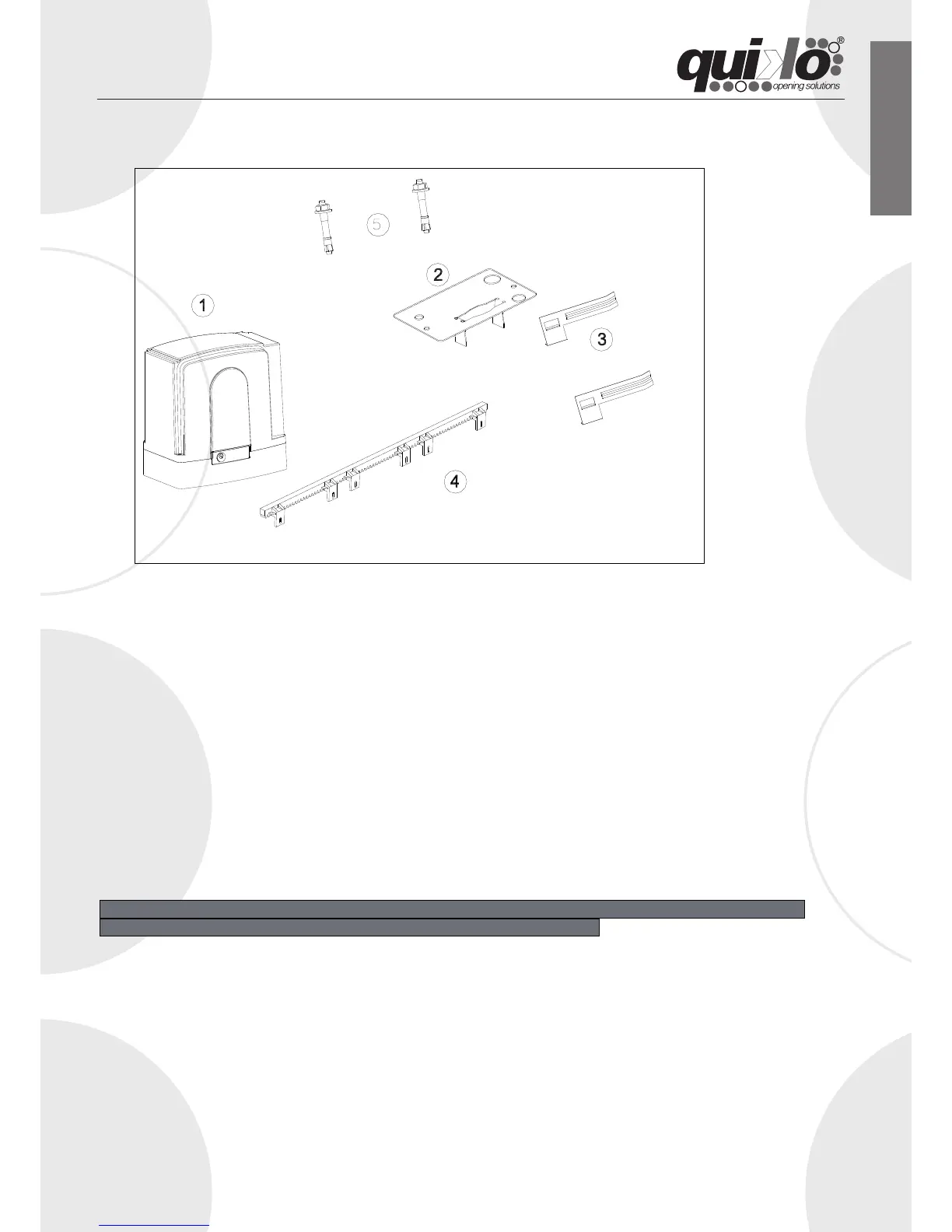

2- MATERIALS FOR INSTALLATION
FIG. 1
1. Gearmotor
2. Counterplate
3. Limit switches brackets (cammes)
4. M4 rack
5. M10 Anchor bolts
3- POSITIONING THE COUNTERPLATE
Dig a concrete foundation base following measurements shown on fig. 2, 3. Position the counterplate making
sure it is perfectly levelled and smooth and complying with the measurements shown on fig. 2, 3. Route the
conduits through the base holes and let them come out for at least 25 cm. If a concrete foundation base is
already available, do not unfold the anchor leaves and fasten the base only with the anchor bolts.
4- POSITIONING THE GEARMOTOR
Drill two holes ø 10 mm on the concrete in correspondence of the holes of the counterplate. Install the
anchor bolts and fasten to the concrete. Remove the gearmotor removable cover. Position the gearmotor
onto the counterplate. Temporary fasten the gearmotor to the base by tightening the anchor bolt nuts. !The
gearmotor position can be adjusted horizontally of approx. 15 mm
If the anchor bolts are not available it is possible using 2 bolts M10x25. The head of the bolts shall be tack
welded to the base plate before the couterplate is embedded on the concrete
5- INSTALLING THE RACK
Use a M4 Rack. Release the gearmotor and set the gate in the open position. Place the rack on pinion
leaving at least 2 mm of gap between the gear teeth. Fasten the rack to the gate in such manner that the
bolts are in the middle of the rack slots (in this way it shall be possible adjust in the future the right gap
between the rack and pinion). Move the gate manually to secure all rack pieces along its full length. Once
the rack has been installed, finally check the gap of 2 mm between the pinion and the rack. Finally secure
the gearmotor with the nuts.
