Cod. 2200780113 01 - Edition 10/2014 - 5
ONLY PROFESSIONALLY SKILLED PERSONNEL MAY HAVE ACCESS TO THE ELECTRIC PANEL. SWITCH OFF THE POWER BEFORE
OPENING THE DOOR OF THE ELECTRIC PANEL. COMPLIANCE WITH THE REGULATIONS IN FORCE CONCERNING ELECTRIC PLANTS
IS FUNDAMENTAL FOR OPERATOR SAFETY AND FOR THE PROTECTION OF THE MACHINE.
12.3 CONNECTION TO THE COMPRESSED AIR NETWORK
Fit a manual interception valve between the machine and the compressed air network so that the dryer may be isolated during maintenance
operations. Drainage of condensate Rif. 2 Fig. 7 (automatic) are led outside the machine with a flexible pipe that may be inspected.
Drainage must comply with the local regulations in force.
ALL DAMAGE DUE TO THE FAILURE TO COMPLY WITH THESE NDICATIONS CANNOT BE ATTRIBUTED TO THE MANUFACTURER AND
MAY CAUSE INVALIDITY OF THE GUARANTEE CONDITIONS.
12.4 STARTING UP
See part B of this manual, Chpter 18.0
13.0 DIMENSIONS AND TECHNICAL DATA
TYPE
L
in (mm)
W
in (mm)
H
in (mm)
QPNC 10
13,78 (350)
20,09 (510)
19,05 (484)
QPNC 15
13,78 (350)
20,09 (510)
19,05 (484)
QPNC 25
13,78 (350)
20,09 (510)
19,05 (484)
QPNC 35
13,78 (350)
20,09 (510)
19,05 (484)
QPNC 50
13,78 (350)
20,09 (510)
19,05 (484)
TYPE
A
NPT
B
NPT
QPNC 10
1/2-14 Male
1/2-14 Male
QPNC 15
1/2-14 Male
1/2-14 Male
QPNC 25
1/2-14 Male
1/2-14 Male
QPNC 35
1/2-14 Male
1/2-14 Male
QPNC 50
1/2-14 Male
1/2-14 Male
Refrigerant gas
(1)
GWP
100
(2)
R-134a
1300
(1)
According to ISO 817
(2)
According to EN-378-1

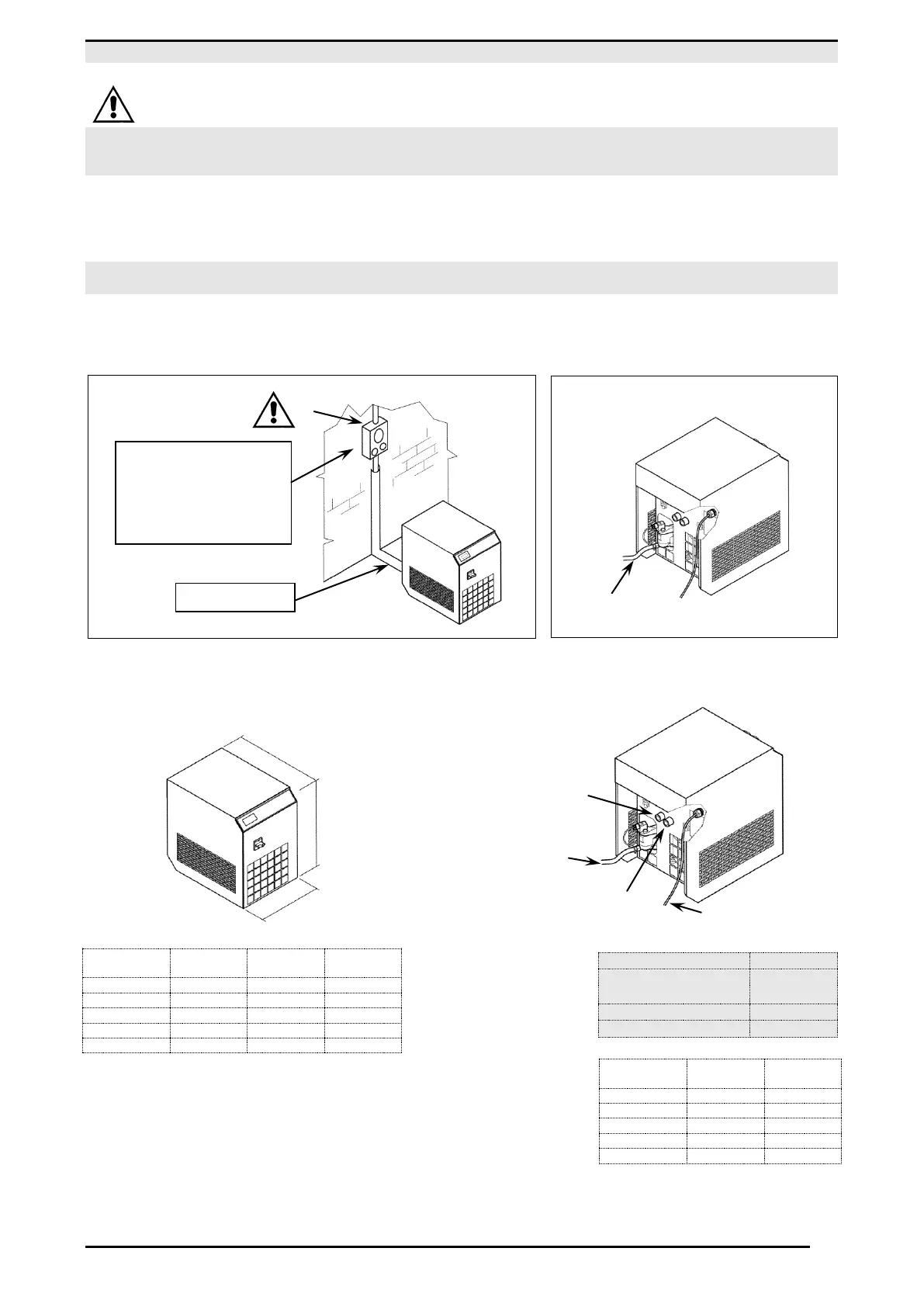

FIG. 6
Minimum mt. 1,5
FIG. 7
ATTENTION:
THE DIFFERENTIAL
AUTOMATIC SWITCH AGAINST
CURRENT OVERLOAD REF. 1
IS NOT CURRENT SUPPLIED
WITH THE MACHINE.
1
2
CONDENSATE
DRAINING
H
W
L
ELECTRICAL CABLE
(B) AIR OUTLET
(A) AIR INLET
