Quincy Compressor QR-25 Series User Manual

QR-25 Series Quincy Compressor
52201-107, December 2012 12 3501 Wismann Lane, Quincy IL - 62305-3116

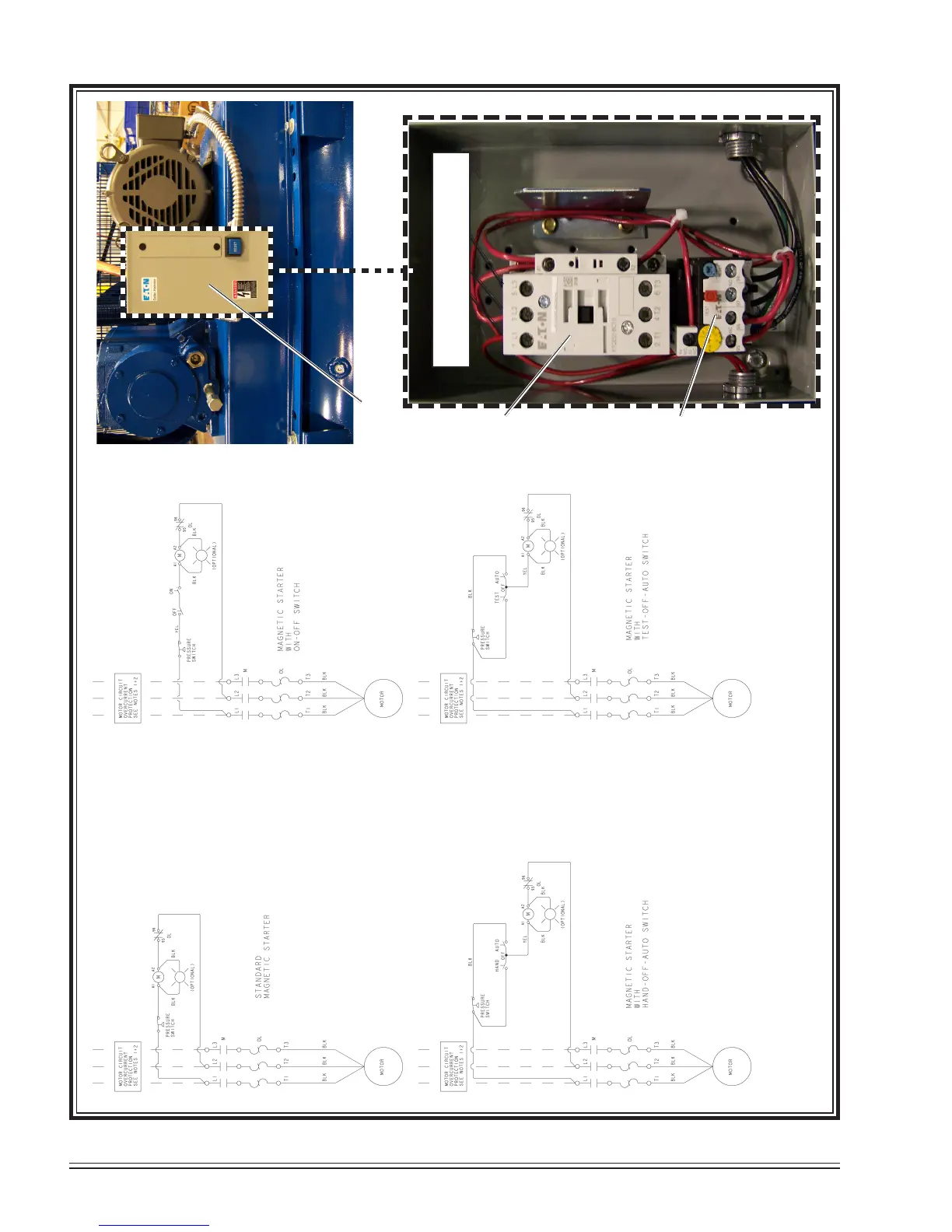

3 Phase Magnetic Motor Starter With Automatic Start / Stop Control
Wiring Schematic WP1744A
Magnetic Starter
Contactor
Overload
Relay
Connect incoming power lines
at screw terminals L1, L2 & L3.
CAUTION !
Verify all wires are secure
and fasteners are torqued
before connecting power to
the unit.
All wires are red unless otherwise specied. Dashed lines represent wires supplied by others. At Installation, the customer is to provide: Disconnect and branch circuit overcurrent protection and grounding between the power supply and the electrical control enclosure in accor- dance with the National Electrical Code (NEC), the Canadian Electrical Code (CEC) and / or any local codes having precedence.
