Quooker Combi+ - Drilling Hole Installation; Select position Nordic single tap; Drilling hole for Nordic single tap; Drilling hole for Fusion or Flex tap

1
3
2
A

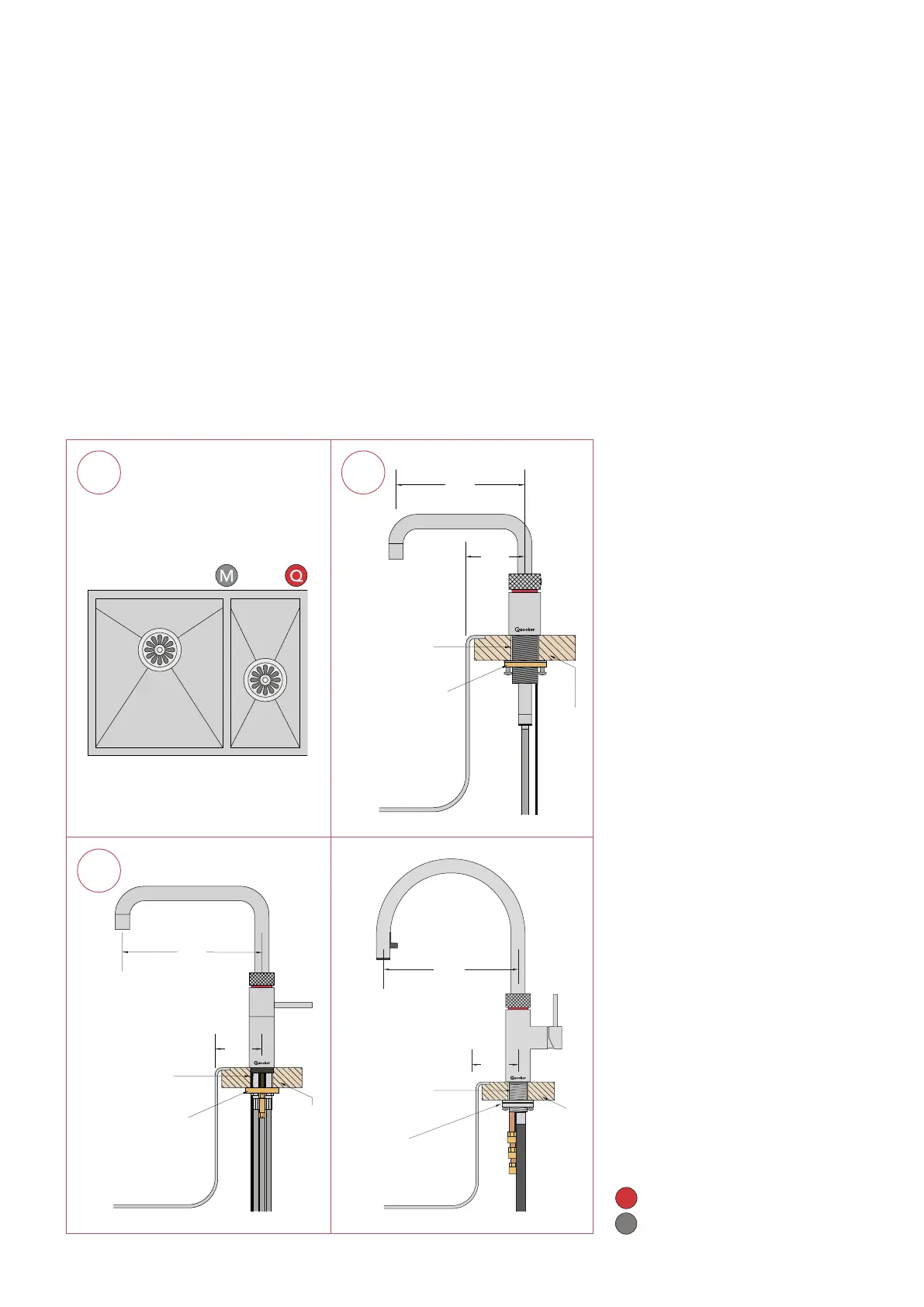

1. Select position Nordic single tap
Select a suitable position for the Nordic
single tap based on the type of sink and
position of the mixer tap.
2. Drilling hole for Nordic single tap
Using the correct drill bit, drill a hole of
32 mm through the work top for the Nordic
single tap. Note: For the Nordic mixer tap
please refer to the separate guide. In the
case of a hole of 35 mm or larger, use the
centring ring provided.
3. Drilling hole for Fusion or Flex tap
Select a suitable position for the tap.
Using the correct drill bit, drill a hole of
35 mm through the work top. In this, take
account of the range of the tap’s spout
from the centre of the tap hole.
Drilling hole
• Note: The tap hole for the Nordic single tap should be 32 mm in diameter.
The Fusion and Flex tap hole should be 35 mm in diameter.
• The Nordic single tap should ideally be positioned at the corner of the sink to enable use
above the sink or the work top.
• Note: It must be possible to move the spout of the Nordic single tap freely up and down.
When the spout is in its lowest position it projects ca. 25 cm below the work top. Bear this in
mind when tting the inlet combination, sockets and the like.
• Note: The Flex tap coupling must be able to move freely. When the hose is not withdrawn it
hangs approximately 40 cm below the work surface top. Make allowances for this when tting
the inlet combination, power sockets and so forth.
Q
M
QM
Nordic single tap
Mixer tap
Dimensions in mm
Max. thickness 60
Ø52
Hole
Ø35
220
±70
Dimensions in mm
Max. thickness 50
Ø50
Hole
Ø32
±70
160
Dimensions in mm
Max. thickness 50
Ø50
Hole Ø35
220
±70
