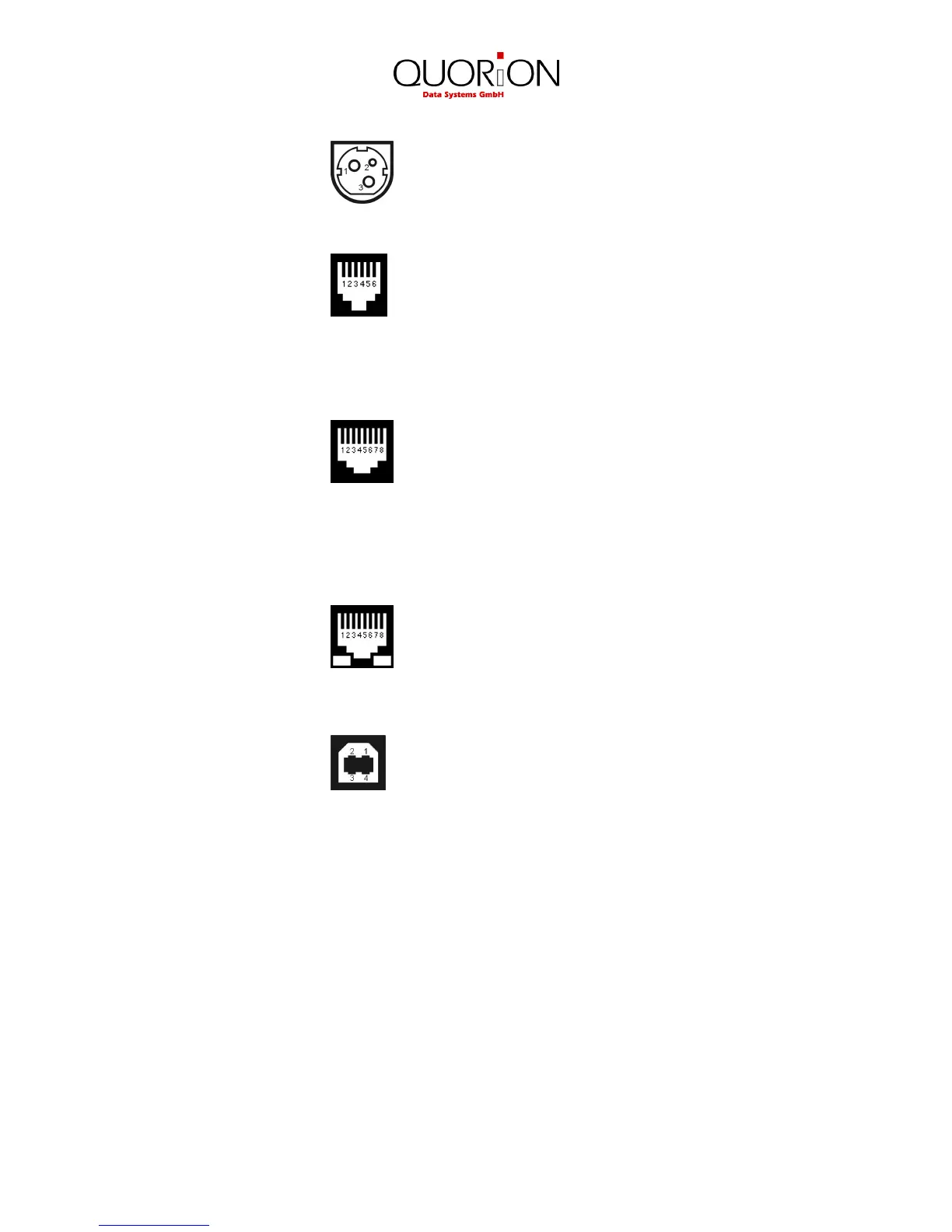

Power supply 1: +24V DC
2: GND
3: NC
Cash drawer 1: GND
2: Drawer +
3: Sensor
4: Drawer -
5: NC
6: GND
RS232 ports 1 to 3 1: +5V DC (max. 0,5A)
2: RxD
3: TxD
4: DTR
5: GND
6: DSR
7: RTS
8: CTS
LAN 1: TX+
2: TX-
3: RX+
6: RX-
USB device 1: VCC
2: USB N1
3: USB P1
4: GND
Adapter cables from the QPrint FM to peripheral devices you may order from your local QUORION
dealer.
