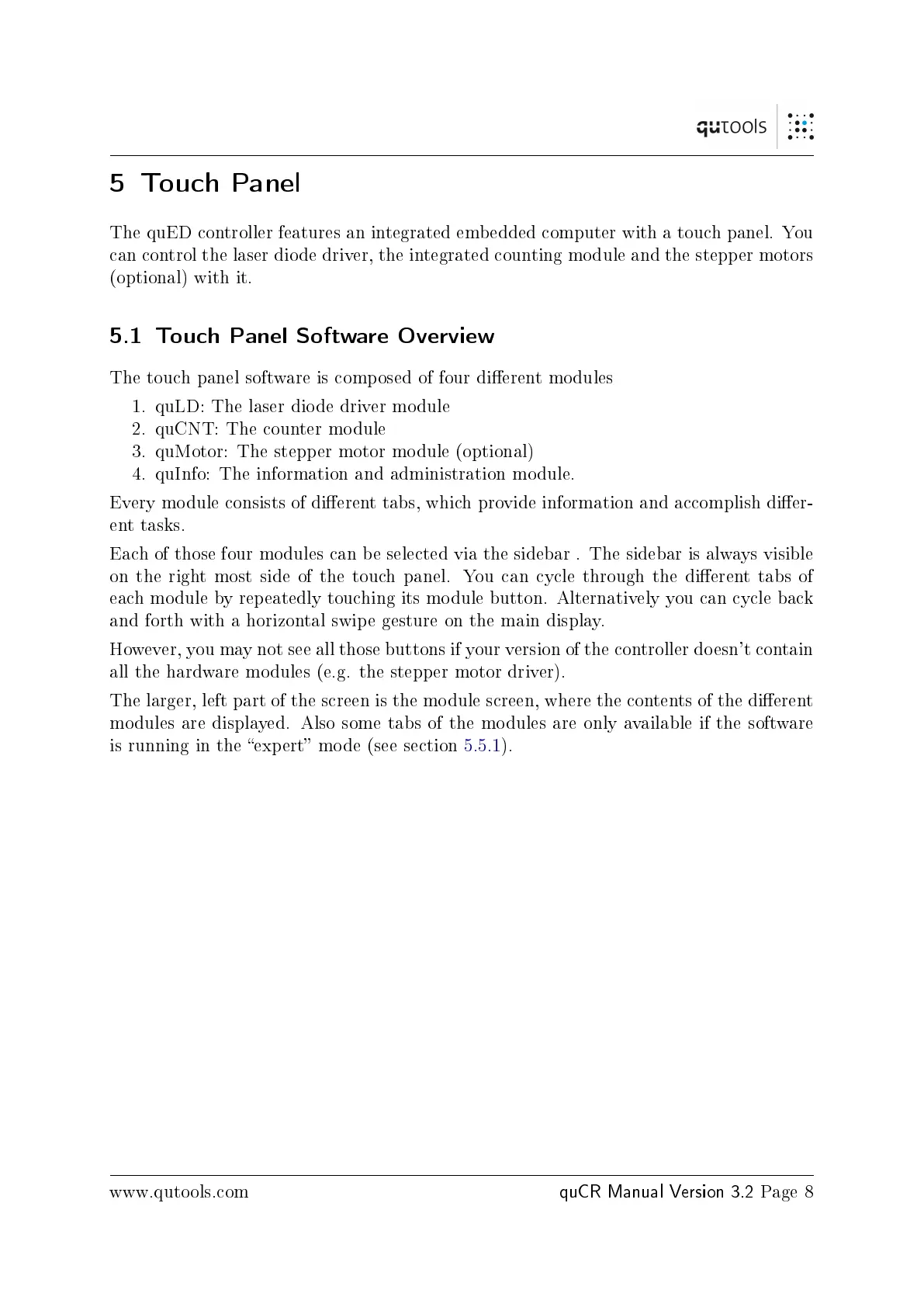

5 Touch Panel
The quED controller features an integrated embedded computer with a touch panel. You
can control the laser diode driver, the integrated counting module and the stepper motors
(optional) with it.
5.1 Touch Panel Software Overview
The touch panel software is composed of four dierent modules
1. quLD: The laser diode driver module
2. quCNT: The counter module
3. quMotor: The stepper motor module (optional)
4. quInfo: The information and administration module.
Every module consists of dierent tabs, which provide information and accomplish dier-
ent tasks.
Each of those four modules can be selected via the sidebar . The sidebar is always visible
on the right most side of the touch panel. You can cycle through the dierent tabs of
each module by repeatedly touching its module button. Alternatively you can cycle back
and forth with a horizontal swipe gesture on the main display.
However, you may not see all those buttons if your version of the controller doesn't contain
all the hardware modules (e.g. the stepper motor driver).
The larger, left part of the screen is the module screen, where the contents of the dierent
modules are displayed. Also some tabs of the modules are only available if the software
is running in the expert mode (see section 5.5.1).
