3
2.
Descripci
ó
n
del
producto
2.1
Panel
Frontal

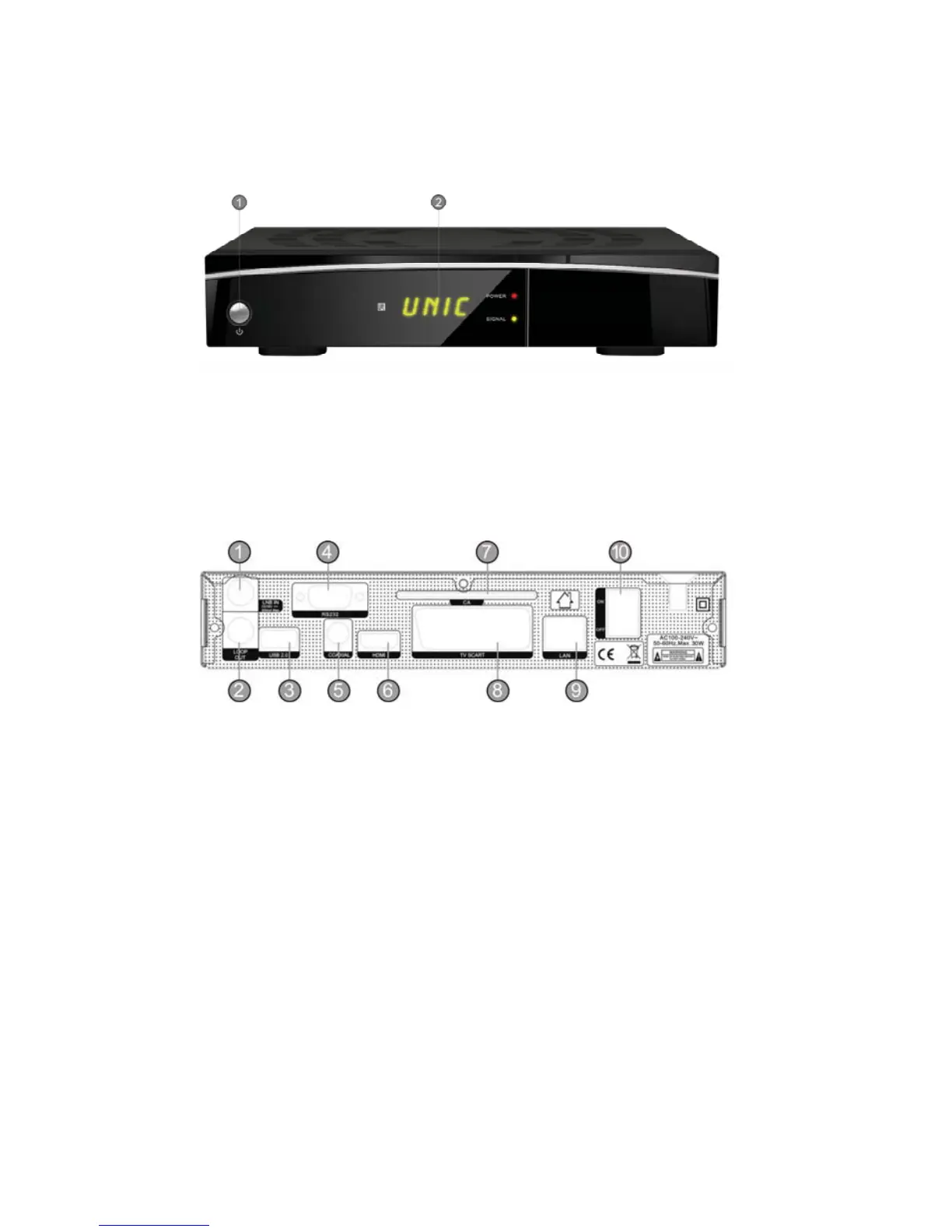

Figura 2. Panel frontal
1. Botón de encendido
Cambiar entre el funcionamiento y modo “standby”.
2. Display
Muestra la información del canal. En el modo “standby” se muestra la hora local.
2.2
Panel
trasero
Figura 3. Panel trasero
1. LNB IN
Conecte el cable de antena de satélite.
2. LOOP OUT
Conecte otro receptor.
3. USB2.0
Conecte el disco USB.
4. RS232
Conecte al ordenador mediante puerto serie.
5. COAXIAL
Salida de audio digital (coaxial).
6. HDMI
Conecte al televisor mediante un cable HDMI.
7. CA
Interfaz de CA.
8. TV scart
Conecte al televisor mediante un cable euroconector.
9. LAN
Conexión a la red Ethernet mediante un cable de red.
10. ON / OFF
Encendido / apagado.
