r2p Tracking ProBox 3100 - Page 16

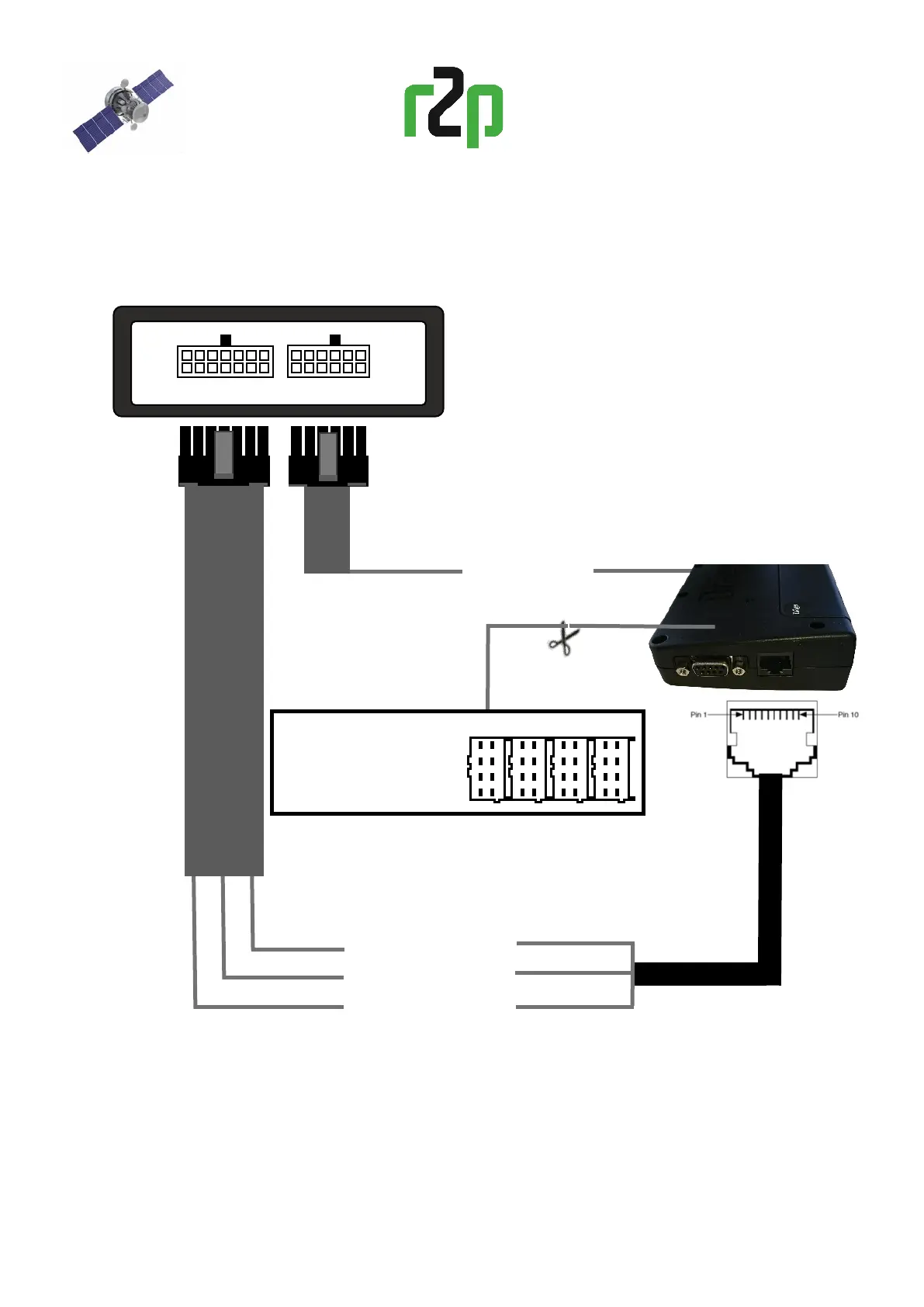

Draeger Interlock 7000
PROBOX 3100
1
212
11
1
214
13
Pin 1 RX
Pin 10 TX
Pin 2 + 9 Ground
5 Purple RS232, A, Rx
7 Pink RS232, A, Tx
2 Black Ground
RJ48
10 Orange Digital 2 Out
Pin 14
Pin 16
D8 KLINE
If pin 16 from the Interlock 7000 is connected to pin D8
on the Tachograph, the user switch will be
overruled by the Interlock 7000. If this function is not needed
then disconnect the connection.
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
D C B A
TACHO, REAR VIEW
15
Installation information about Tacho Driver login see page 12
Installation information about RFID login see page 6
Installation information about Ibutton login see page 7
IMPORTANT:
REMEMBER TO CONFIGURE THE DRAGER INTERLOCK 7000 SO THE RS232 OUTPUT IS ACTIVE
