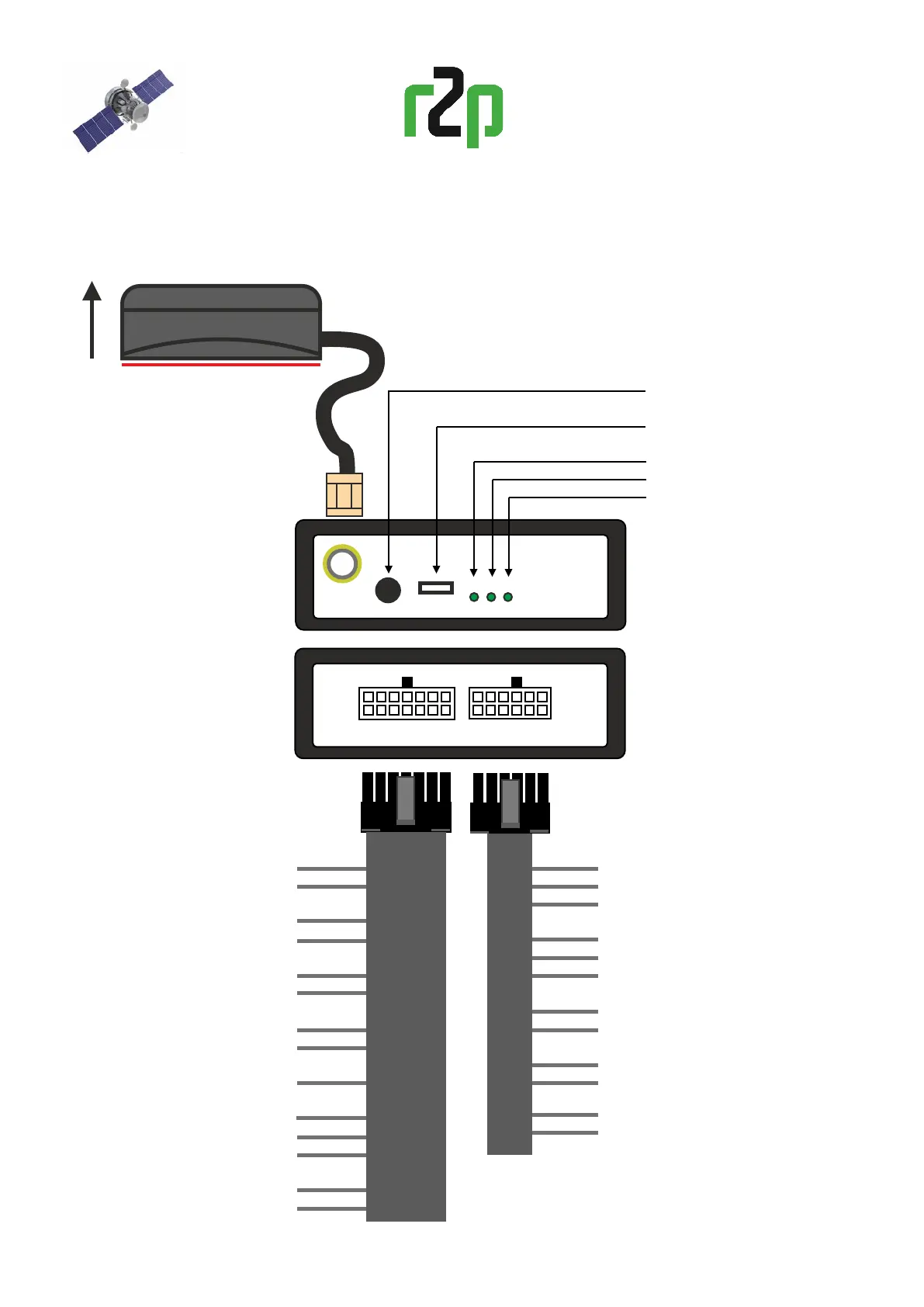

r2p Tracking ProBox 3100 - Rear View

1 Red Plus, 10-30 volt
2 Black Ground
9 Yellow Ignition
3 Pink Digital 1 In
5 Blue Digital 2 In
7 White Digital 3 In
4 Grey Analog 1 In
6 Green Analog 2 In
8 Purple Digital 1 Out
10 Orange Digital 2 Out
12 White/Red CAN2 H
11 Blue/Red CAN2 L
1
212
11
1
214
13
1 Yellow RS232, B, Rx
3 Orange RS232, B, Tx
5 Purple RS232, A, Rx
7 Pink RS232, A, Tx
9 Green L-line
11 Brown K-line
13 White/Red RS485, A
14 Yellow/Brown RS485, B
2 Black Ground
8 White CAN1 H
10 Blue CAN1 L
12 Black Ground
6 Green/Yellow 1W DATA
4 Red 1W 5 volt
FRONT VIEW
REAR VIEW
GPS antenna
Remove self-adhesive tape
Mount of flat surface
Voice, microphone
USB, computer
GPS LED
GSM LED
PERIPHERAL LED
PROBOX 3100
3
