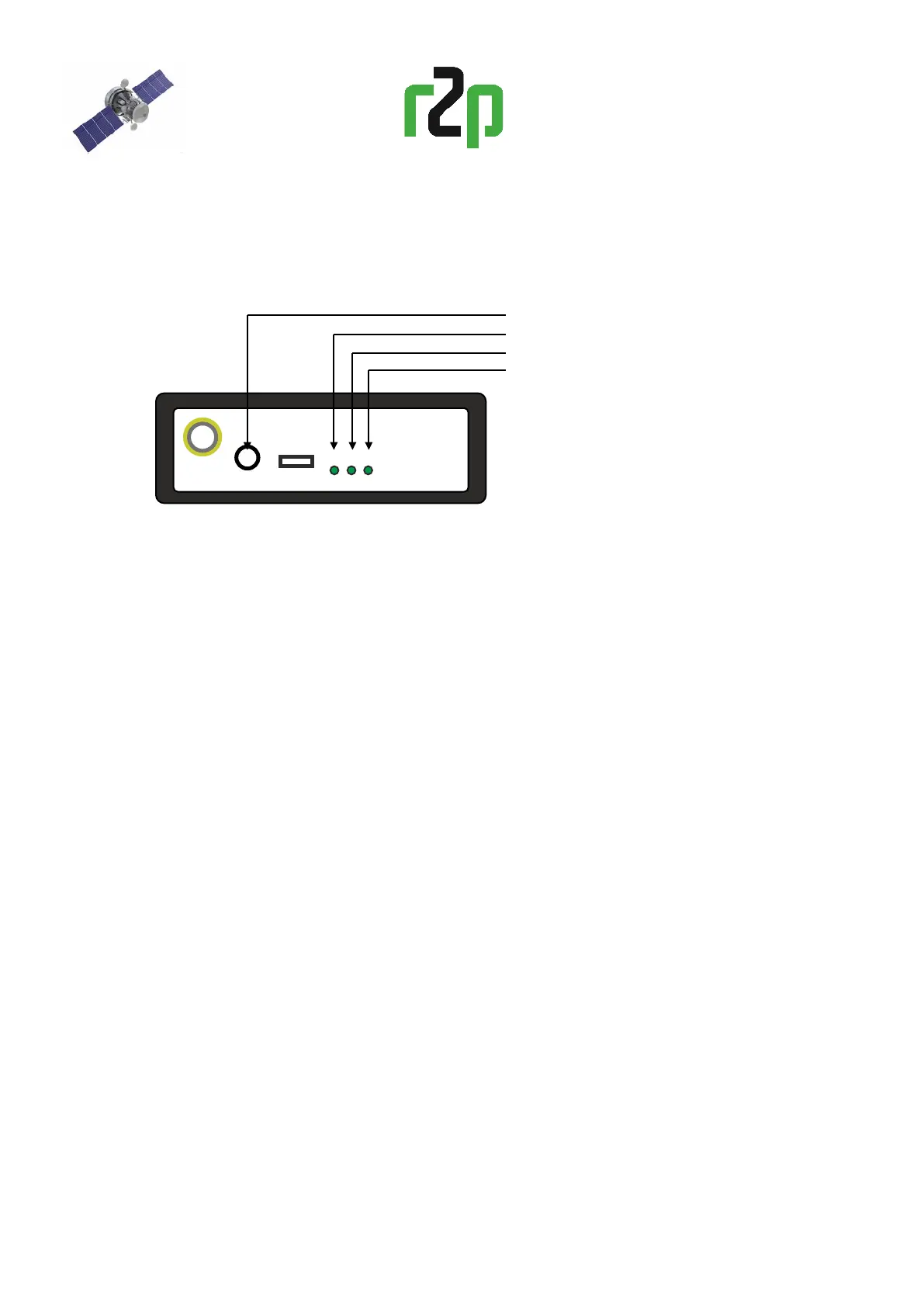

FRONT VIEW
MICROPHONE (NOT USED)
GPS LED
GSM/GPRS LED
PERIPHERAL LED
LED’s
GPS LED
Two (2) blinks pr second = GPS NOT OK
One (1) blink pr second = GPS OK
GSM/GPRS LED
Four (4) blinks pr second = GSM NOT OK
One (1) blink pr second = GSM OK, But NO GPRS
One (1) blink every 4 seconds = GSM AND GPRS OK
ON = Sending data by GPRS
PERIPHERAL LED
Zero (0) blinks every 5 seconds = No peripheral is connected
One (1) blink every 5 seconds = 1 pcs peripheral is connected
Two (2) blinks every 5 seconds = 2 pcs peripheral is connected
Three (3) blinks every 5 seconds = 3 pcs peripheral is connected
