GSM
Jamming Detection
PROBOX 3100
1
212
11
1
214
13
Red Power 10 - 30 volt
Orange Digital 2 Out
1
10

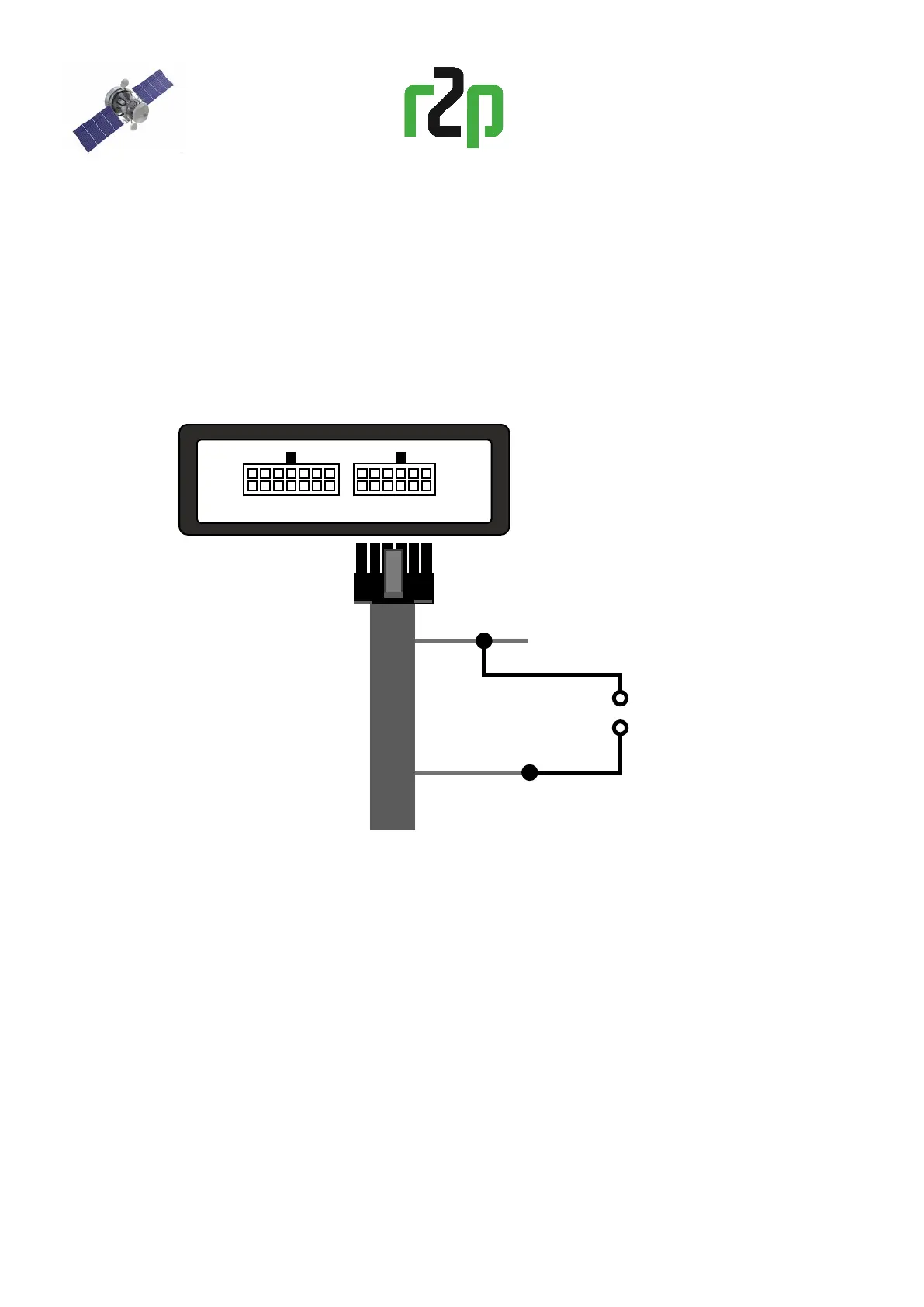

Digital output 2 is enabled when Jamming is detected.
The digital output 2 is an open collector output and
have a maximum rating of 300 mA.
When the digital output is enabled there will be Ground
on the output wire.
If more than 300 mA is needed please use a relay.
If Driver Panel is connected use White wire from the panel.
Driver Panel connections can be found on page 12.
