SIDE SUPPORTS

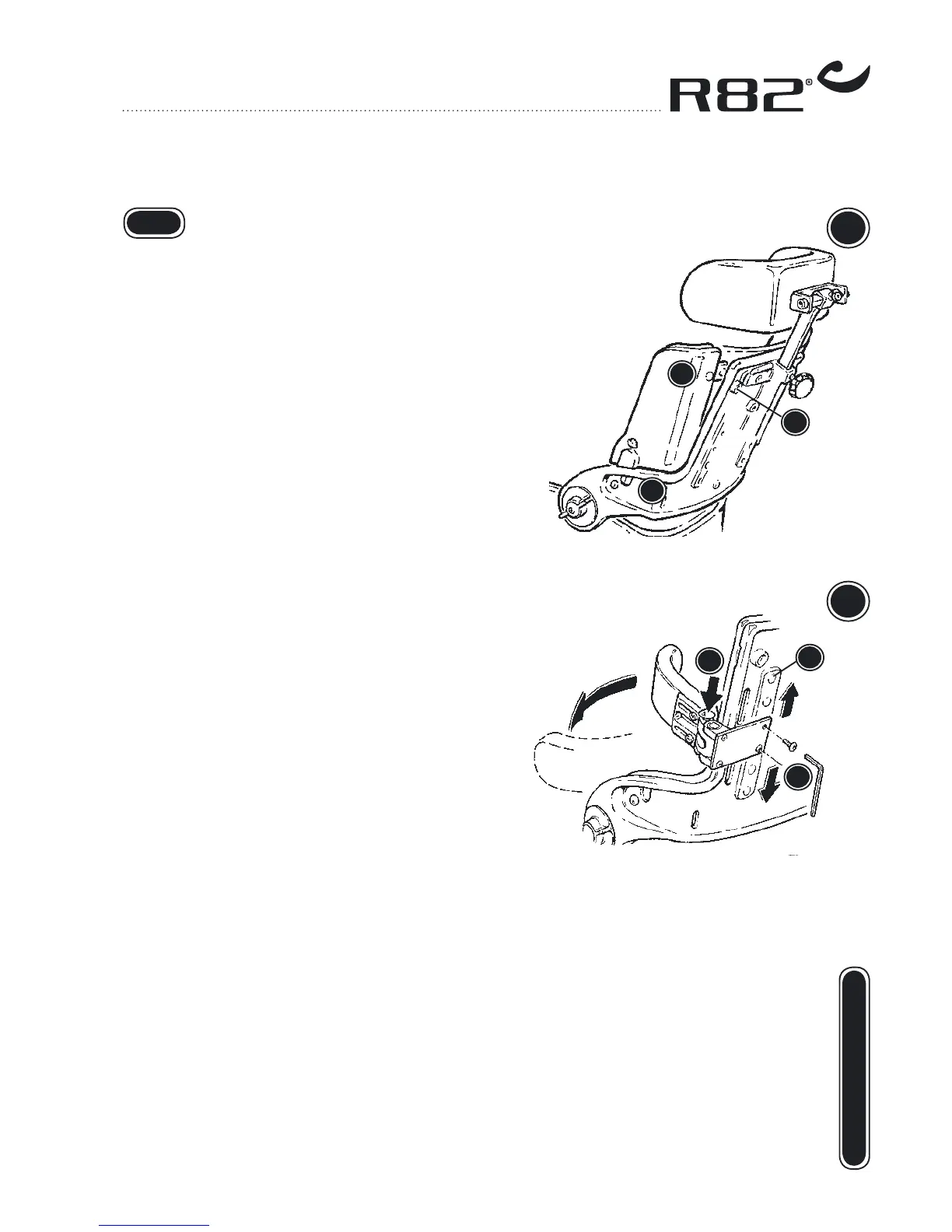

1) Fixed side supports:
Follow the below to mount the side supports
correct:
* Place the side support in the groove as shown
(A)
* Push the side support in place behind the
upholstery (B)
* Fasten the side support with a Allen screw
(C)
Remove the Allen screw to dismount the side
support. Then press on the back and twist the
side support away.
2) Swing-away side supports:
Mount the swing-away side supports in the
holes in the back.
* Dismount the white plugs from the holes (D)
* Place the side support in the wanted height
and fasten with two Allen screws (E)
* Adjust the height by moving the side support
to other holes in the back.
Press down the red nut (F) and the side
support swing away.
