3. SUBSYSTEMS
Chapter 3 describes the principal subsystems for the BL2000.
• Digital I/O
• Relay Outputs
• Serial Communication
• A/D Converter Inputs
• D/A Converter Outputs
• Memory
• External Interrupts

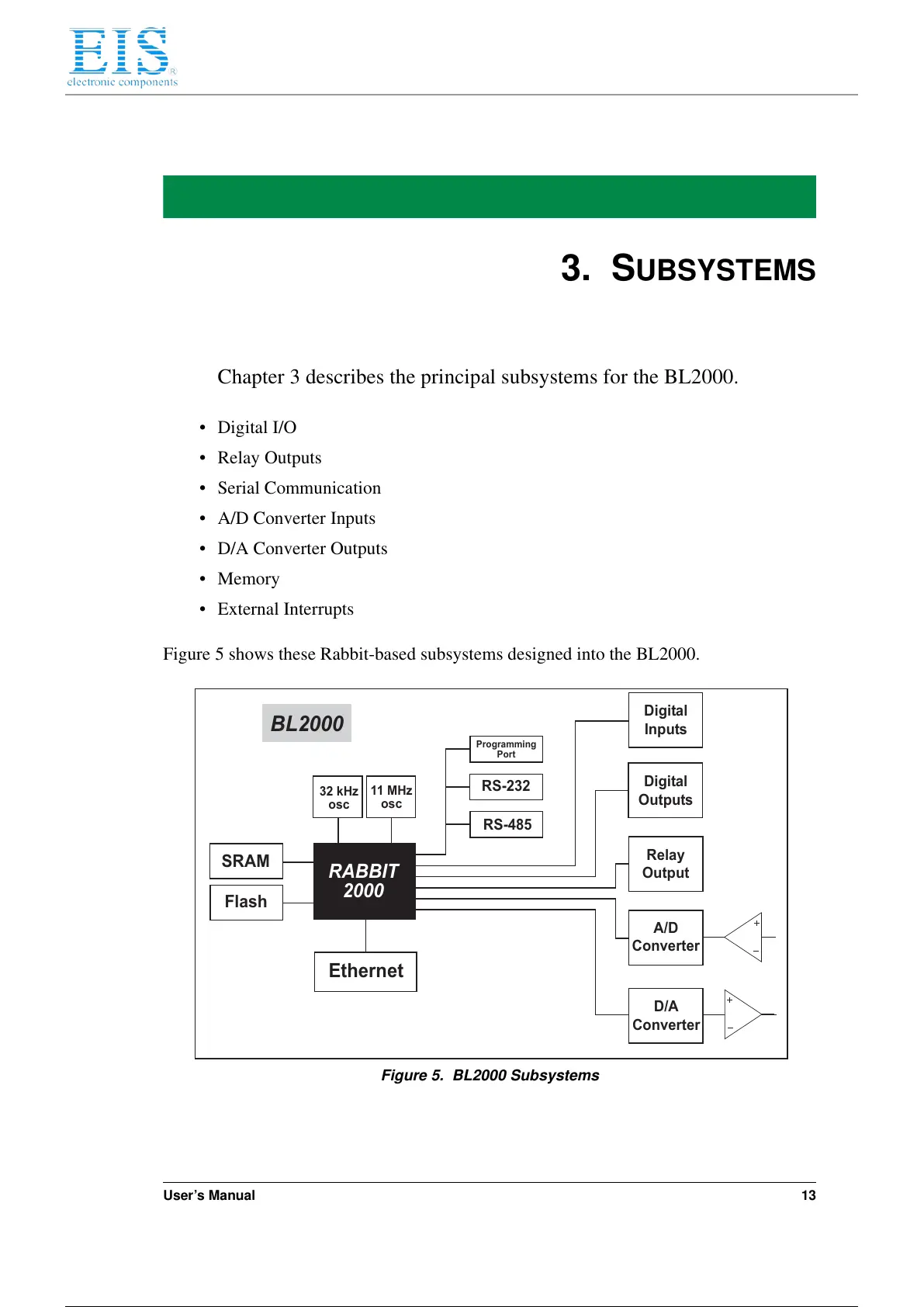

Figure 5 shows these Rabbit-based subsystems designed into the BL2000.
Figure 5. BL2000 Subsystems
SRAM
Flash
11 MHz
osc
32 kHz
osc
BL2000
RABBIT
2000
RS-232
RS-485
A/D
Converter
Digital
Outputs
Relay
Output
Programming
Port
Digital
Inputs
Ethernet
D/A
Converter
