16 Wildcat (BL2000)

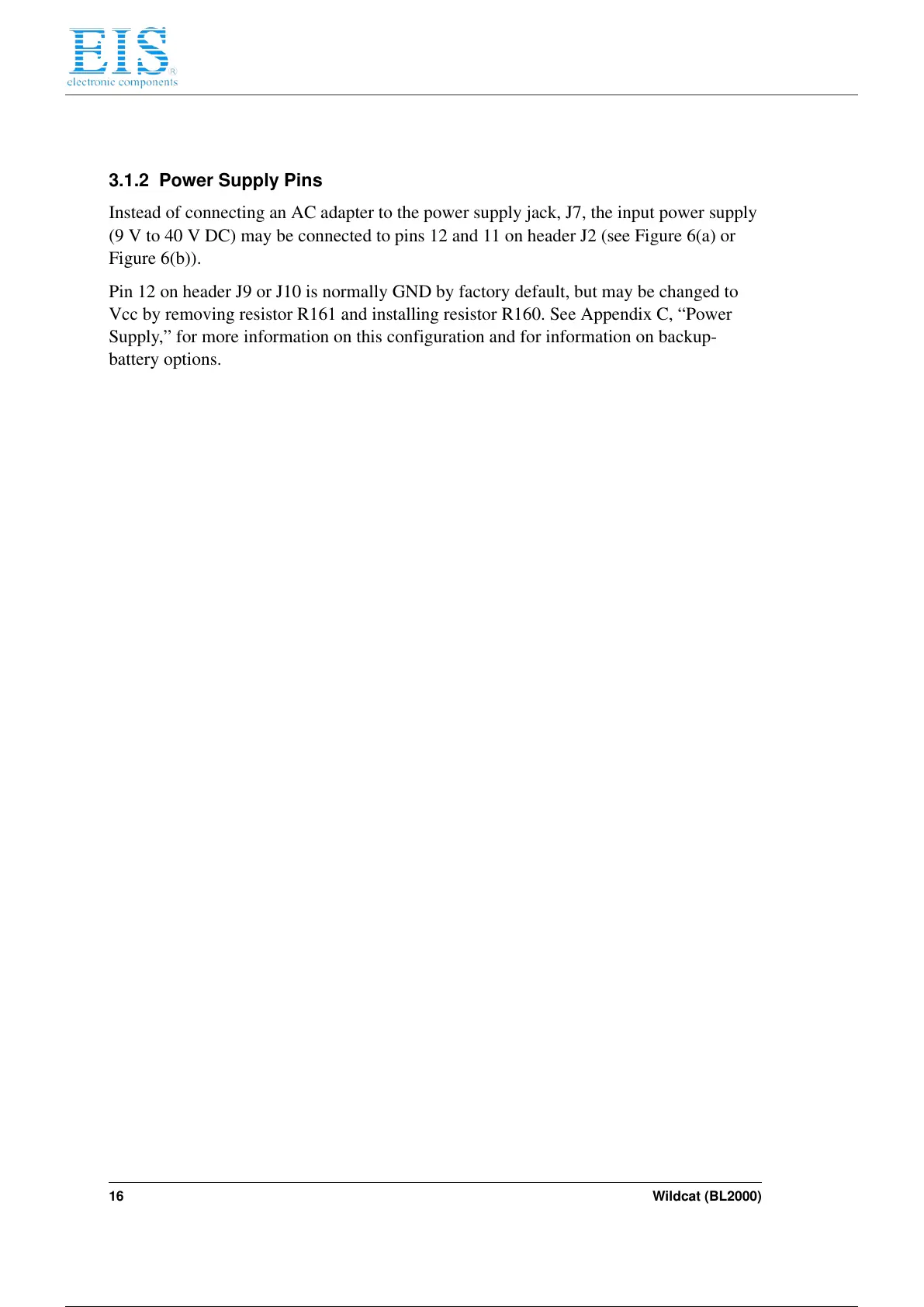

3.1.2 Power Supply Pins
Instead of connecting an AC adapter to the power supply jack, J7, the input power supply
(9 V to 40 V DC) may be connected to pins 12 and 11 on header J2 (see Figure 6(a) or
Figure 6(b)).
Pin 12 on header J9 or J10 is normally GND by factory default, but may be changed to
Vcc by removing resistor R161 and installing resistor R160. See Appendix C, “Power
Supply,” for more information on this configuration and for information on backup-
battery options.
