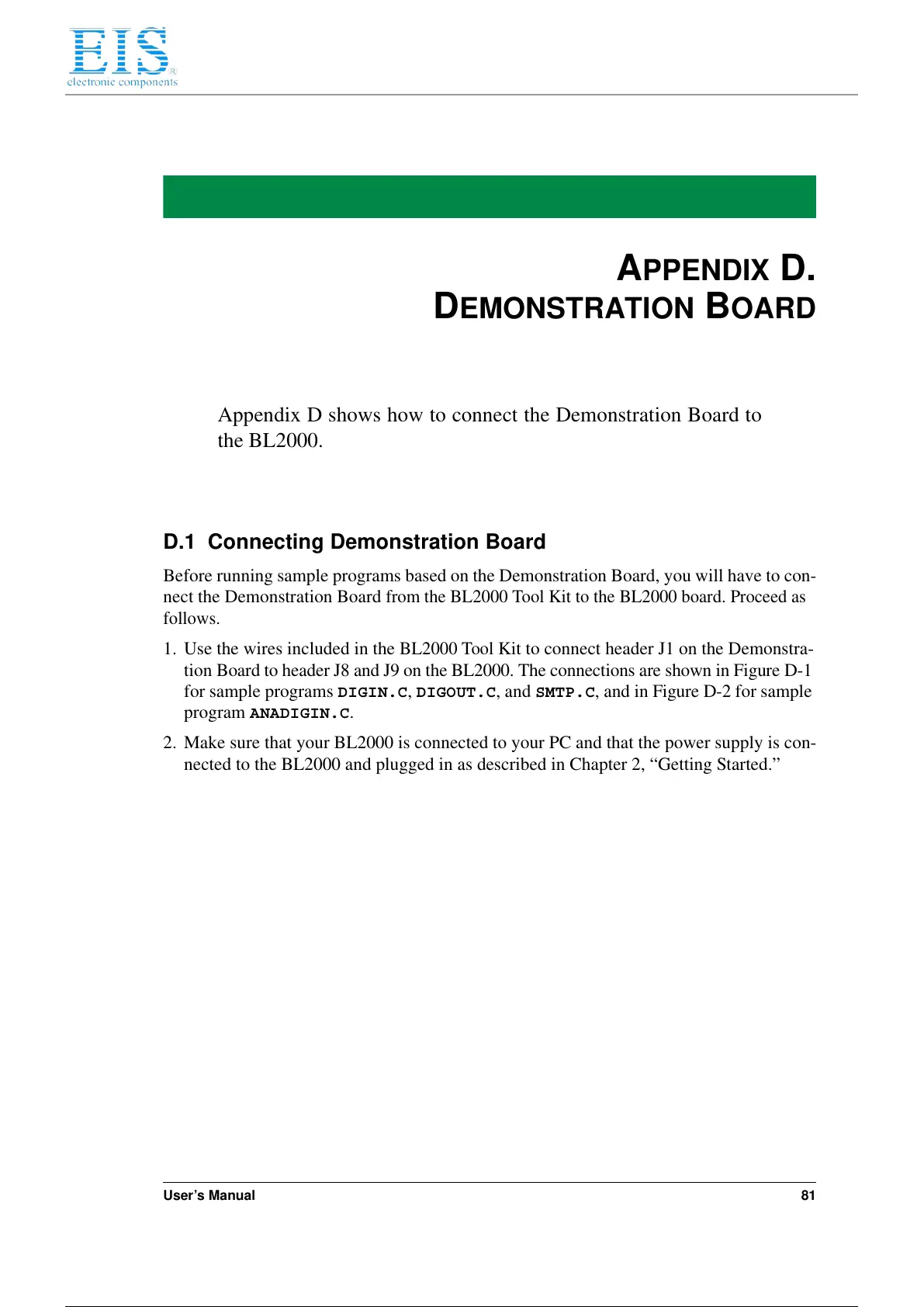

User’s Manual 81
APPENDIX D.
DEMONSTRATION BOARD
Appendix D shows how to connect the Demonstration Board to
the BL2000.
D.1 Connecting Demonstration Board
Before running sample programs based on the Demonstration Board, you will have to con-
nect the Demonstration Board
from the BL2000 Tool Kit to the BL2000 board. Proceed as
follows.
1. Use the wires included in the
BL2000 Tool
Kit to connect header J1 on the Demonstra-
tion
Board to header J8 and J9 on the BL2000. The connections are shown in Figure D-1
for sample programs DIGIN.C, DIGOUT.C, and SMTP.C, and in
Figure D-2
for sample
program ANADIGIN.C.
2. Make sure that your BL2000 is connected to your PC and that the power supply is con-
nected to the BL2000 and plugged in as described in Chapter 2, “Getting Started.”
