62 Wildcat (BL2000)
Timers
Five 8-bit timers (four are cascadable from the first) and
one 10-bit timer with two match registers
Watchdog/Supervisor Yes
Power 9–40 V DC or 24 V AC (±10%), 1.5 W max.
Operating Temperature –40°C to +70°C
Humidity 5–95%, noncondensing
Board Size
3.43" × 4.15" × 0.82"
(87 mm × 105 mm × 21 mm)
* When using the BL2000 in a CE-certified application, the voltages handled by the relay must
not exceed SELV levels (42.4 V AC peak, or 60 V DC).

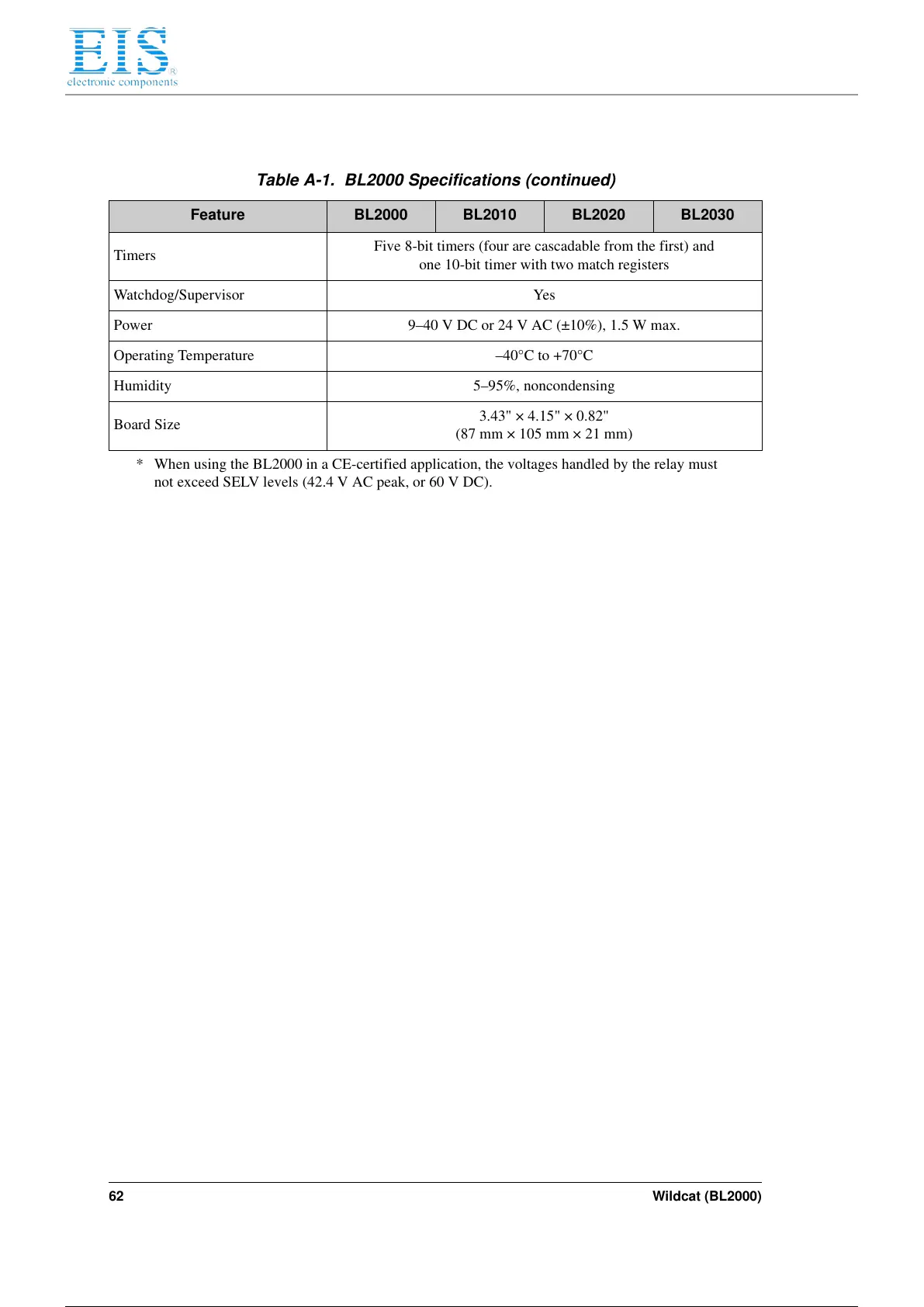

Table A-1. BL2000 Specifications (continued)
Feature BL2000 BL2010 BL2020 BL2030
