35
Figure 4. Installation of safety elements

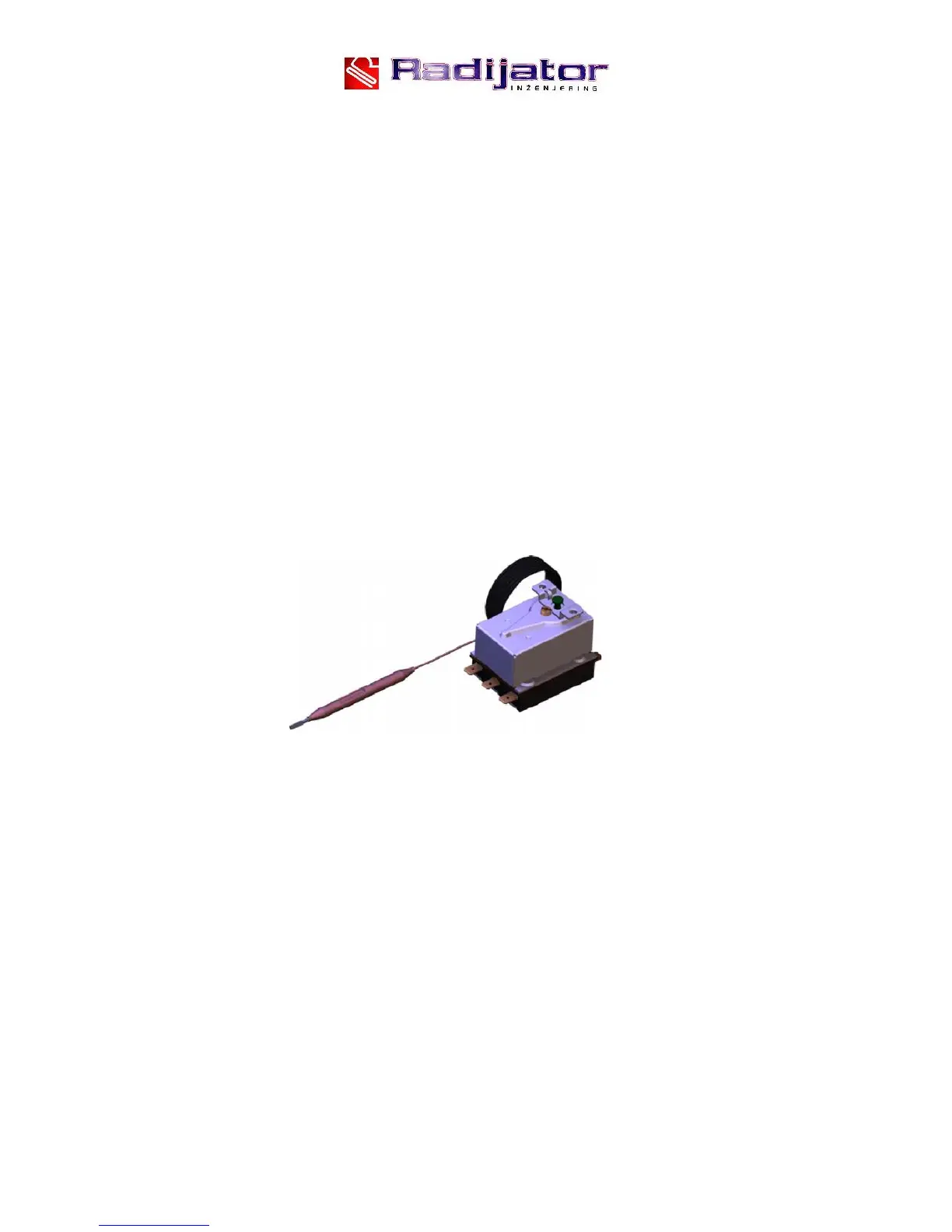

Thermostats in the automation of the boiler (Figure 5)
- Within the automation itself that leads the combustion process and influences the work
of two cycles of heating, there are two termostatats. Both are of similar construction as the
thermostat shown in Figure 6 and they have safety functions as limiters of the temperature
of water in the boiler. Because of the safety role in the functioning of the boiler, both
thermostats have the independent probes for measuring of water temperature. The first
thermostat is the so-called „working thermostat” work and it serves to limit the
temperature to a level the user wants. Another thermostat is the „safety thermostat”
because it stops the opration of the fan which favors the flame, and adds a new energy.
Safety temperature is limited to 95 degrees Celsius.
It is very important to connect the pump for heating through automation for safety
reasons. When the temperature of water in the boiler reaches the critical value of 95
degrees the fan stops working, but the pump is necessarily switched on to exchange
the heat of water through radiators.
Figure 5
