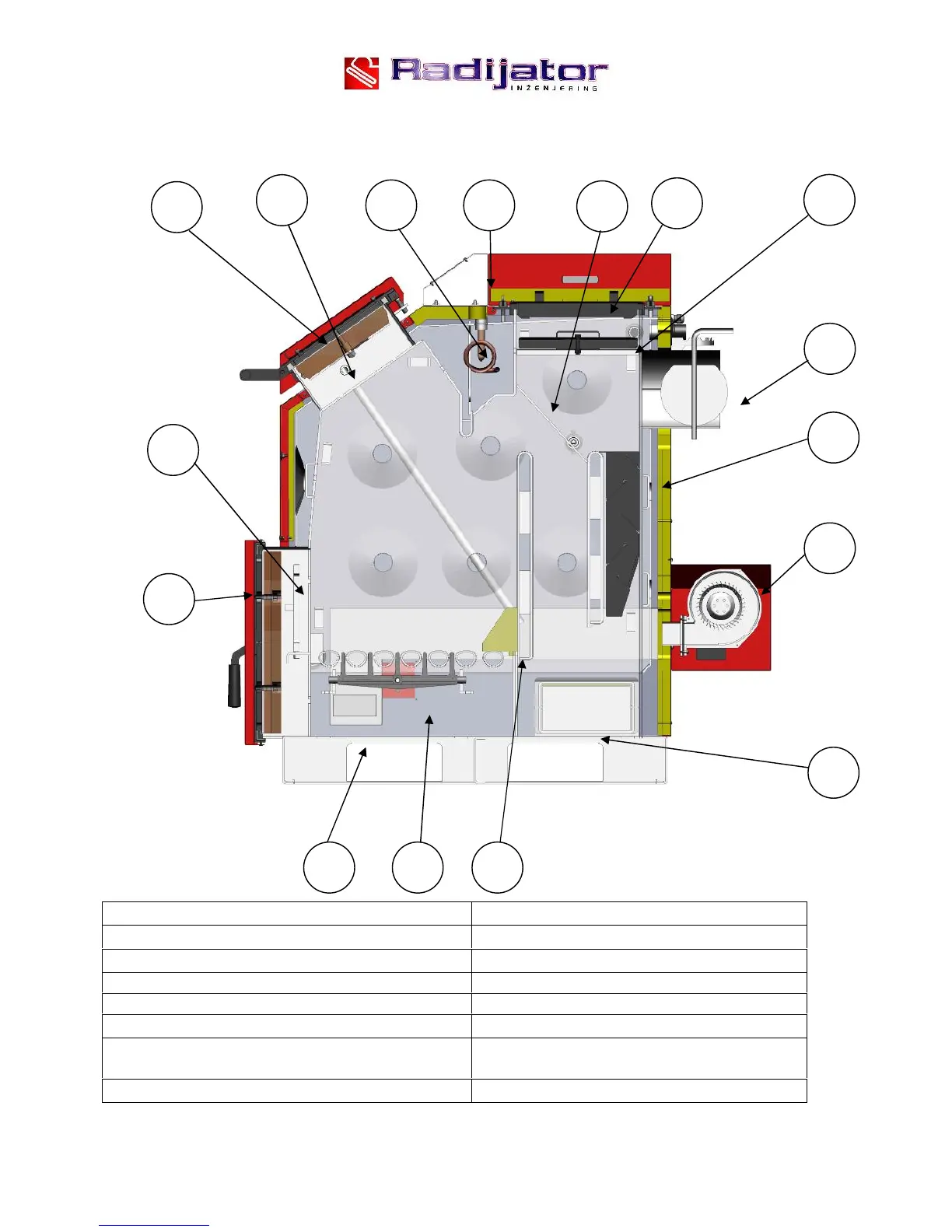

3. Cross-section of FK Boiler with a description of the
boiler elements
1. Upper door for wood loading
9. Brick
2. Lower door for firewood and cleaning
10. Channel to air
3. Door gretting (cost iron gretting)
11. Pipe for secundary air
4. Inside cover for cleaning
12. Turbulators
5. Outside cover for cleaning
13. Fan
6. Lateral lower cover for cleaning
14. Automatic
7. Flap for the working position and the
position of the ignition
15. Copper spiral for thermical security
8. Flap of chimney
16. Cleaner
1
11
14
7
5
4
15
8
12
13
6
9
10
2
3
16
