Radio Shack CCR-81 Operation Manual

Computer Graphics
----------TRS-BO ®
Operation Manual
===========================================================
Options Programming
No.
1
2
3
4
5
6
7
Option
GRAPHICS/ALPHA*
NOT USED
XREG DEC/INC*
YREG DEC/INC*
X
CLK RD*
Y CLK RD*
X CLK WR*
Y CLK WR*
Description
Turns graphics ON and OFF.
"1" turns graphics ON.
Selects whether X decrements
or increments. "1" selects
decrement.
Selects whether Y decrements
or increments. "1" selects
decrement.
If address clocking is
desired, a "B" clocks the X
address up or down AFTER a
Read depending on the status
of BIT 2.
If address clocking is
desired, a "B" clocks the Y
address up or down AFTER a
Read depending on the status
of BIT 3.
A "B" clocks AFTER a Write.
A "B" clocks AFTER a Wiite.
============================================================

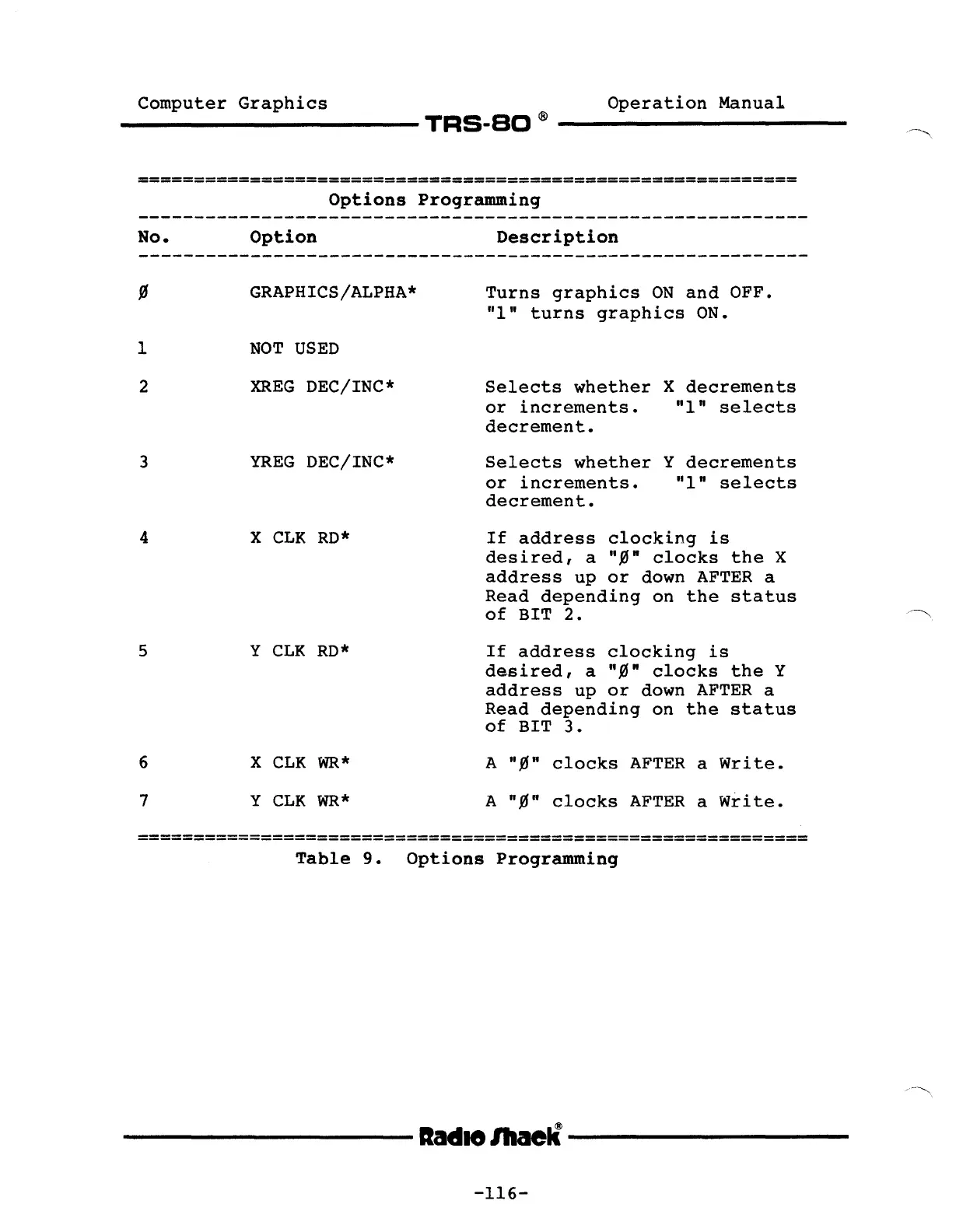

Table 9. Options Programming
---------Itadlelhaell---------
-116-
