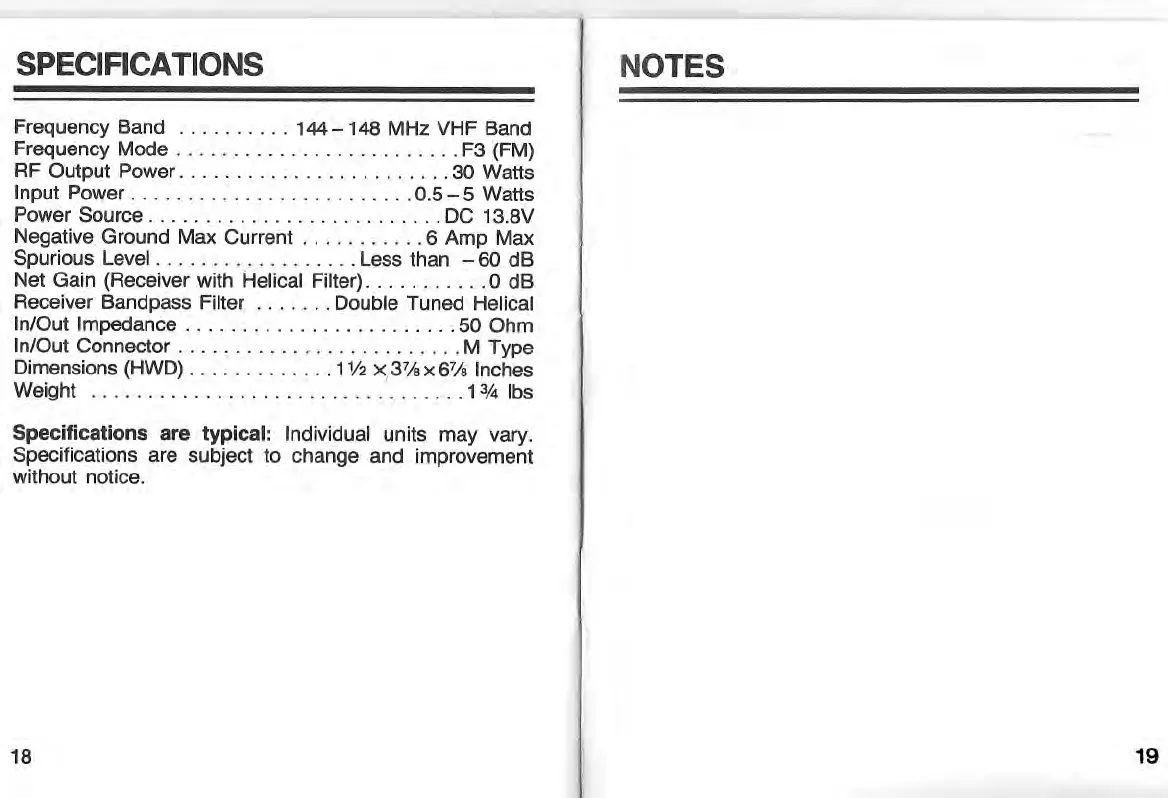

SPECIFICATIONS
Frequency Band 144-148 MHz VHF Band
Frequency Mode F3 (FM)
RF Output Power 30 Watts
Input Power 0.5 - 5 Watts
Power Source DC 13.8V
Negative Ground Max Current 6 Amp Max
Spurious Level Less than - 60 dB
Net Gain (Receiver with Helical Filter) 0 dB
Receiver Bandpass Filter Double Tuned Helical
In/Out Impedance ,50 Ohm
In/Out Connector M Type
Dimensions (HWD) 1V2 x/3% x 6% Inches
Weight 1
3,4 Ibs
Specifications are typical: Individual units may vary.
Specifications are subject to change and improvement
without notice.
18
NOTES
19
