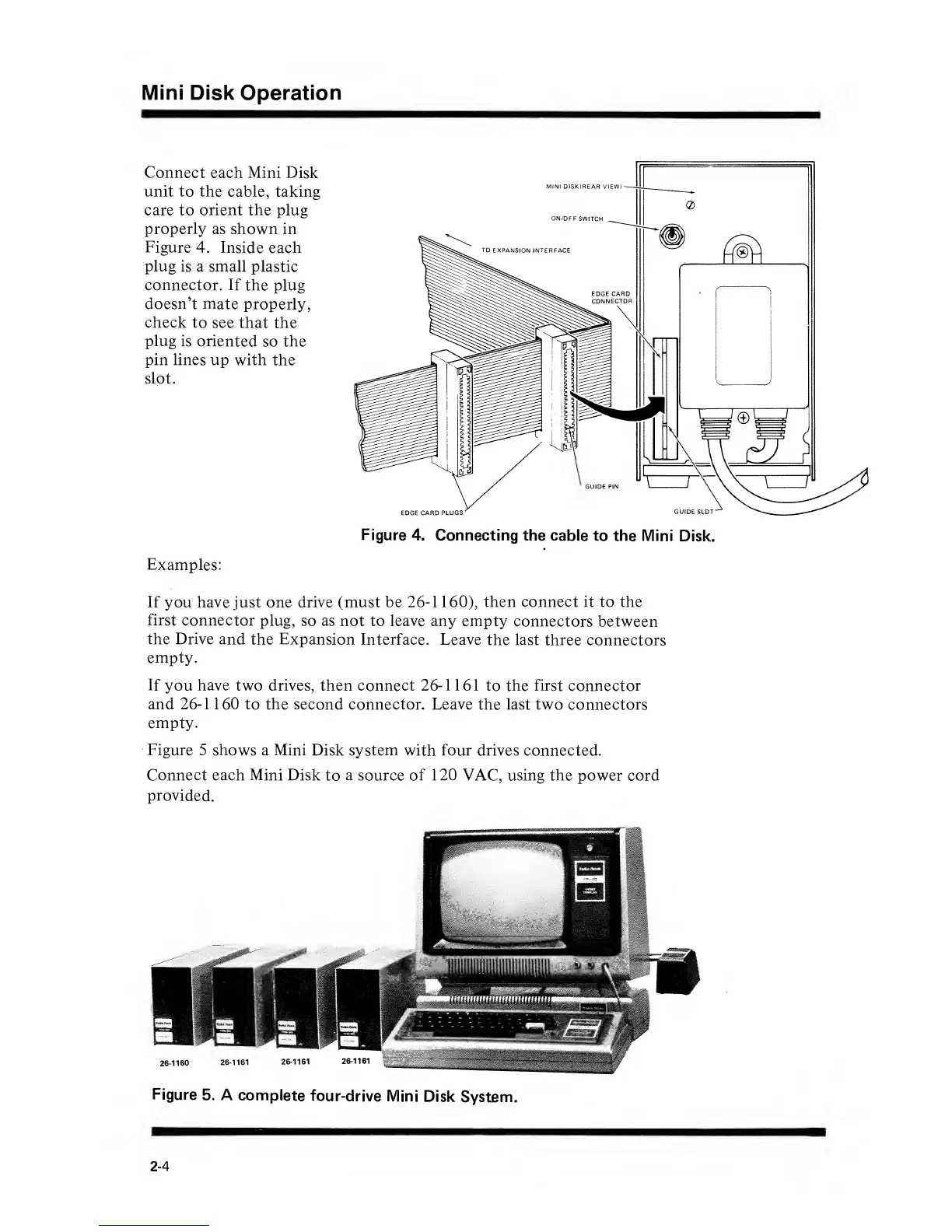

Mini Disk Operation
Connect
each Mini Disk
unit to the cable,
taking
care to
orient the
plug
properly
as shown in
Figure
4. Inside
each
plug
is a small plastic
connector.
If the
plug
doesn't
mate properly,
check to
see that the
plug
is oriented
so
the
pin lines up with
the
slot.
EDGE CARD
PLUGS
GUIDE
SLOT"
Figure
4. Connecting the
cable to
the Mini
Disk.
Examples:
If you have just one drive
(must be
26-1
160),
then connect it to the
first
connector
plug, so as
not to leave any empty
connectors
between
the Drive
and the Expansion
Interface. Leave
the last three
connectors
empty.
If
you
have
two drives, then connect
26-1
161 to the first
connector
and
26-1
160 to the
second connector.
Leave
the last two connectors
empty.
Figure 5 shows
a Mini Disk system with four drives
connected.
Connect each Mini Disk
to
a source of 120 VAC, using the
power cord
provided.
IilflU
?
i
"
'mm
P
i
JB
| lZJHI
26-1160
26-1161
26-1161
26-1161
Figure
5.
A
complete
four-drive
Mini
Disk
System.
-
—
2-4
