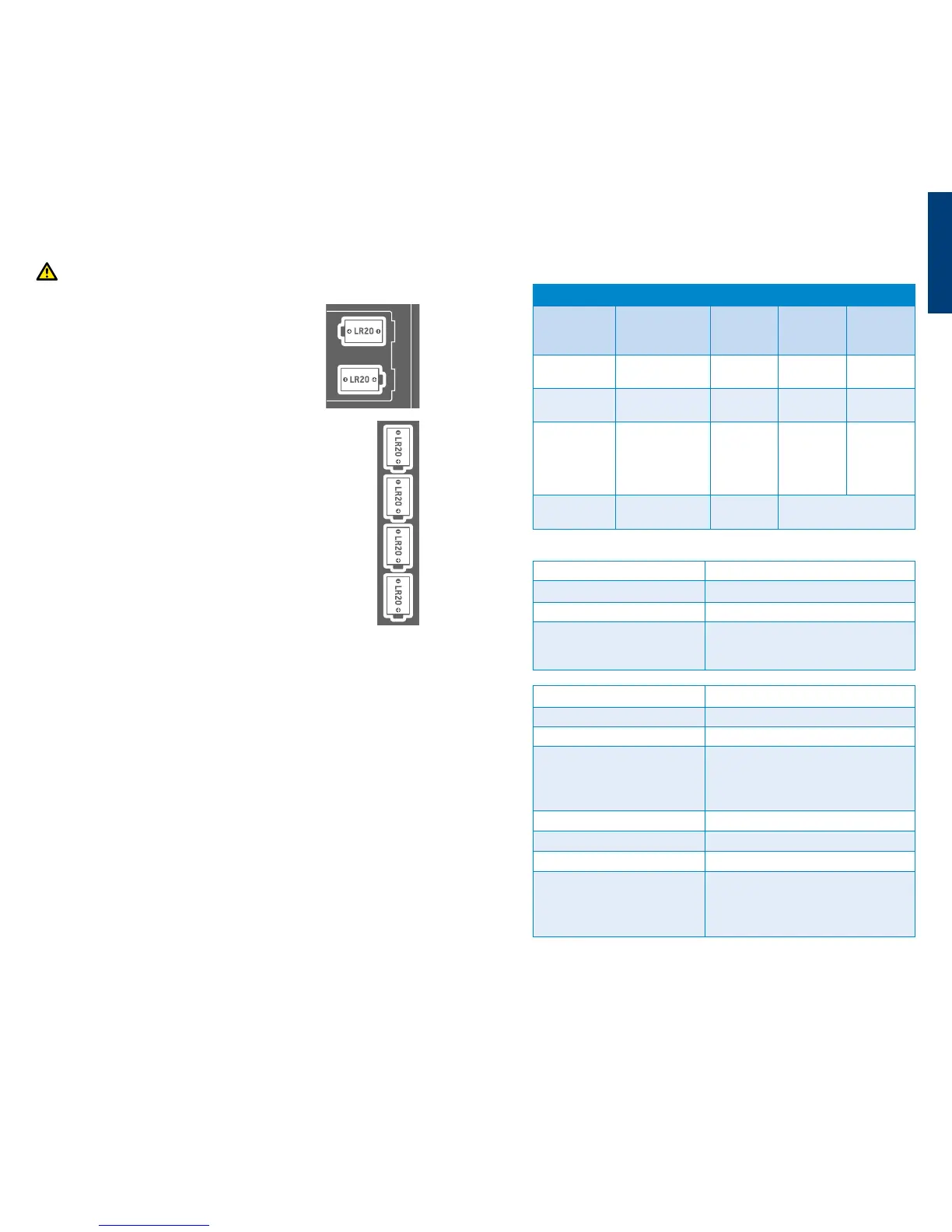

Replacing batteries
Do not mix new and old batteries or different types of
batteries, as this may cause them to overheat.
SuperCAT4+
To replace batteries, open the access cover using
a screwdriver or coin. Use two LR20 (D-cell)
alkaline batteries or equivalent NiMH rechargeable
batteries.
T1
To replace batteries, Unscrew fastener on the rear
panel and replace with four LR20 (D cells) alkaline
batteries. Observe correct battery polarity as indicated
on the top-panel label.
Product specification
Locator Technical Specication
Locate
performance
Frequency
range
Sensitivity
@ 1m
Depth
Good
conditions
Depth
Poor
conditions
Power signals
(P)
50 Hz – 1.5 kHz 3 mA
3 m
2 m
Radio signals
(R)
15 kHz – 30 kHz
25 μA
2 m
1 m
T1 signals (L)
1
512/640 Hz
8 kHz
33 kHz
65 kHz
131 kHz
500 μA
100 μA
5 μA
5 μA
5 μA
4 m
2 m
Sonde (S)
1
512 Hz / 640 Hz /
8 kHz / 33 kHz
N/A
Up to 15 m
Dynamic range 120 dB @ 10 Hz
Dynamic Overload Protection
40 dB @ 50 Hz (automatic)
Locate accuracy ± 10% of depth
Depth accuracy (on undistorted
signal and with no adjacent
signals)
Line: 5% 0.1 m to 3 m (4 in to 10 ft)
Sonde: 5% 0.1 m to 7 m (4 in to 16 ft)
Operating temperature range
-20°C to +50°C (4°F to 122°F)
Storage temperature range -20°C to 70°C (4°F to 158°F)
Environmental protection IP54
Batteries Locator:
2 x Alkaline or NiMH D-cells (LR20)
Transmitter T1:
4 x Alkaline D-cells (LR20)
Data interface
USB 2.0 – for future use
Recommended service interval
1 year
Warranty
12 months from purchase
Unit Weight
Locator:
2.3 kg (5.1 lbs) (including batteries)
Transmitter:
1.7 kg (3,8 lbs) (including batteries)
1
Model dependent
