RadioLink RC3S - Page 19

18
DLY:
Delay amount
CYC:
Cycle speed
TGP:
Operation point
DTY:
Cycle duty ratio
STM:
Steering mixing
-
ABP : Amount of brake returnSets the rate at which
the
ser-vo returns versus trigger oper-ation for brake
release.
When set to 0%, the ABS function is not
performed.
When set to 50%, the servo returns 50%
(1/2)
of the trigger operation amount and when set to
100%,
the servo returns to the neutral position.
-
DLY : DelaySets the delay from brake op-eration to
ABS
operation. When set to 0%, the ABS function is
activated
without any delay. AT 50%, the ABS
function
is activated after a delay of approximately
0.7 second and at 100%, the ABS function is activated after a delay of approximately
1.4 seconds.
-CYC: Pulse speedSets the pulse speed (cycle).The smaller the set value, the faster
thepulse cycle.
- TGP: Trigger pointSets the trigger point at which the ABS function begins to
operate at brake operation.
- DTY: Cycle duty ratioSets the proportion of the time the brakes are applied and the
time the brakes are re-leased by pulse operation. The ratio can be set to +3 ~ 0~ -3in
7 steps.
- STM: Steering mixingSets ABS operation ON/OFF according to the steering
operation range.

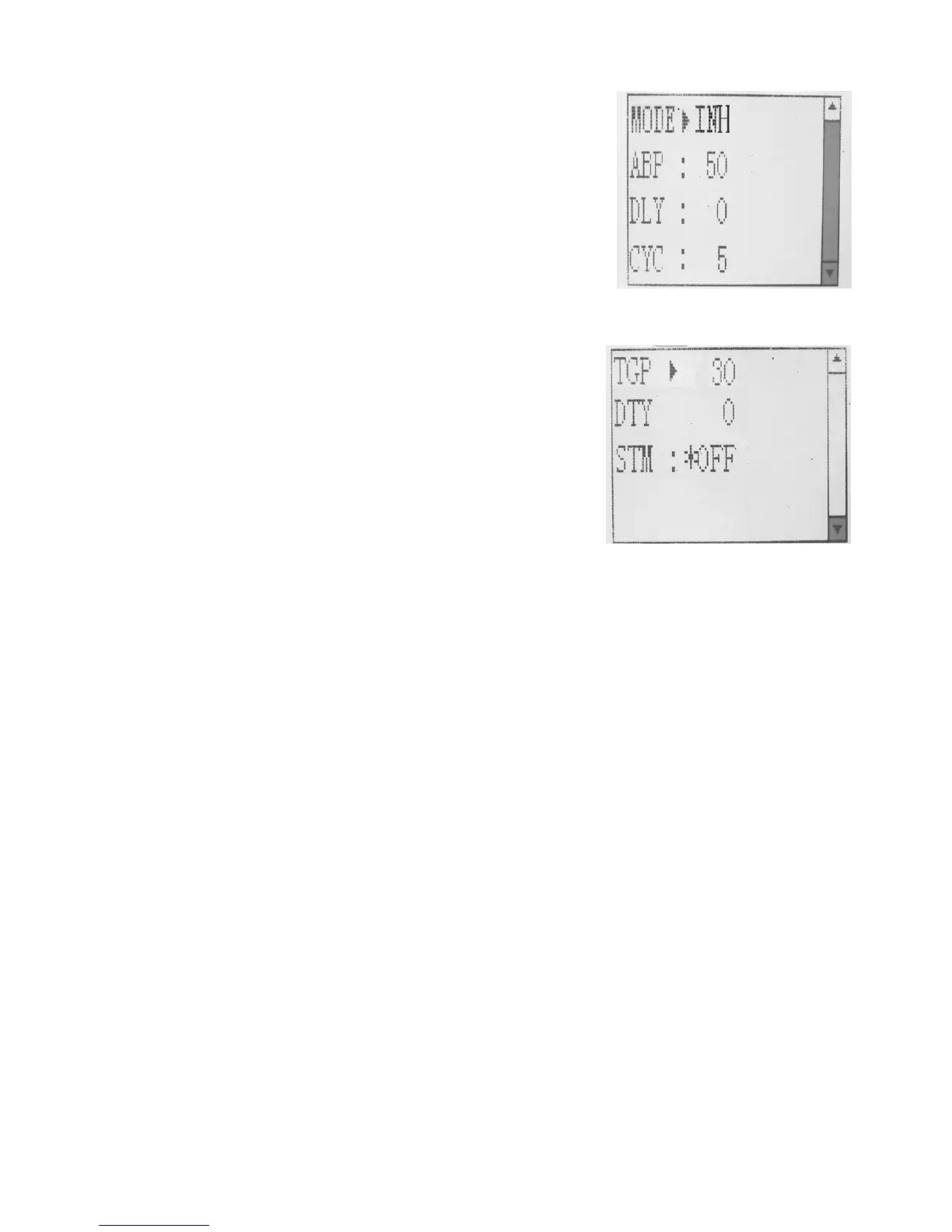

A.B.S function adjustment
Enter the function menu and use “Dec(-)” or “Inc(+)” button to access A.B.S
function,thenpress “Enter” button to get into A.B.S function interface.
1.(Brake return amount adjustment)
