RADLEY RW3200 - User Manual

Questions and Answers

J
James BlackAug 5, 2025
Why won't my RADLEY RW3200 Pressure Washer engine start?
- J
  johnsonnicoleAug 5, 2025
  Your RADLEY Pressure Washer's engine might not start due to several reasons. It could be due to: * No gasoline: Add fuel. * Low engine oil: Add engine oil. * Incorrect choke position: Move the choke to the Start position. * Water pressure build-up: Squeeze the trigger after each failed recoil start to release the pressure. * Disconnected spark plug cap: Connect the spark plug cap. * Fouled spark plug: Replace the spark plug.
P
Peter HensonAug 10, 2025
What to do if my RADLEY Pressure Washer has inconsistent pressure?
- N
  nashjonathanAug 10, 2025
  If your RADLEY Pressure Washer has inconsistent or low pressure during use, it could be due to several reasons: * A restricted water supply: Inspect the garden hose for kinks, leaks, or blockages. * Water supply not turned on fully: Open the water supply tap all the way. * Clogged Nozzle: Clean the nozzle. * Spray gun leaks: Check all connections and use sealant tape if necessary. * Air in the line: Squeeze the trigger handle to remove air in the line. * Clogged inlet hose screen: Clean the inlet filter in warm water. * Water supply temperature is too high: Use a cool water supply (below 104°F).
D
Devin FullerAug 14, 2025
Why is my RADLEY RW3200 not reaching high pressure?
- B
  Brent StricklandAug 15, 2025
  If your RADLEY Pressure Washer is not reaching high pressure, consider the following possible causes: * The low-pressure black detergent nozzle is attached: Remove it and attach a high-pressure nozzle. * Low water supply: Ensure the water supply is at least 5.0 GPM @ 30 PSI from a 1/2" diameter hose minimum. * Restricted water supply: Check the hose for leaks, kinks, or blockages, and ensure the tap is fully open. * Clogged water inlet filter: Remove the filter and rinse it in warm water before reinstalling. * Obstructed nozzle: See nozzle cleaning instructions. * High-pressure hose is too long: Use a maximum high-pressure hose of 100 feet (30m).
P
Patricia BuckAug 19, 2025
Why does my RADLEY RW3200 Pressure Washer engine lack power and vibrate a lot?
- J
  Jasmine GrantAug 19, 2025
  If your RADLEY Pressure Washer engine lacks power and vibrates excessively, it could be due to: * The choke being in the Start position: Move the choke to the Run position. * A dirty air filter: Clean the air filter.
J
Jeffrey WilsonAug 25, 2025
What to do if detergent doesn't mix with water in my RADLEY RW3200 Pressure Washer?
- T
  Timothy LewisAug 25, 2025
  If the detergent is not mixing with water in your RADLEY Pressure Washer, here are a few things to check: * Ensure the spray wand is set to low pressure by attaching the black low-pressure nozzle. * Make sure the chemical screen is fully submerged in the cleaning solution. * If the chemical is too thick, dilute it to achieve a consistency similar to water.
C
christopherpetersAug 30, 2025
Why is my RADLEY Pressure Washer leaking water at the spray wand?
- B
  Brittany SparksAug 30, 2025
  If your RADLEY Pressure Washer is leaking water at the spray wand connection, it could be due to loose connections. Try tightening them. Alternatively, the spray wand o-ring might be worn and need replacement.

Summary

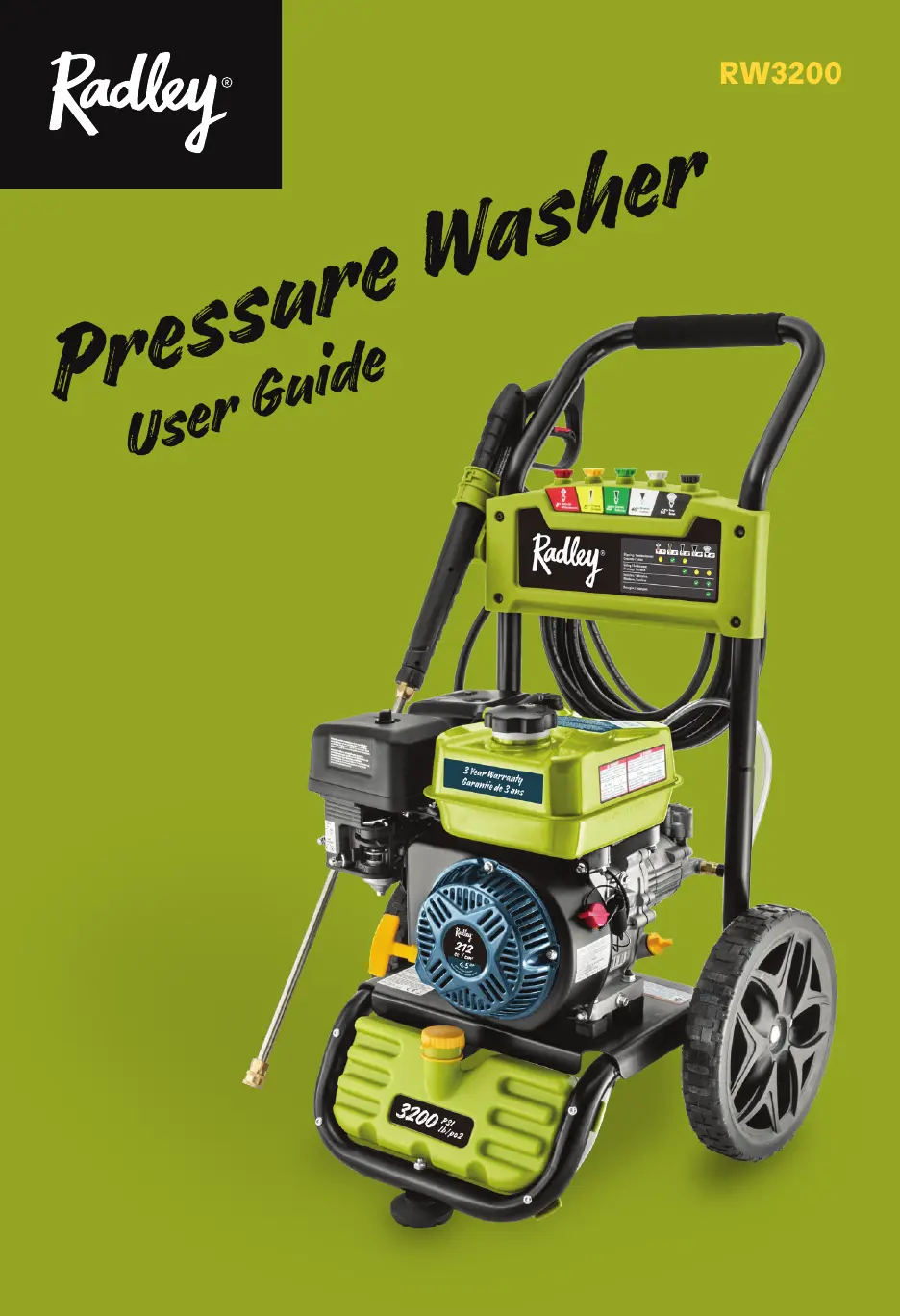

Radley Pressure Washer User Guide RW3200

Warranty Information and Support

Safety Precautions

Operator Safety Guidelines

Essential safety rules for operating the pressure washer to prevent injury or damage.

Safe Usage Practices

Guidelines on how to safely operate the pressure washer, avoiding hazards like electric shock and fluid injection.

Maintenance Safety Procedures

Crucial safety measures to follow before, during, and after performing maintenance on the pressure washer.

Additional Safety Tips

Important advice on handling exhaust fumes, vibration, and damaged parts to ensure safe operation.

Understanding Your Pressure Washer

Component Identification

Identifies and labels all key parts of the pressure washer for user familiarity.

Assembly Instructions

Step-by-step guide for assembling the pressure washer wheels and foot.

Handle and Spray Gun Holder Assembly

Instructions for attaching the handle and the spray gun holder to the pressure washer unit.

Pre-Operation Checks

Air Filter Preparation

Guide on how to inspect and clean the air filter before operating the pressure washer.

Adding Engine Oil

Detailed steps for checking and filling the engine oil level, including capacity and oil type recommendations.

Adding Fuel

Instructions for safely refueling the pressure washer, including fuel type and quantity guidelines.

Cold Water Supply Check

Ensuring proper water supply, including hose diameter, flow rate, and temperature for optimal operation.

Spray Wand and Hose Assembly

Steps for connecting the spray wand to the trigger handle and the high pressure hose to the spray gun.

High Pressure Hose Connection

Guide on how to properly attach the high pressure hose to the pressure washer pump outlet.

Water Supply Hose Connection

Instructions for connecting the garden hose to the pressure washer, including filter checks and air bleeding.

Starting the Pressure Washer

Recoil Engine Start Procedure

Step-by-step instructions for starting the pressure washer engine using the recoil starter.

Stopping the Pressure Washer

Instructions for normal shutdown and emergency stopping procedures for the pressure washer.

Pressure Washer Operation

Using the Spray Wand

How to operate the spray wand, including engaging the safety and triggering the water flow.

Using Spray Nozzles

Guide on selecting and connecting the correct spray nozzle for different cleaning tasks.

Working with Detergents

Instructions on how to apply detergents using the pressure washer, including dilution and cleaning.

Detergent Dilution Ratios

Explains how to calculate and achieve the correct dilution ratio for detergents.

High Altitude Carburetor Adjustment

Guidance on adjusting the carburetor for optimal performance at high altitudes and consequences for low altitudes.

Maintenance Procedures

General Inspection Tips

Basic checks to perform regularly for safe and efficient operation, including leak detection and oil levels.

Maintenance Schedule

Recommended maintenance intervals for checking engine oil, air filter, spark plug, and other components.

Changing Engine Oil

Detailed steps for draining and refilling the engine oil, including oil capacity and type.

Pump Oil Information

Notes that the pump is sealed and does not require oil addition or changes.

Cleaning the Air Filter

Instructions for cleaning both paper and foam air filter elements to maintain engine performance.

Nozzle Cleaning

Procedure for detaching and cleaning spray nozzles to remove blockages.

Water Inlet Filter Cleaning

Guidance on periodically checking and cleaning the water inlet filter.

Spark Plug Service

Instructions for checking, cleaning, and replacing the spark plug, including gap specifications.

Spark Arrester Maintenance

Steps for removing and cleaning the spark arrester to prevent carbon buildup and ensure proper function.

Fuel Filter Maintenance

Procedure for removing, cleaning, and reinserting the fuel filter.

Emission Control System

Information regarding emission sources, regulations, and prohibited modifications.

Troubleshooting Common Issues

Technical Specifications

Limited Warranty Information

Limited Warranty Periods

Details warranty coverage duration for recreational, residential, and commercial use.

Limitation of Remedies and Disclaimers

Legal disclaimers regarding Midland Power Inc.'s responsibility for damages and implied warranties.

Warranty Exclusions

Lists specific conditions and damages that are not covered under the product's limited warranty.

Warranty Rights and Obligations

Explains the warranty coverage for emission control systems in California and other regions.

Emission Control System Parts

Lists parts covered under the emission control system warranty, distinguishing between Midland Power Inc. and manufacturer parts.

Warranty Claim Procedure

Steps for initiating a warranty claim, including contacting support and product registration.

Product Registration

Instructions on how to register the product online or via email for support and warranty coverage.

Customer Service Contact

Provides contact information for online support, email, and phone assistance.

RADLEY RW3200 Specifications

General

Brand	RADLEY
Model	RW3200
Category	Pressure Washer
Language	English
