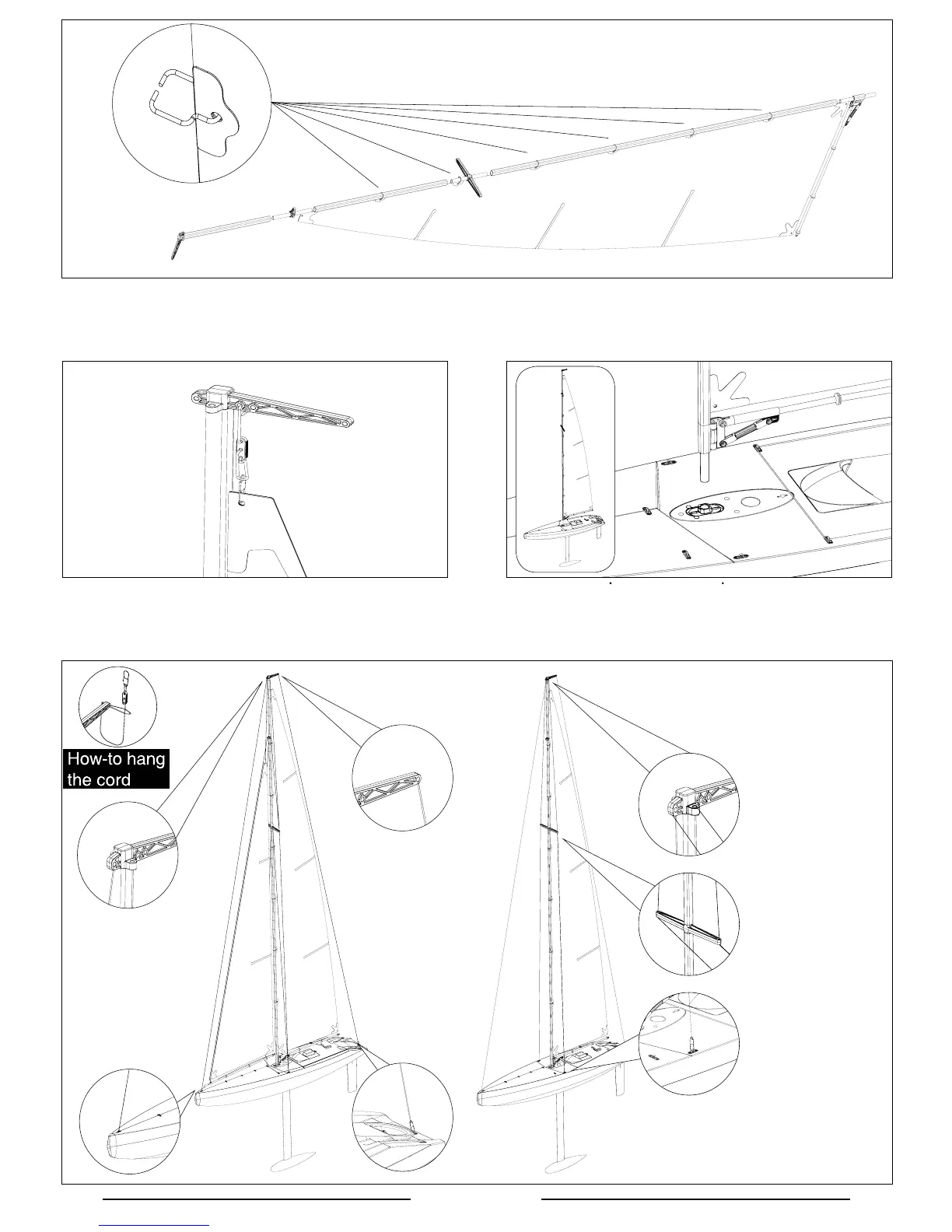

7. Insert the installed mast into the hull.
The Eclipse should now look the above left
image.
5/14
5. Connect backstay crane, forestay crane, short mast, shrouds cross, long mast and the
pre-installed main sail and boom in the order shown above. Make sure to slide the sail onto the
masts using the 6 luff rings.
6. Hang the main sail on the backstay crane
by the pre-rigged cord.
8. Take cord “A”
from storage
board, hang it on
the forestay. Clip
the clevis to the
front eyelet on the
deck.
9. Take cord “B”
from storage
board, hang it on
the backstay. Clip
the clevis to the
rear eyelet on the
deck.
10.1. Take cord
“L1” from storage
board, hang it on
the port side of
the backstay
crane.
10.2. Lead the
cord through the
shrouds cross
10.3. Clip the
clevis to the
eyelet on port
deck.
10.4. Repeat steps 10.1-10.3
to hang the cord “R1” on the
starboard side.
