14
CP-075-P
CP-100-P
EV-100
CP-075
CP-100

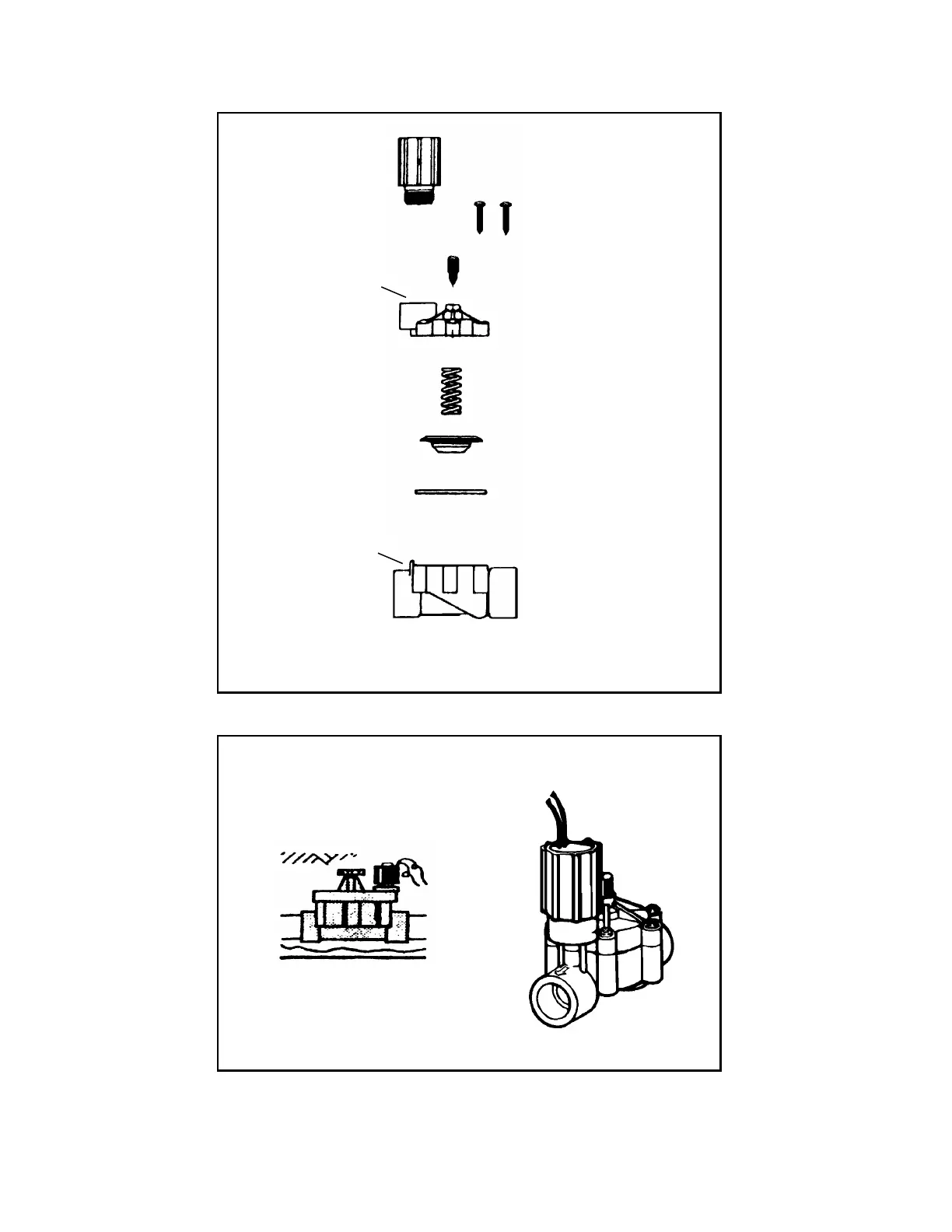

VALVE PARTS
If you need further assistance, or other advice on installation,
contact our customer service team at 1-800-RAIN-BIRD.
SOLENOID
BONNET SCREWS
BLEED SCREW
BONNET
DIAPHRAGM KIT
•Spring
•Diaphragm*
•Body Seal*
*May be combined as
one piece.
VALVE BODY
BLEED PORT
BLEED PORT
INSURE QUALITY - USE ONLY GENUINE RAIN BIRD PARTS
