29
H1
H108
H1
H108
50
29
49
29
H1
H108
76
H1
H108
28
76
H108
H1
78
29
49
78
75
75
A
DETAIL A
49
29
76
28
TOPS FLUSH
*NOTE: Pre-drill all holes for Lag Bolts with appropriate drill bit.

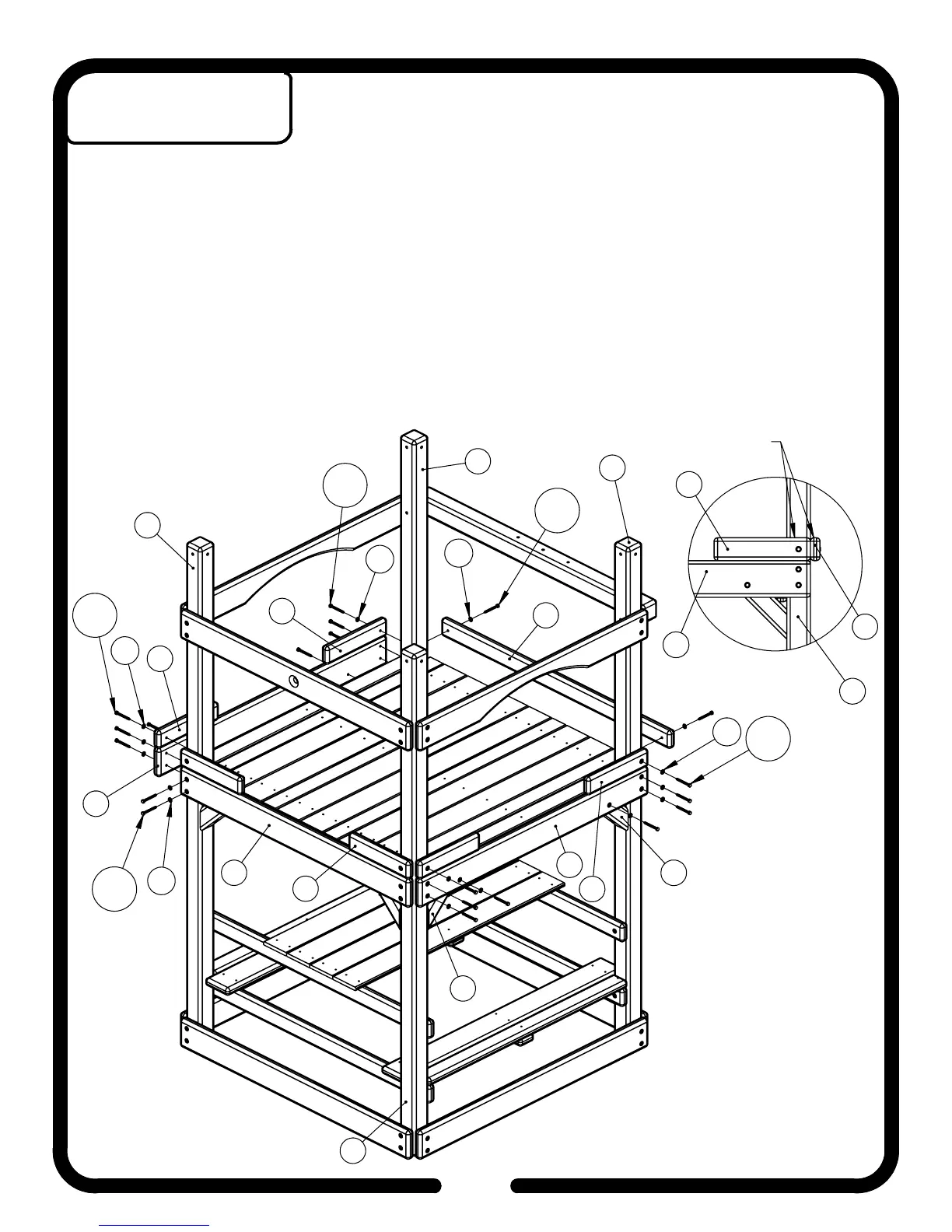

1. Attach 4 Hole Facia
(50)
and Main Beams
(49)
to Corner Uprights
(75) (76)
using 5/16" Hardware
(H108)
and 1/4" Hardware
(H1)
. The tops of the Facias
(50)
and Main Beams
(49)
should be flush
with the tops of the Deck Boards.
*NOTE: Main Beams (49) must be oriented with the offset counter-sunk holes down.
2. Attach Main Beams
(49)
to Angled Braces
(78)
using 5/16" Hardware
(H108)
and 1/4" Hardware
(H1)
.
3. Attach Corner Facias
(29)
to Corner Uprights
(75) (76)
using 5/16" Hardware
(H108)
and 1/4"
Hardware
(H1)
. Corner Facias
(29)
should rest on top of 4 Hole Facia
(50)
and Main Beams
(49)
.
4. Attach 2 Hole Facia
(28)
to Corner Uprights
(76)
using 5/16" Hardware
(H108)
and 1/4" Hardware
(H1)
. The top of the 2 Hole Facia
(28)
should be flush with the tops of the Corner Facias
(29)
(as
shown in Detail A).
24
Step 7
Facia Installation
