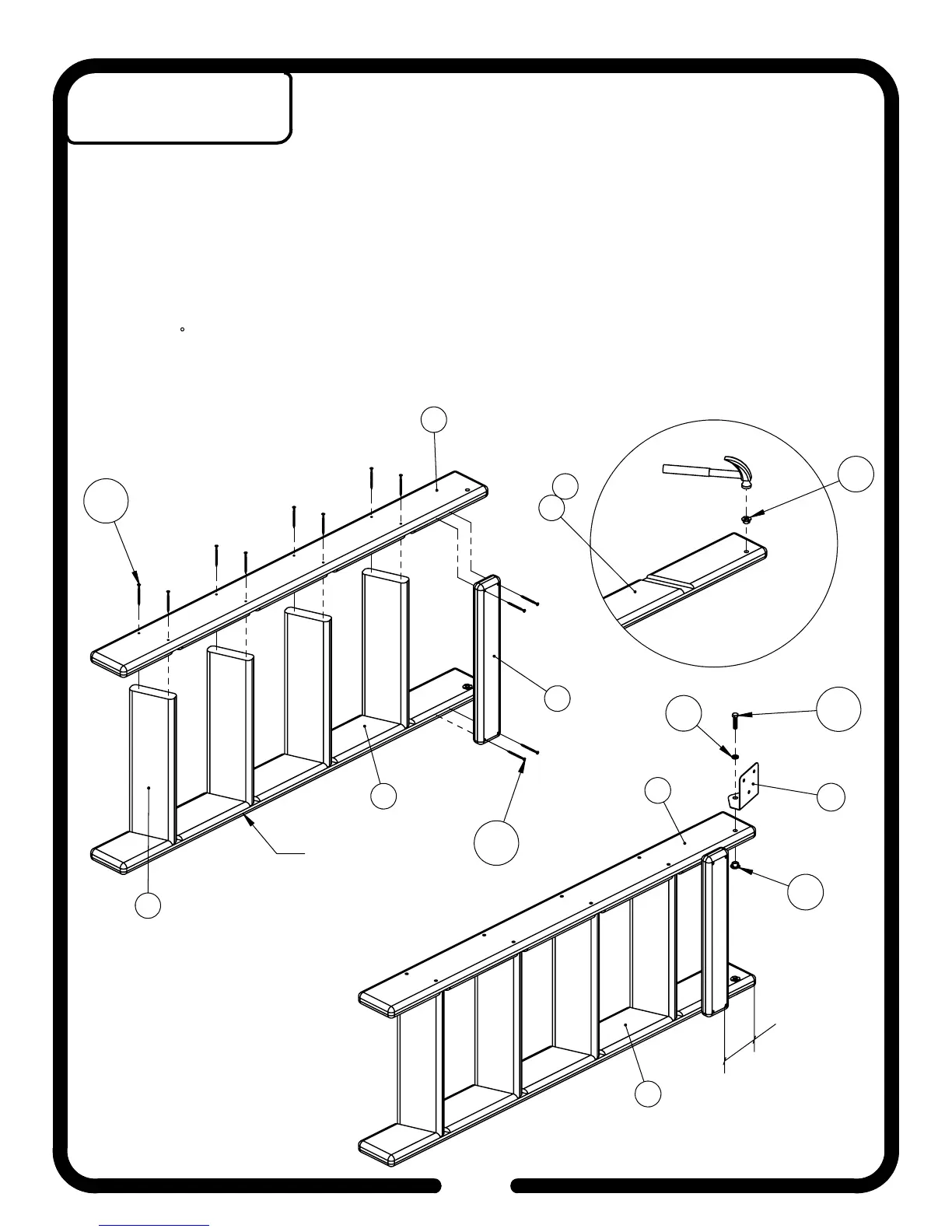

1. Place Left Ladder Leg
(54)
and Right Ladder Leg
(55)
on a flat surface with the notches facing up.
Insert 3/8" Hardware
(H34)
into holes in Ladder Legs, using a hammer if needed (as shown in
Inset A).
2. Attach Ladder Steps
(56)
to Left Ladder Leg
(54)
and Right Ladder Leg
(55)
using #8 Hardware
(H155)
.
3. Attach Entrapment Board
(33)
to the BACK side of the ladder,
5 1/2"
down from the top of the
Ladder Legs
(54) (55)
using #8 Hardware
(H155)
.
*NOTE: The back side of the ladder is the side closest to the holes in the Ladder Legs.
4. Attach 90
Ladder Brackets
(N9)
to the Ladder Legs
(54) (55)
using 3/8" Hardware
(H11) (H124)
(H34)
.
*NOTE: Do not tighten Ladder Bracket hardware at this time.
26
Step 9
Ladder Assembly
