Rainbow Funhouse - Page 28

A
N9
H164
49
H164
N9

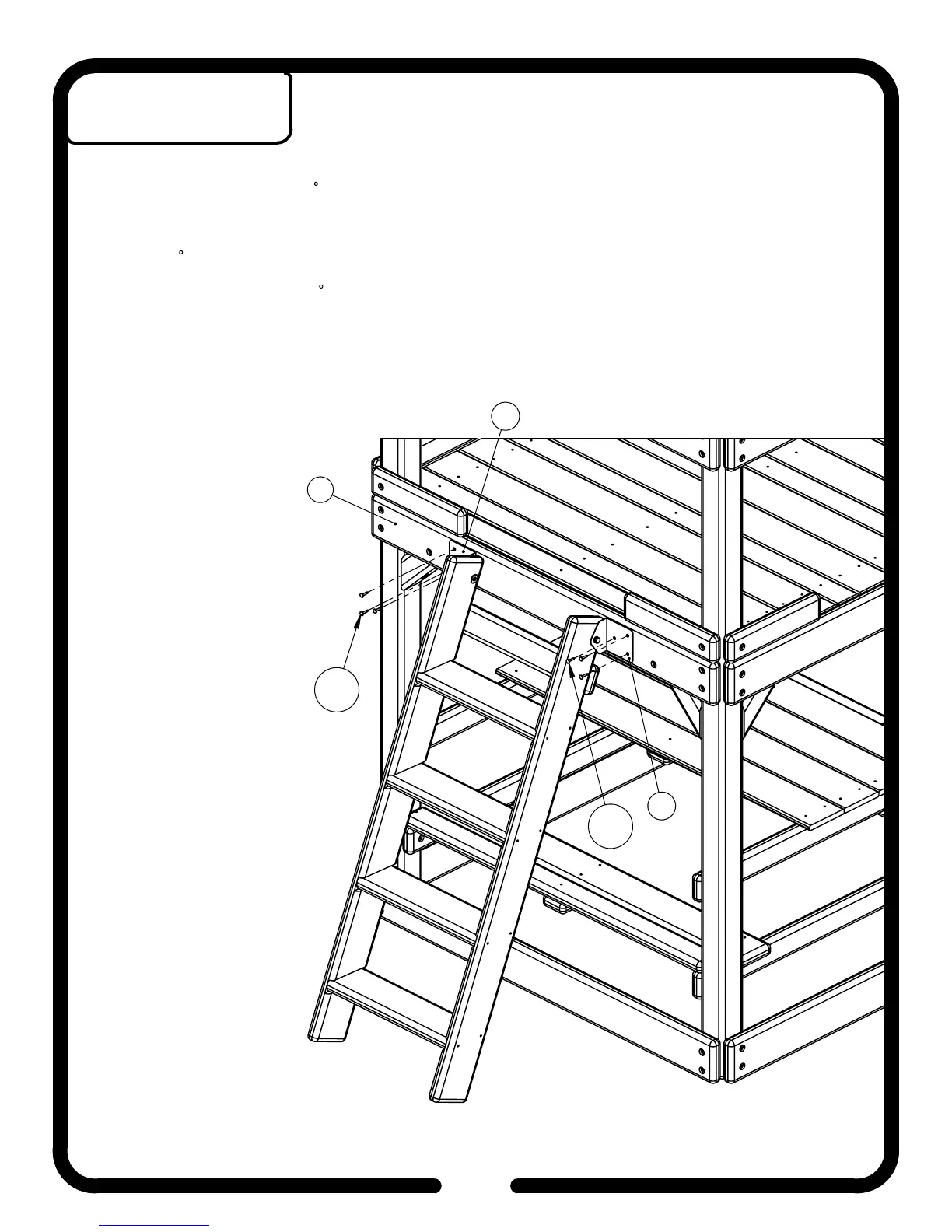

1. Position Ladder Assembly against Main Beam (49) . Ladder should be centered horizontally on
the Main Beam (49) and 90
Ladder Brackets (N9) should be centered vertically on the Facia.
*NOTE: Pre-drill holes for #14 Hardware (H164) with a 1/8" drill bit.
2. Attach 90 Ladder Brackets (N9) to Main Beam (49) using #14 Hardware (H164) .
3. Tighten 3/8" Hardware in 90 Ladder Bracket (N9) at this time.
27
Step 10
Ladder Installation
