D
E
F
N14
N30
N18
N30
N12
N17
N13
N30

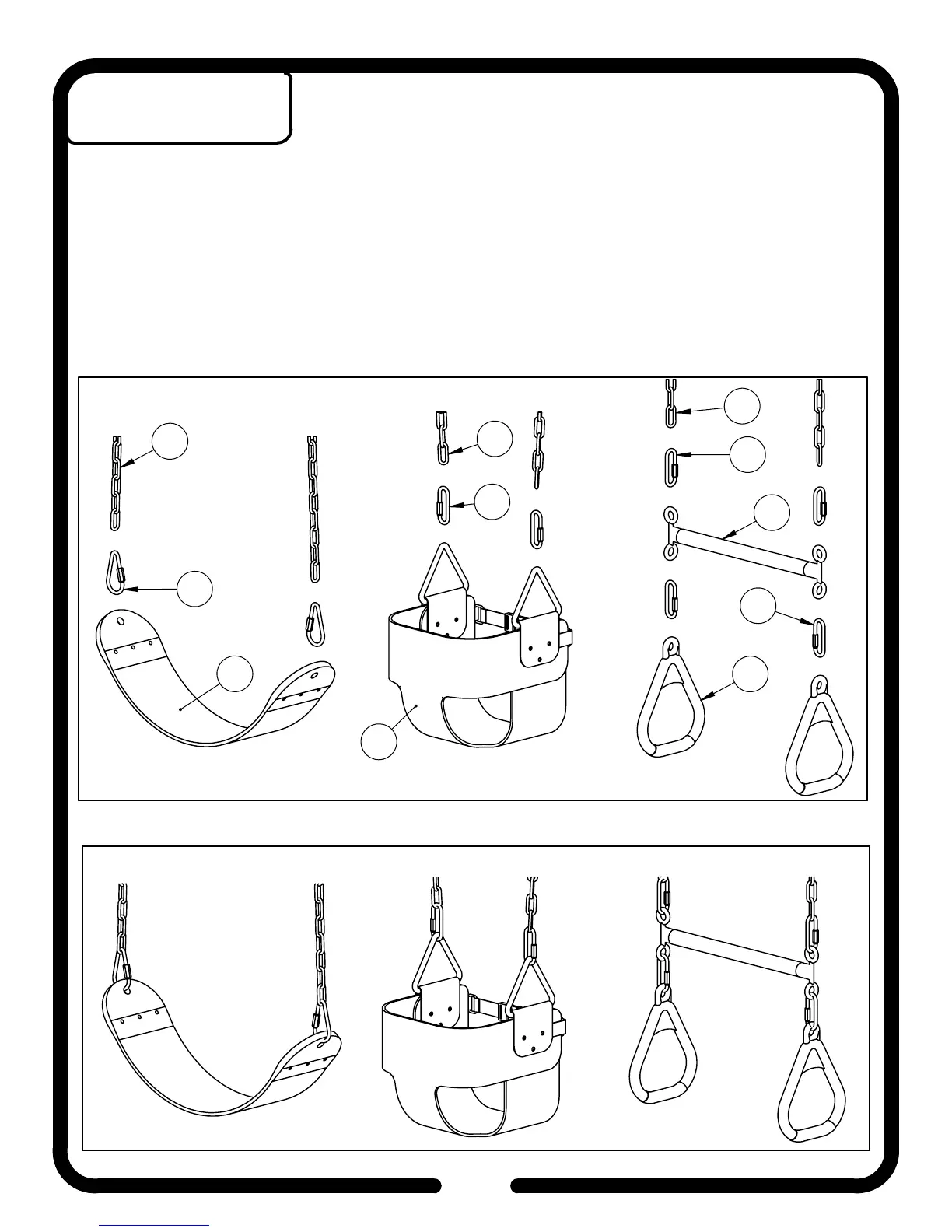

INSET A
N13
N31
N15
G
H
J
INSET B
1. Open C-Links
(N30)
and Pear Links
(N31)
.
*NOTE: When closing C-Links & Pear Links, securely tighten using a crescent wrench.
2. Attach two Swing Chains
(N13)
to each Swing Seat
(N15)
and Half Bucket Swing
(N17)
using Pear
Links
(N31)
for the Swing Seat
(N15)
and C-Links
(N30)
for the Half Bucket Swing
(N17)
(as shown in
Inset A).
3. Attach two Trapeze Chains
(N12)
to Trapeze Bar
(N18)
using C-Links
(N30)
(as shown in Inset A).
4. Attach Trapeze Rings
(N14)
to Trapeze Bar
(N18)
by connecting C-Links
(N30)
to both the Trapeze
Bar
(N18)
and Trapeze Rings
(N14)
(as shown in Inset B).
*NOTE: When completed, swing assemblies should look as shown in Inset B.
5. Securely close all C-Links
(N30)
and Pear Links
(N31)
by tightening with a crescent wrench.
35
Step 17
Swing Assembly
