Rainbow Super Funhouse - Page 23

35 7/8"
47 3/8"
0068
0068
0068
0068
H1
H108
H1
H108
H1
H108
6092
6092
6090
6091
6091
6090
227
247
226
247
227
226
228
228
247
247
*NOTE: Pre-drill holes for all 5/16" Lag Bolts using a 1/8" drill bit.

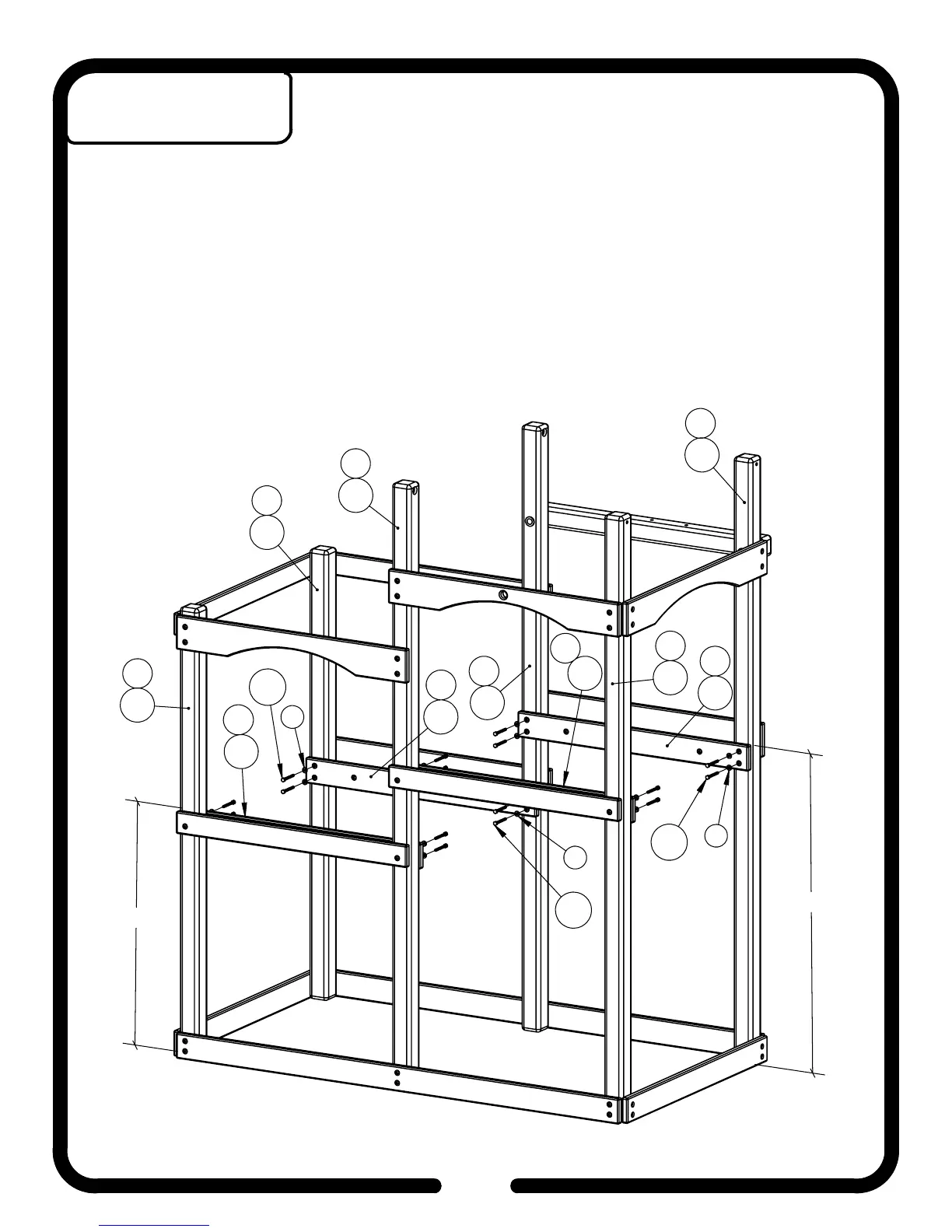

1. Measure up 35 7/8" and 47 3/8" on Corner Posts (226) (6090) (227) (6091) (228) (6092) and attach
Main Beams (247) (0068) using 5/16" Hardware (H108) and 1/4" Hardware (H1) .
22
Step 4
Main Beam Installation
