Rainbow Super Funhouse - Page 24

48"
21"
38 1/4"
FLUSH
FLUSH
0074
H1
H108
9133
9132
9132
9131
9133
H108
H1
6092
6090
6091
9133
H1
H108
234
233
235
235
234
253
235
228
226
227

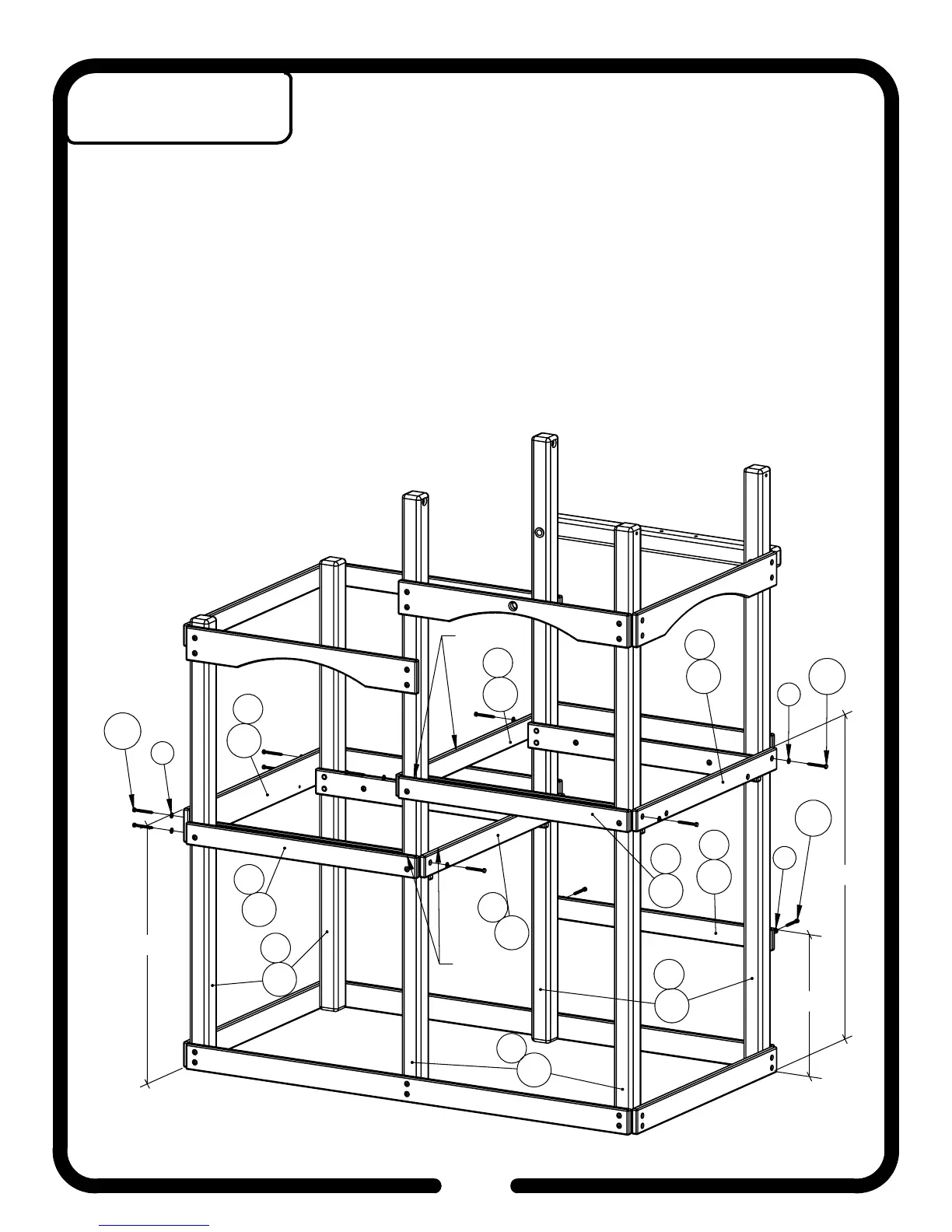

*NOTE: Pre-drill holes for all 5/16" Lag Bolts with a 1/8" drill bit.
1. Measure up 38 1/4" on Lower Corner Posts (228) (6092) and attach 6 Hole Facia (253) (0074) using
5/16" Hardware (H108) and 1/4" Hardware (H1) . Inside counter-sunk holes in 6 Hole Facia (253)
(0074) should be down.
2. On middle Corner Posts (226) (6090) (227) (6091) , install 2 Hole Facias (234) (9132) flush with
previously installed 2 Hole Facias (235) (9133) using 5/16" Hardware (H108) and 1/4" Hardware (H1) .
Offset holes should be up.
3. Position 2 Hole Facia (235) (9133) on Corner Posts with Top Joist Holes (227) (6091) 21" up. Attach
2 Hole Facia using 5/16" Hardware (H108) and 1/4" Hardware (H1) .
4. Measure up 48" and attach Deck Facia (233) (9131) to Corner Posts (226) (6090) (227) (6091) using
5/16" Hardware (H108) and 1/4" Hardware (H1) . Inside counter-sunk holes in Deck Facia (233)
(9131) should be down.
23
Step 5
Facia Installation
