9133
9140
9140
H1
H108
H1
H108
H1
H108
6092
6090
6090
6091
9131
9133
9133
H1
H108
H108
H1
242
228
235
235
226
226
227
233
242
235
*NOTE: Pre-drill holes for all 5/16" Lag Bolts with a 1/8" drill bit.

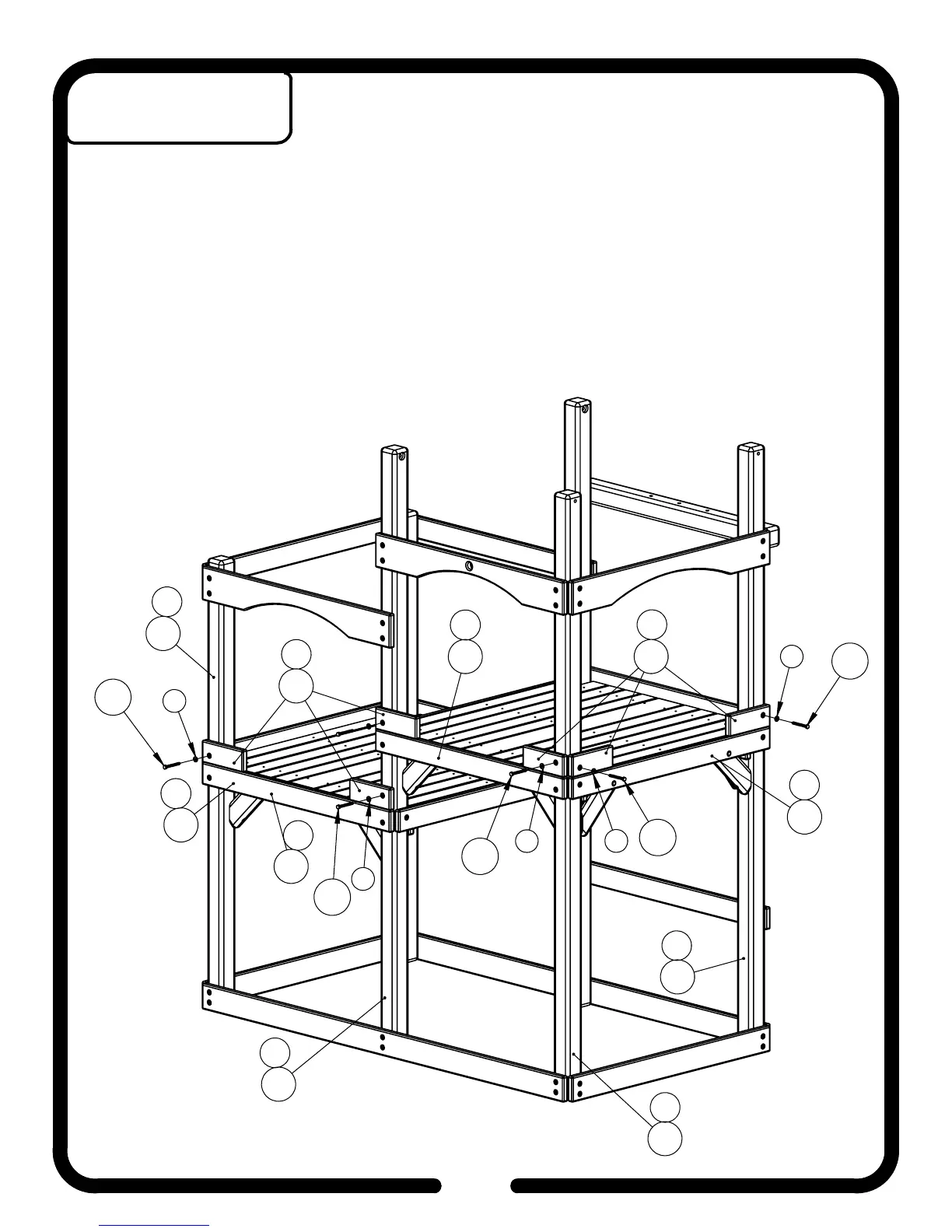

1. Position Corner Facias
(242)
(9140)
to rest directly on top of Facias
(233)
(9131) (235) (9133)
and
flush with the outside face of Uprights
(226)
(6090) (227) (6091) (228) (6092)
.
2. Attach Corner Facias
(242)
(9140)
to Uprights
(226)
(6090) (227) (6091) (228) (6092)
using 1/4"
Hardware
(H1)
and 5/16" Hardware
(H108)
.
26
Step 8
Facia Installation
To Next Page
