Installation Instructions
1. Safety Precautions
• To prevent an accident and/or injury, do not hoist the unit over
your shoulder. Use a hand truck to transport the unit.
• Do not lay the unit on its side.
• Wear safety glasses and work gloves during installation.
2. Test the Raw Water
• If water contains iron, manganese or hydrogen sulfide, a seperate
iron removal system is suggested to be installed prior to the
conditioner, consulting with your local dealer.
3. Check the Water Pressure
• Use a pressure gauge to confirm that the water pressure does not
exceed 120 psi. If the water pressure does exceed this limit, install
a pressure regulator on the inlet pipe of the unit. The minimum
water pressure for a conditioner is 20 psi. 60 psi is the optimum
operating pressure.
4. Locate a Site for the System
• There are three primary requirements needed for a site: the main
water source, an air-gap drain and a grounded electrical
connection. Locate the system as close to these items as practical.
Drain lines over 50 feet long, may need to be increased in size to
allow proper flow.
• Place the system in the desired location. The location should have
a level, smooth, and clean surface.
• If the system is located outdoors, protect the unit from direct sun-
light. Direct sunlight can damage the fiberglass and other system
components. If necessary, build a box or shed.
5. Install the Valve Head
• Remove the cap plug from the tank.
• Lubricate the riser pipe O-ring and tank O-ring with the Dow 111
silicone-based lubricant or equivalent.
• Attach the supplied upper basket to the bottom of the control
valve; twist to lock in place. Do not use if water contains any
amount of iron.
Helpful Tip: The drain may be a
floor drain, a sewer trap, utility
sink, vent stack, dry well, etc.,
depending on local plumbing
codes.
Important Note: The system can
only be installed outdoors in
climates that do not reach
freezing levels.
Important Note: Do not over-
tighten the valve to the tank.
Important Note: Not Applicable
for EC5-CAB and SS Models.
Important Note: For Massachusetts
Residents Only: The Commonwealth of
Massachusetts Plumbing Code 248 CMR
shall be adhered to. A licensed plumber
shall be used for this installation.

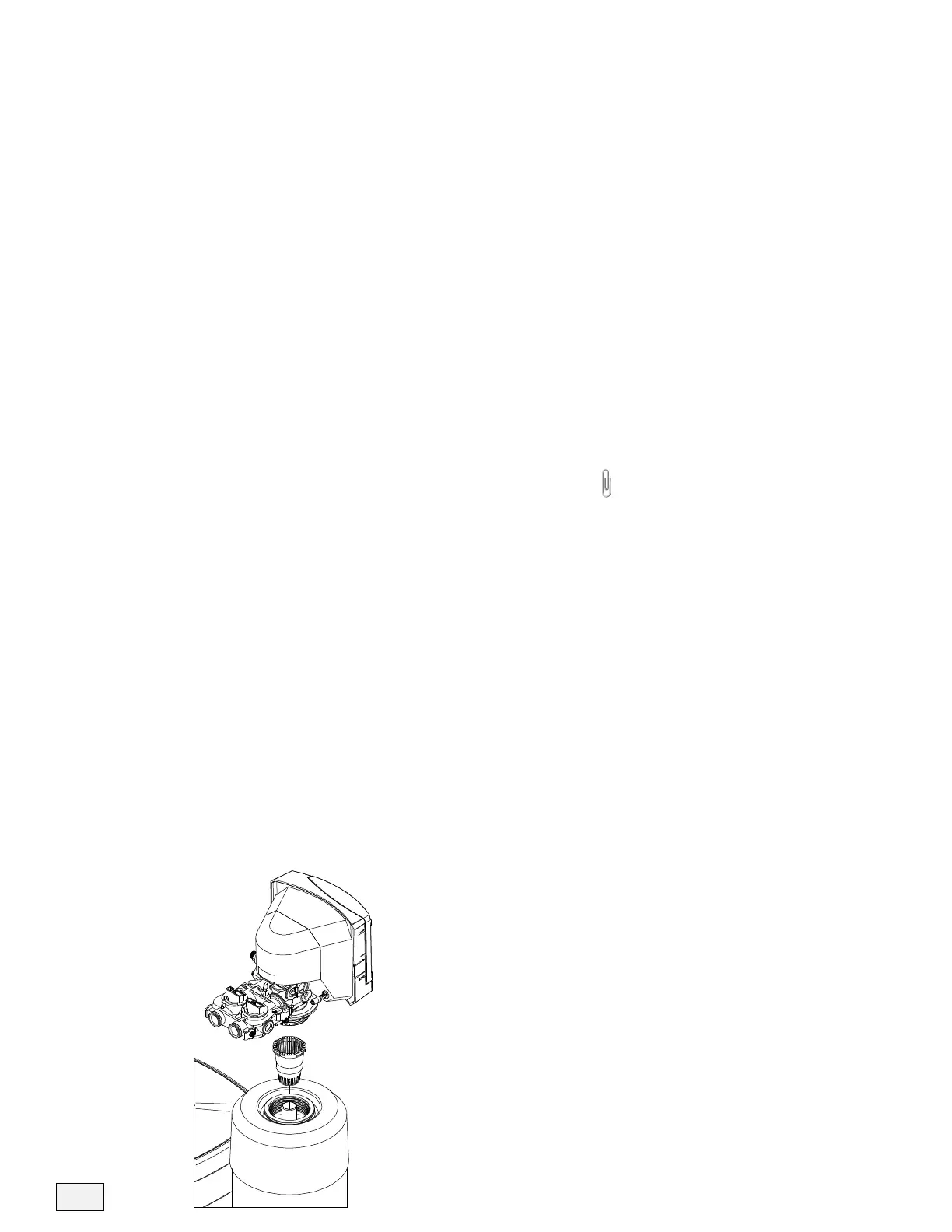

Figure 1
To Next Page
