Pro2 Extruder Front Nozzle Cooling Fan Installation Instruction

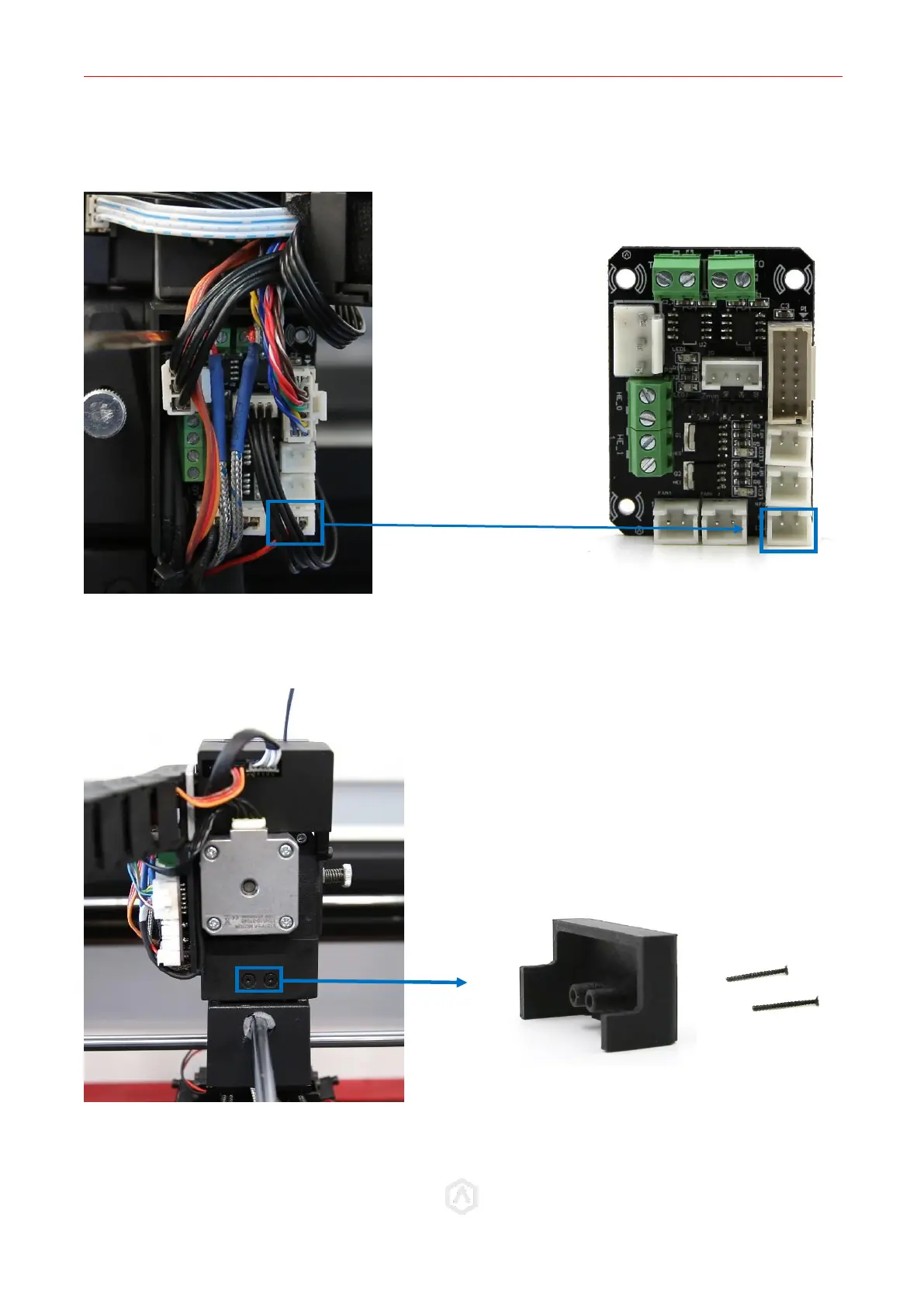

STEP 3: Remove the old Fan
Unplug the front fan cable from extruder board.
⚫ Cut the old cable off. Take the old Cooling Fan and the its cable out.
⚫ Remove the two fixing screws from the black back casing and take the casing off.
