Pro2 Extruder Front Nozzle Cooling Fan Installation Instruction

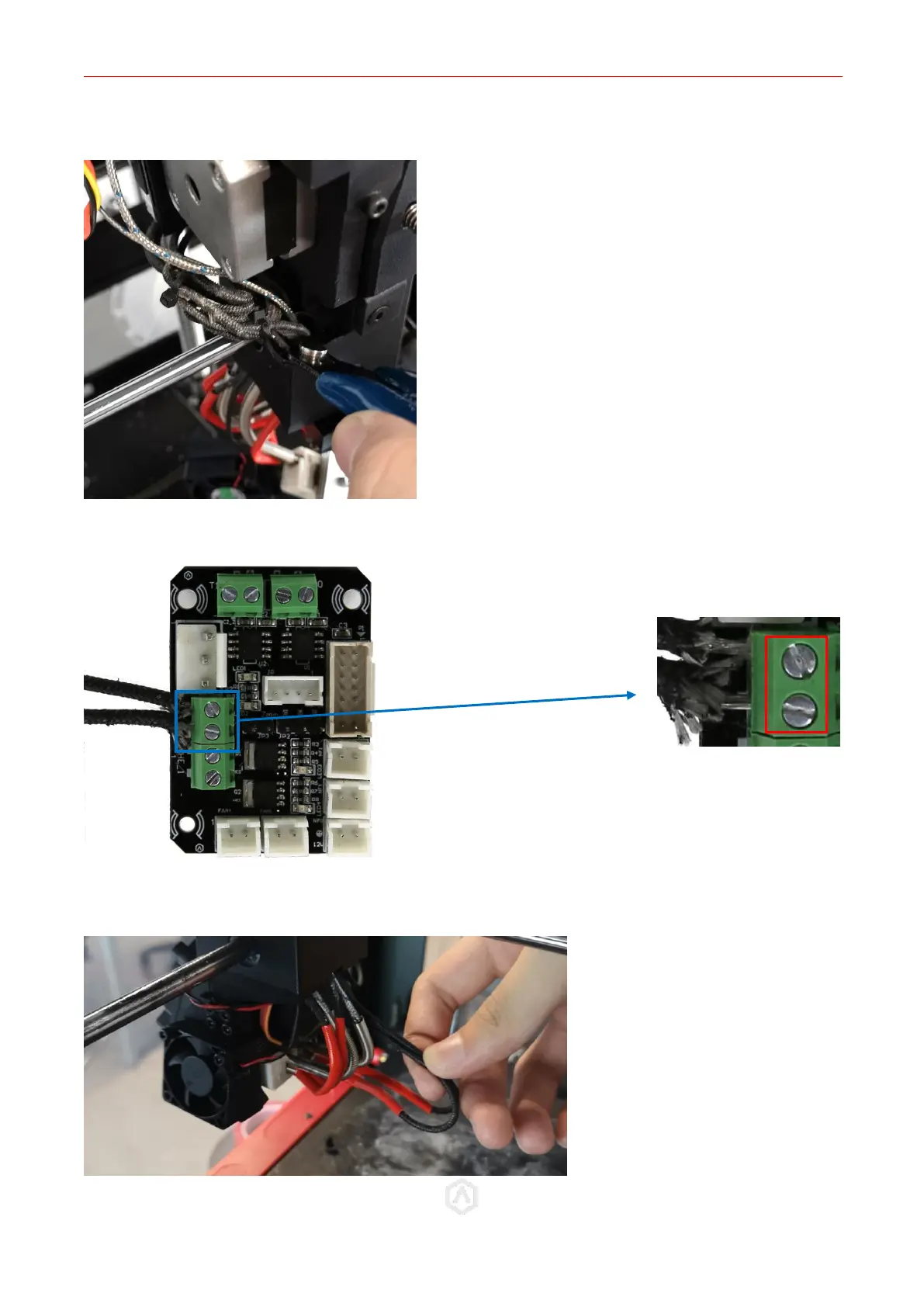

Cut the zip tie fixing cables.
Loosen the screws marked in following image. And remove the Heating Rod cables from extruder
board.
Pull the Heating Rod cables out from the Mounting Block from the bottom.
STEP 4: Install the New Fan
