Pro2 Extruder Front Nozzle Cooling Fan Installation Instruction

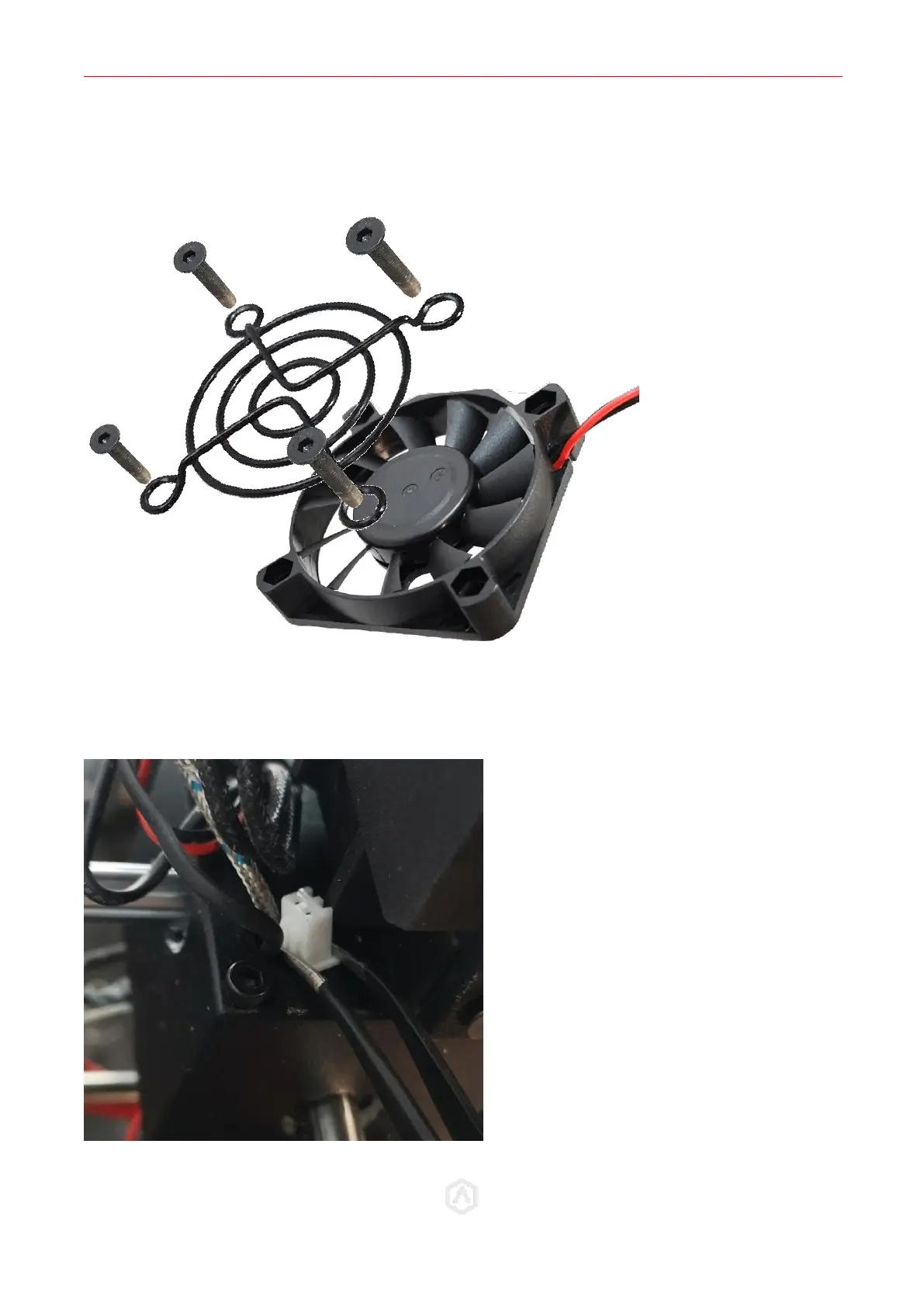

Fix the Protective Cover and Front Fan back onto the Fan Duct with 4 fixing screws.
⚫ Make sure the surface with label is facing to Fan Duct.
Grab the connector of the new Fan by tweezers out from the top to help it go through the Mounting
Block.
