Pro2 Extruder Front Nozzle Cooling Fan Installation Instruction

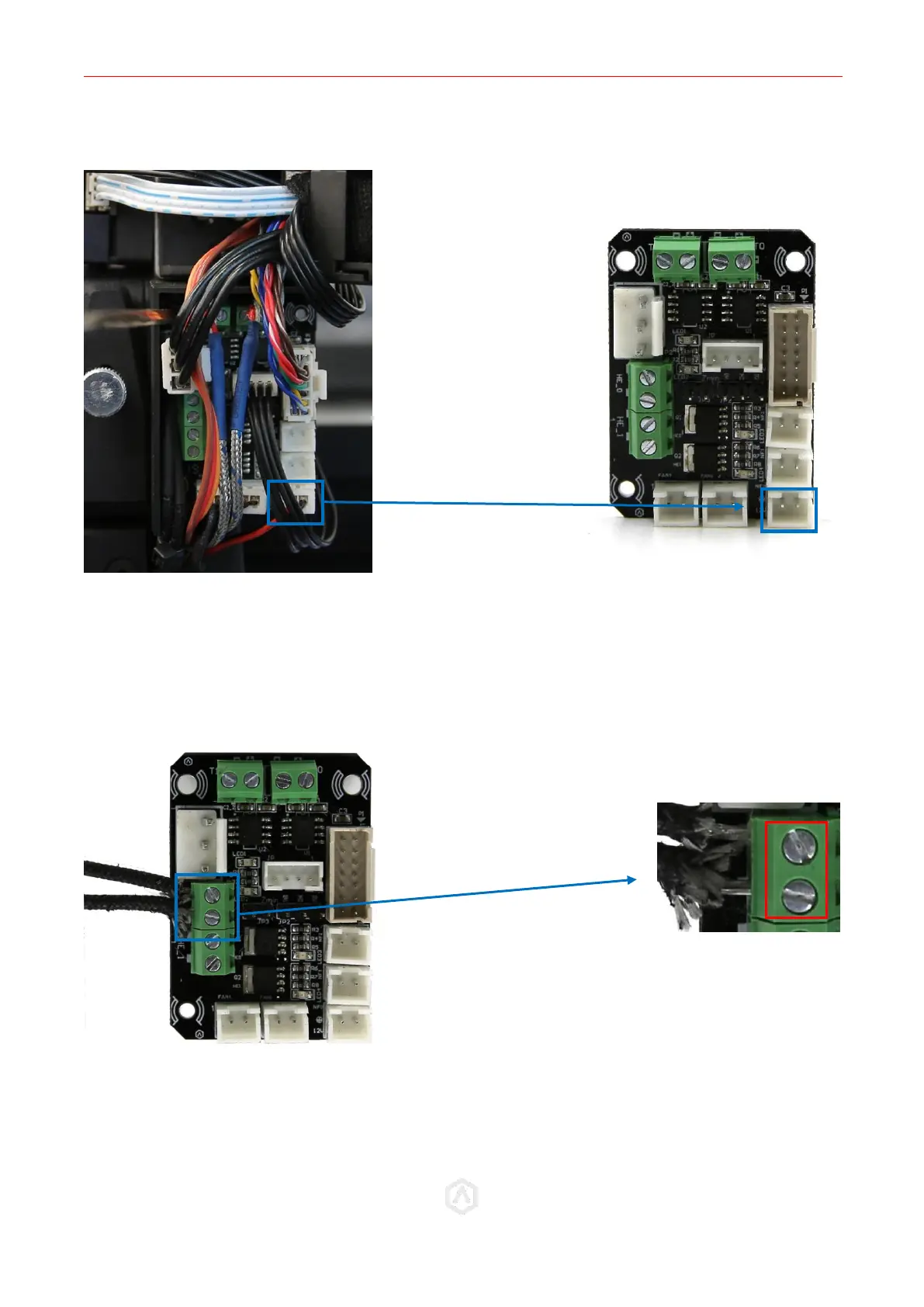

Plug the Front Fan cable onto the terminal where you unplug the old cable.
Insert the cables of the Heating Rod into the terminal and tighten the screws to fix.
Ensure there is no exposed wired touching with each other, or it may do harm to the printer.
Upper one is for Left nozzle. Lower one is for right nozzle.
