Chapter 4 Device Setting Instruction
4.1 Dip switch setting instruction
4.1.1 Dip switch location

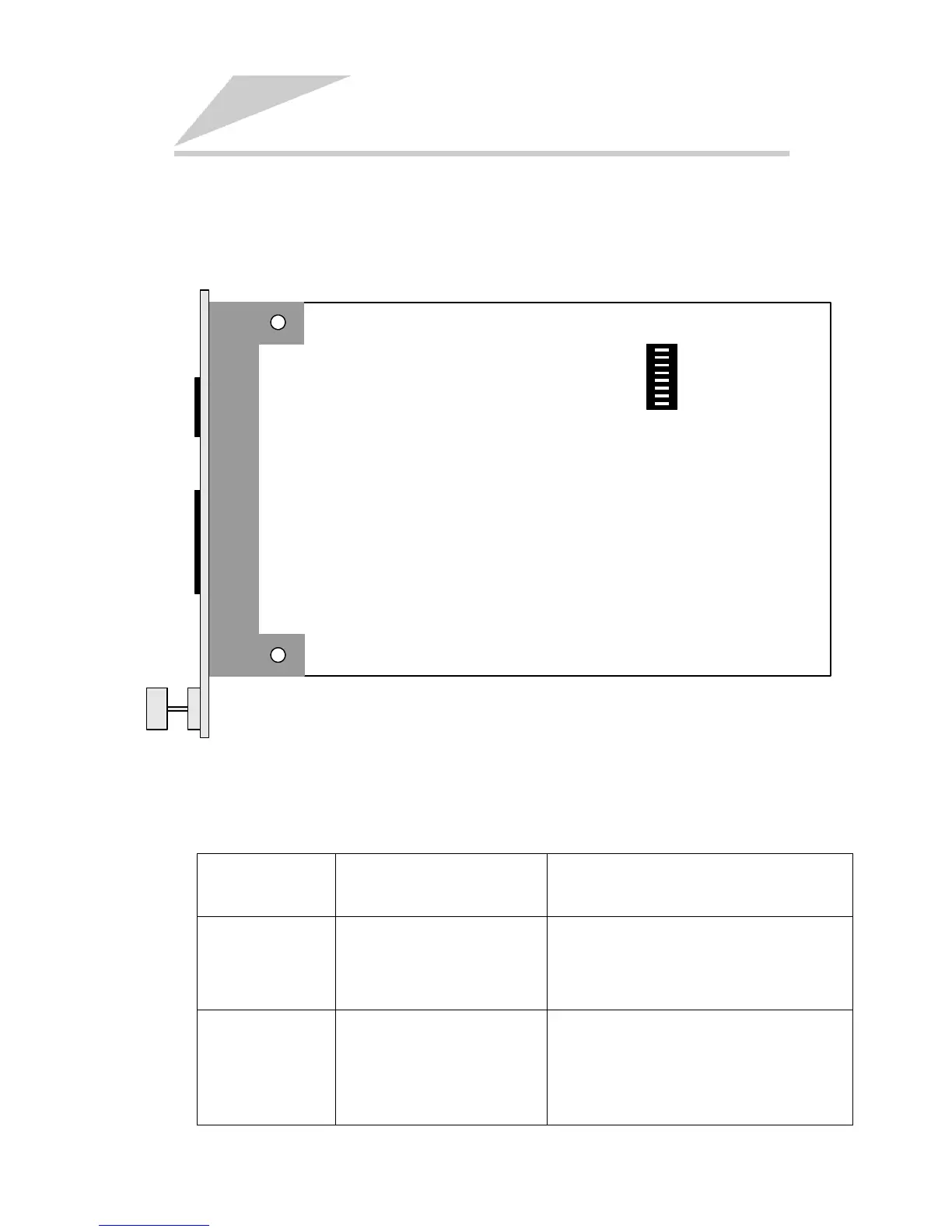

There is an 8-bit dip switch SW1 on the back of the PCB.
ON
1
234567
8
SW1
4.1.2 Dip switch definition
SW1 definition:
Dip switch bit
definition
OFF (Factory default) ON
Bit 1
Remote E1
loop back
Normally operating Enable remote E1 loop back testing
Bit 2
Local
bidirectional
loop back
Normally operating Enable local bidirectional loop back
testing
