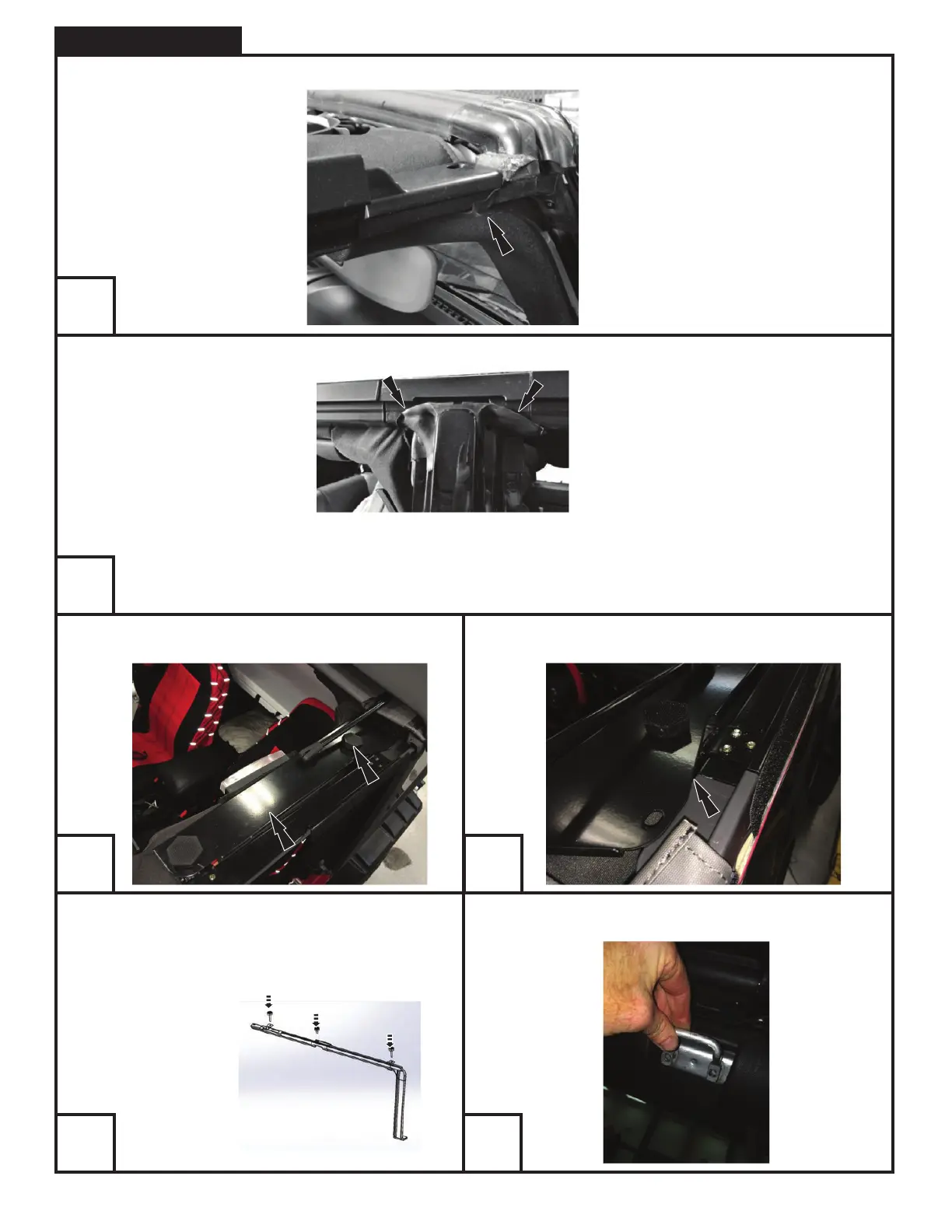

TIP: Make sure the rubber gasket at the top of the windshield is correctly sealed against the front surround section. See photo below
for proper fit:
TIP: Make sure the rubber is correctly wrapped around the plastic center section before tightening with the center knob. See photo
below for proper fit:
Inspect the clearance between top of windshield frame and door surround. Check that the factory foam seal is in place and
refer to your Jeep® owners manual to ensure the door surrounds are properly fitted and tightened.
Installation Steps
NOTE: Actual application may vary slightly from illustrations.
Page 4 of 11
Fit door surround mount plate on top of door surrounds. Secure the mount plate to the roll cage using turn-knobs in
the pre-drilled holes.
Insert door surround knobs (SM, 70mm LR, 60mm LF) into door
surround assembly. Position the Long Rear (LR) knob at the rear
of the assembly and tighten. Repeat using the Long Front (LF)
knob at the front of the assembly, and the Small (SM) knob in
the middle.
Use a Torx T25 bit to remove the footman loop from the windshield
on both the driver’s and passenger’s side. See photo below:
Long front
Short middle
Long rear
14
15
16
17
18 19
