Installation Steps
NOTE: Actual application may vary slightly from illustrations.
Page 5 of 11

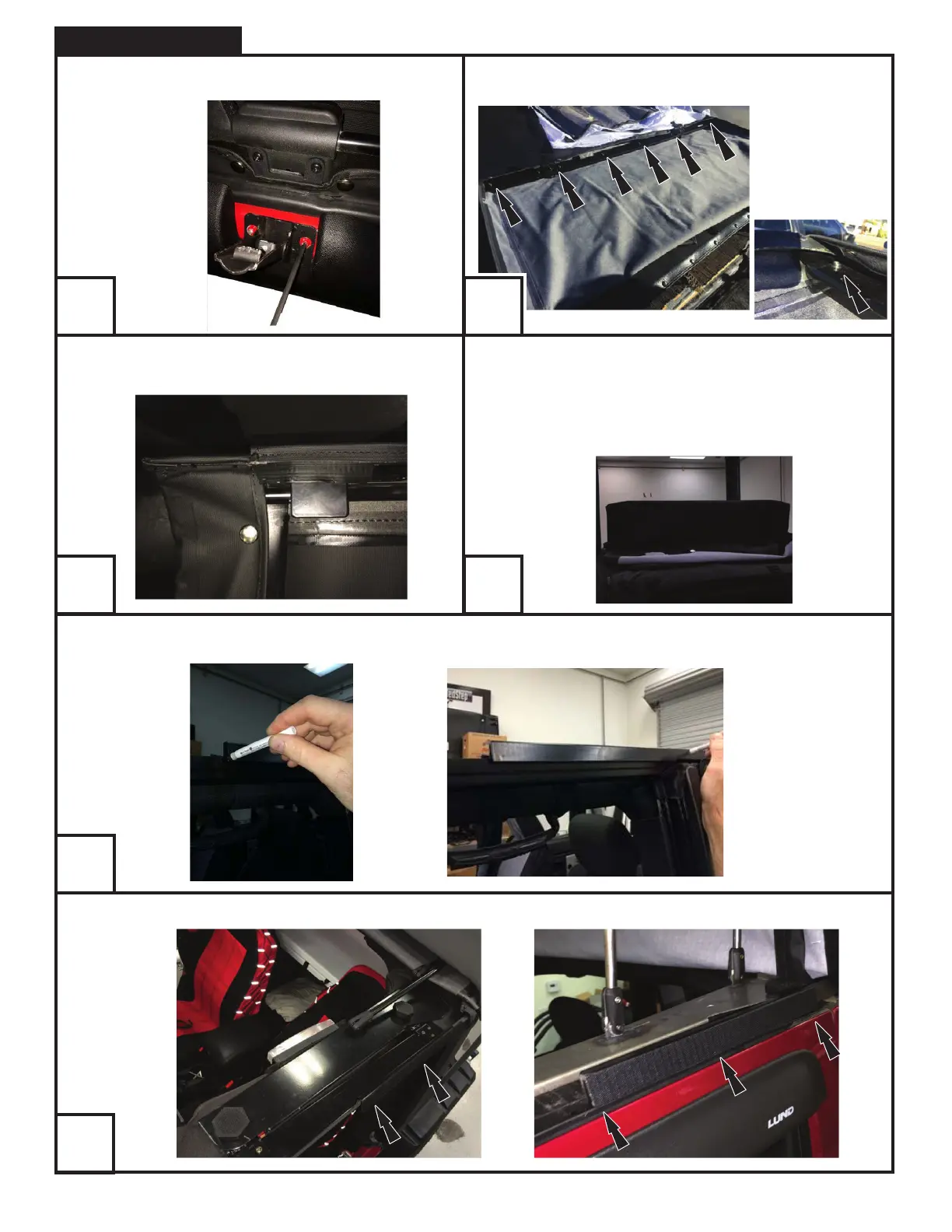

Place provided latch as shown and reattach with the Torx T25
bolt from the previous step.
Tuck the plastic strip behind latches and along side rails. See
photo below for proper fit:
Prep the door surrounds by coating the area with the provided Hook & Loop Adhesive Primer stick. Apply to both sides and
LET DRY 5 MINUTES.
TIP: It may be helpful to have a second person for this step.
Place the top face down and re-fold, beginning with the rear
window portion.
Lift the top and header channel assembly onto the windshield
gasket. Fold the top over the frame working toward the windshield.
Remove the backing then press the adhesive Hook & Loop strip onto the door surround. See photos below for proper alignment:
Fold back the hardware tubes of the header channel assembly
then insert into the main fabric. Secure with snaps as shown.
20 21
22
24
23
25
