Ramsey Winch REP 5000 - Page 8

8
Item
No.
Qty.
Req'd Part No. Description
1 1 289015 Wire Assembly—Battery Red 72"
2 1 289091 Wire Assembly—Red 16 Ga. x 1-1/2” Lg
3 1 289092 Wire Assembly—Black 6 Ga. x 3-1/2” Lg
4 3 289171 Wire Assembly—Black 4 Ga. x 17” Lg. (12v)
3 289115 Wire Assembly—Black 6 Ga. x 17” Lg. (24v)
5 1 289208 Wire Assembly—Black 18 Ga. x 12.5” Lg (12v)
1 289209 Wire Assembly—Black 18 Ga. x 14.5” Lg (24v)
6 2 364002 Strap—Copper
7 1 408102 Bracket
81413024 Cover—Solenoid
9 3 414053 Capscrew 1/4—20NCx1-1/4Lg.Hx.Hd. Z/P
10 7 416216 Screw #10—24NCX 1/2” Lg. Rd. Hd. Z/P
11 2 416227 Screw #10—24NCX 3/4” Lg. Truss Hd. Black
12 6 418004 Nut—Hx. Reg. #10—24NC Z/P
13 6 418014 Nut—Hx. Reg 1/4—20NC Z/P
14 4 418140 Washer #10 SAE Flat Z/P
15 2 418141 Lockwasher #10 Med. Sect. Z/P
16 3 418149 Lockwasher 1/4 Med. Sect. Z/P
17 1 418165 Washer 5/16 Shakeproof External Teeth
18 3 418411 Nutsert #10—24
NC
19 3 418514 Spacer
20 1 430013 Connector Female—Molded
21 2 440071 Terminal Tab
22 2 440110 Solenoid—12V
2 440114 Solenoid—24V
23 1 440111 Strap—Copper
24 1 482029 Cover—Female Connector
Note: All unidentifi ed hardware comes
supplied with the solenoid.

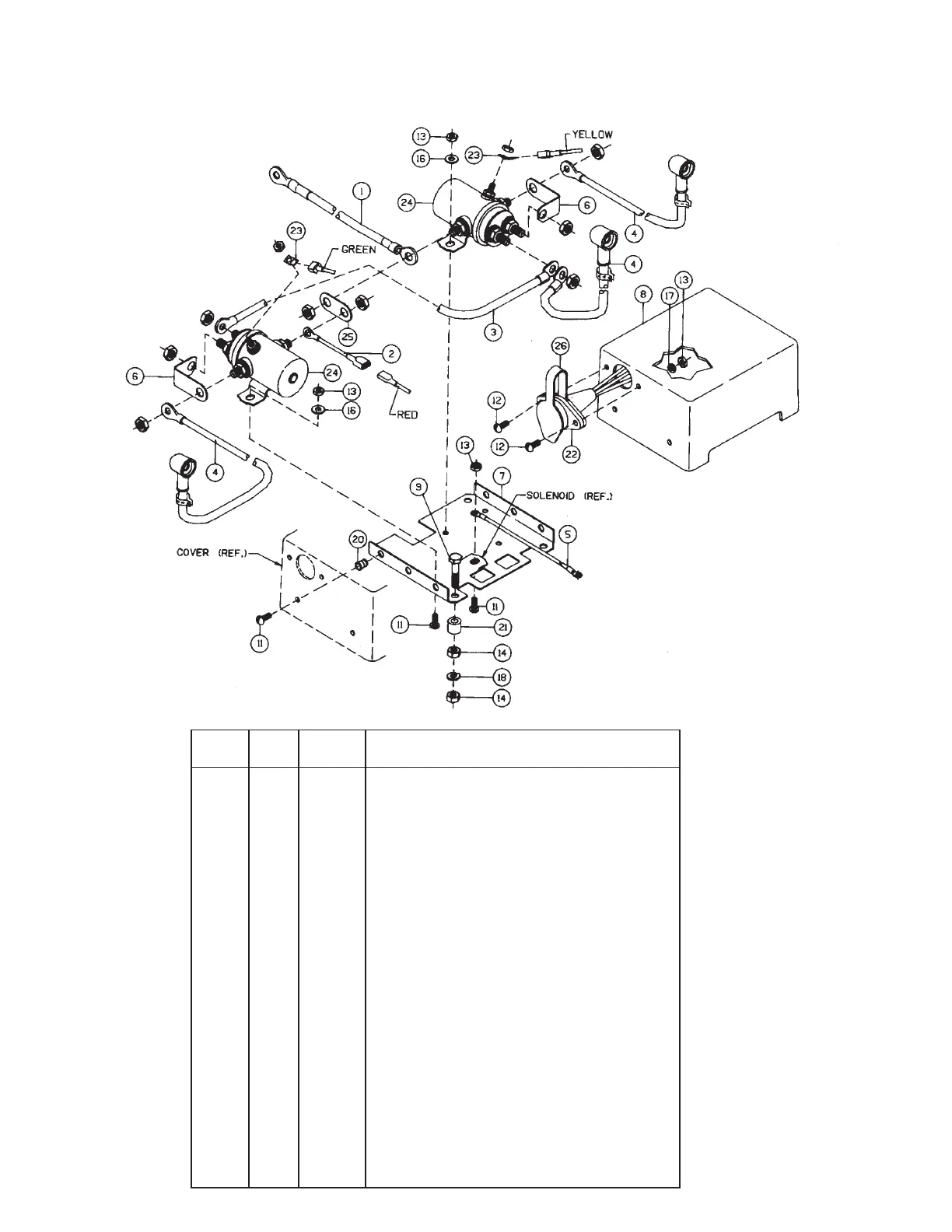

Solenoid Assembly Parts List
278158 - REP 5000 12V
278192 - REP 5000 24V
