7
13
1
14
23
11
36
2
10
12
19
3
24
37
11
34
33
18
30
32
16
20
32
12
21
22
15
8
31
37
37
35
25
7
4
5
29 26
17
9
27
6
28
Hawse Fairlead
#251150
Roller Fairlead
#251151
Included with REP 5000H
Mounting hardware included with winch.
Included with REP 5000R
Mounting hardware included with winch.
REP 5000
Item
No.
Qty. Part No. Description
Item
No.
Qty. Part No. Description
1 1 247006 Gear Carrier Assembly - Output 20 4 418035 Nut - 3/8-16NC Hx reg Z/P
2 1 247007 Gear Carrier Assembly - Intermediate 24v 21 4 418177 Lockwasher - 3/8 Med Sect Z/P
31
247024
Gear Carrier Assembly - Input 22 4 418181 Washer - 3/8 ID SAE Flat Z/P
4 1 251110 Switch Assembly - 12 ft 23 1 442207 Gasket - Gear Housing Cover
5 1 251169 Cable Assembly - 80' x 1/4" (6m
m) Dia. 24 1 444048 Gear - Output Sun
6 1 278158 Solenoid Assembly - 12v 25 2 448061 Tie Bar
1 278192 Solenoid Assembly - 24v 26 1 448071 Cable Anchor
7 1 296285 Brake Assembly 27 1 296589 Motor/End Bearing Assembly - 12v
8 1 332143 Drum - Cable 1 296591 Motor/End Bearing Assembly - 24v
9 1 334143 Gear - Ring 28 1 424023 Clamp
10 1 334147 Gear - Intermediate Sun 29 1 470053 Roll Pin - 1/8 Dia x 3/8 Lg
11 1 338337 End Bearing 30 1 477002 Locking Ring
12 2 4
12056 Bushing - Drum 31 1 477013 Cam Ring
13 1 412061 Bushing - Shaft 32 2 477004 Ring - Half
14 1 413018 Cover - Gear Housing 33 1 479007 Retainer - Ring Gear
15 4 414316 Capscrew - 3/8-16NC x 1-1/4 Hx Hd GR5 Z/P 34 6 494077 Spring
16 4 414823 Capscrew - 1/4-20NC x 3/4 Soc Button Hd F/B 35 3 518020 Thrust Washer
17 1 414830 Capscrew - 1/4-20NC x 3/8 Button Hd 36 1 518027 Thrust Disc
18 6 414861 Capscrew - 1/4-20NC x 3/4 Flat Soc Hd Nylok 37 1 452005 Shifter Lever
19 6 416273 Screw - #6-32NC x 3/8

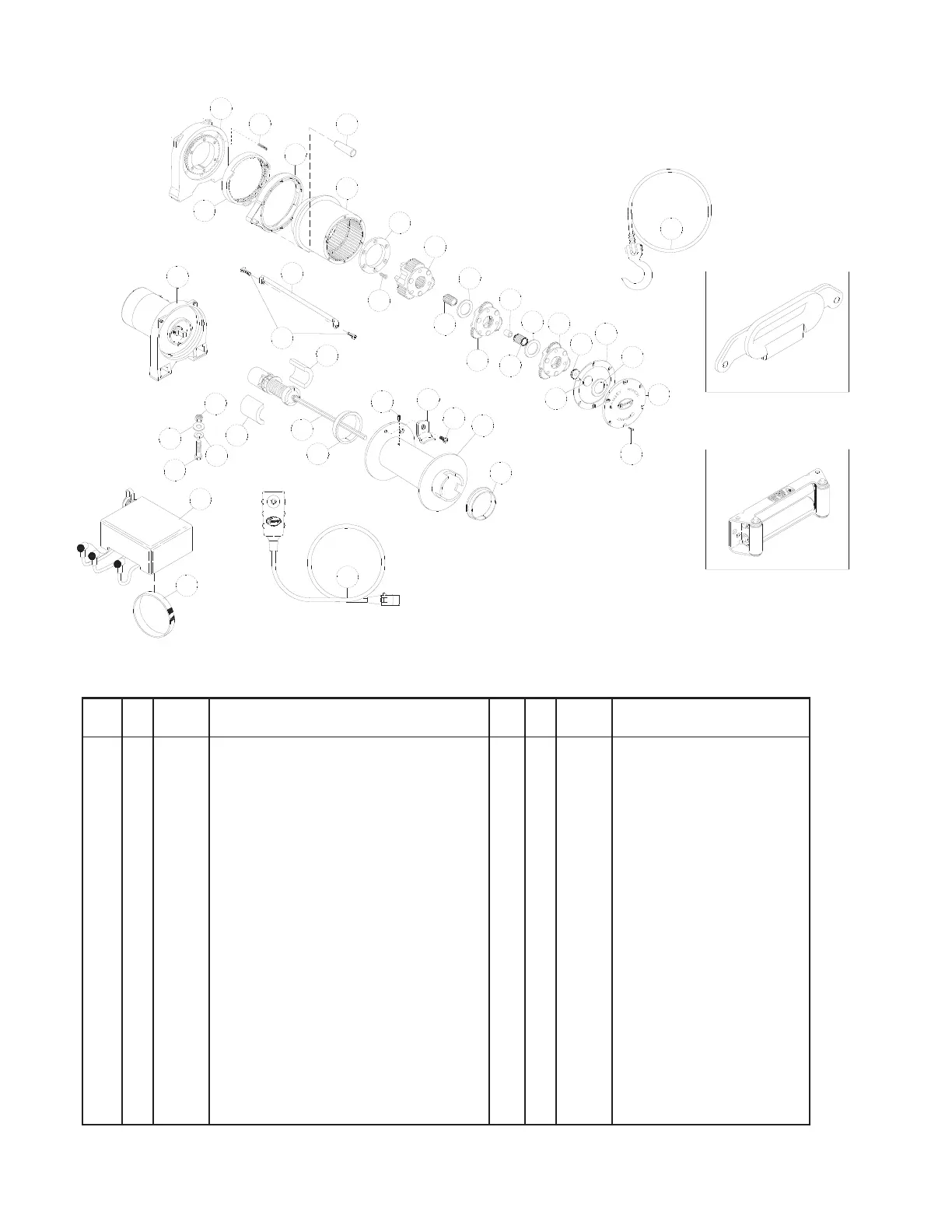

REP 5000 Parts List (12v AND 24v)
