Trying Out the Instrument

R&S

RTM2000

28Getting Started 1317.4710.02 ─ 05

4.2 Zooming into the Waveform

Using the SCALE rotary knobs you can change the scaling of the time base and signal

amplitudes in order to enlarge the waveform. If you want to see more details, use the

zoom function.

1. Press the ZOOM key.

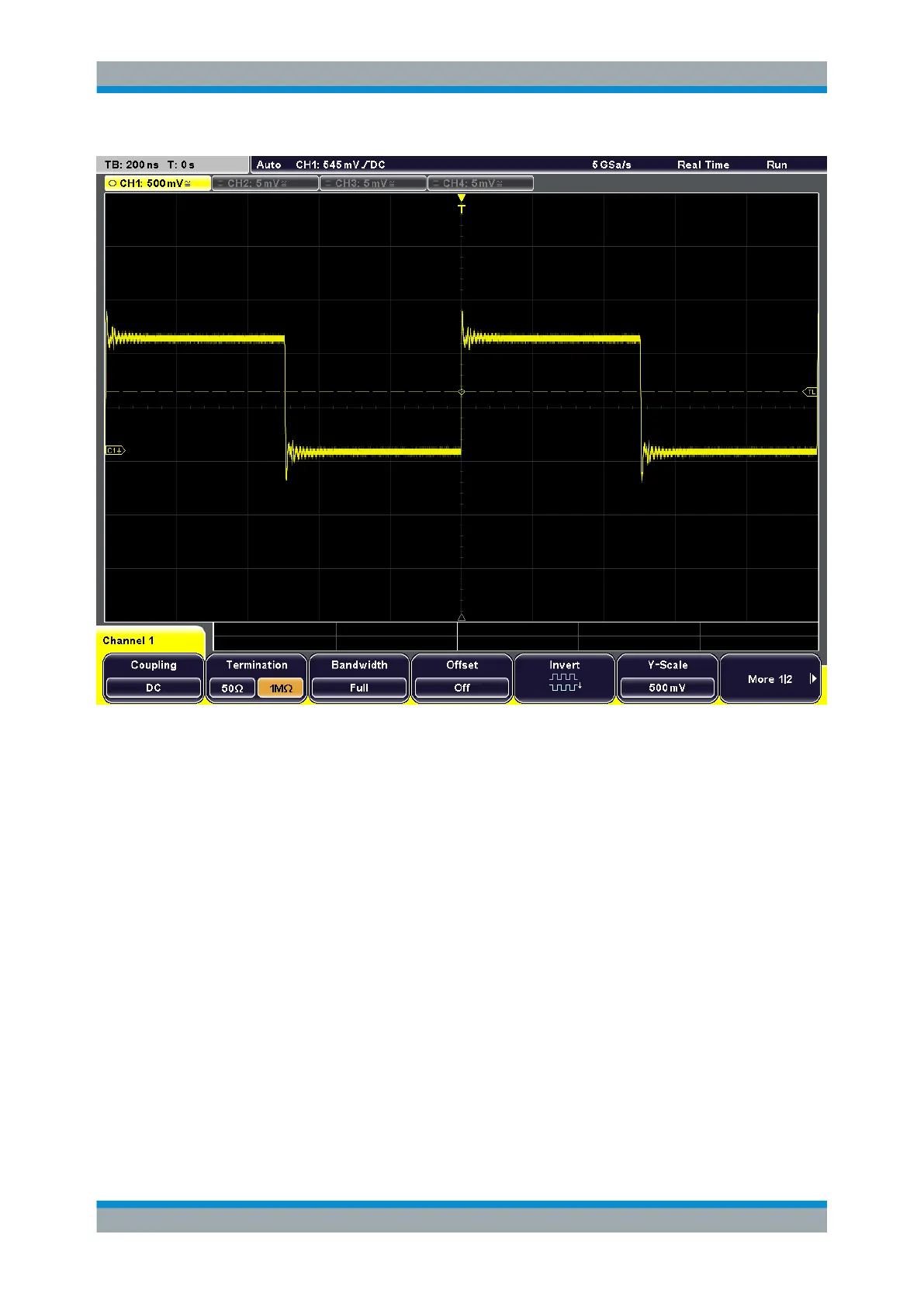

The key lights up and two windows are displayed: the original signal vs. time at the

top, the zoom window at the bottom. In the title line of the zoom window, "Zoom

Control" mode is displayed.

Zooming into the Waveform
