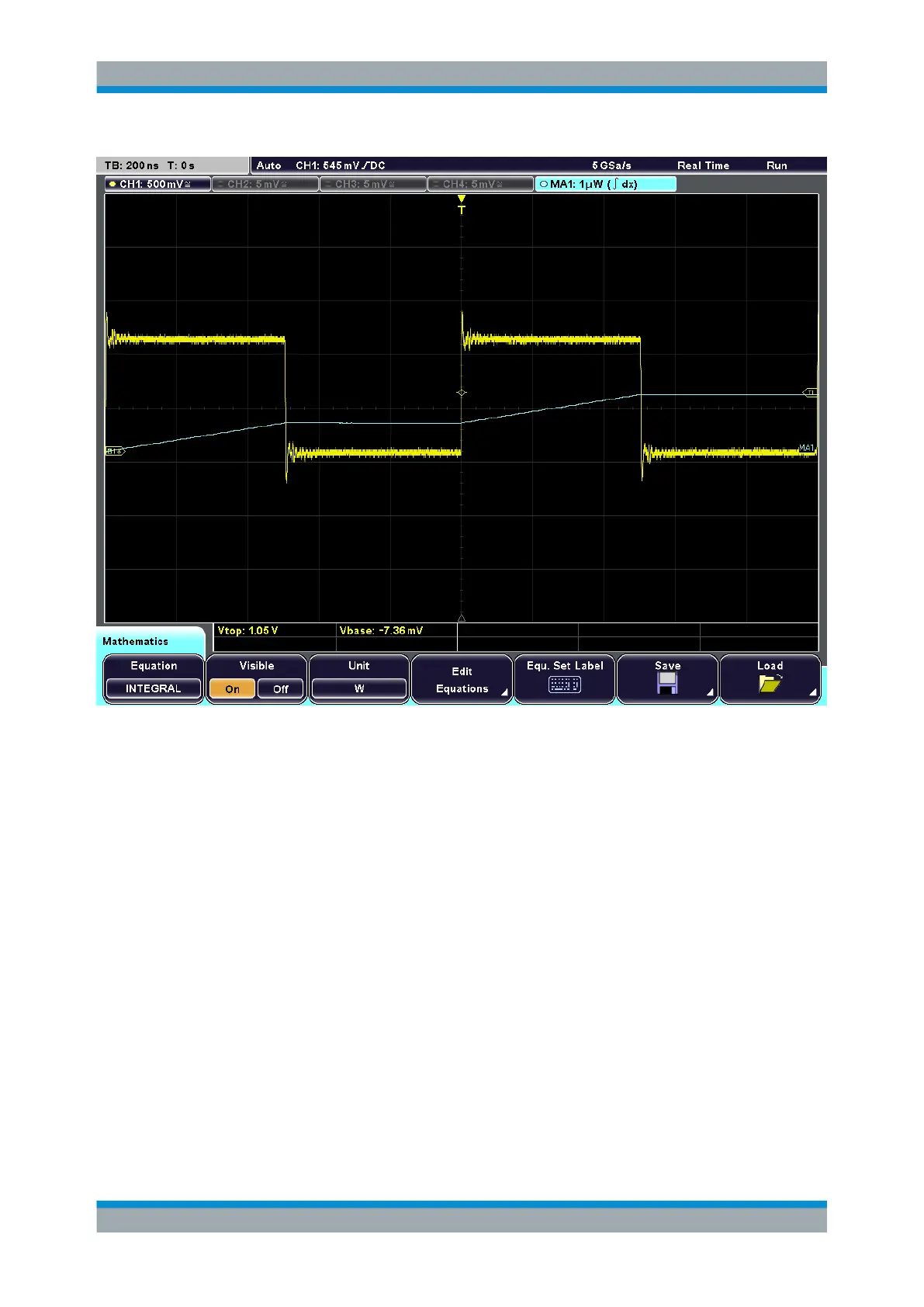

10. To display the integral of a single pulse, configure a V-marker cursor whose source

is the first math waveform ("MA1" or "Integral") and position the cursors at the

beginning and at the end of the pulse.

The procedure is described in the previous example, chapter 4.5, "Performing Cur-

sor Measurements", on page 34.

The integral between the two cursors is displayed as "ΔV" in the result table.
