MIDI Mapping
When using Serato Scratch Live software,
the mixer is plug-and-play with all required
MIDI mapping done for you. For advanced
users or with third-party DAWs, it is
possible to custom MIDI-map most mixer
controls on the Sixty-Two and control the
lighting and color of buttons in the Scratch
Live control strips. See the charts in the
Appendix for “MIDI Implementation” on
page 53.
There are three groups of MIDI controls:
• Those associated with PGM 1 and the
left-hand control strip.
• Those associated with PGM 2 and the
right-hand control strip.
• Mixer controls not associated with
PGM-1, PGM-2 or either control strip.
There are two USB ports on the mixer,
USB A and USB B. Users can assign each
of these three groups to USB A or USB B
as follows:
• The SOURCE selector for PGM 1
determines which USB port will be used
for PGM 1 controls and the associated
left-hand control strip.
• The SOURCE selector for PGM 2
determines which USB port will be used
for PGM 2 controls and the associated
right-hand control strip.
To assign MIDI controls not related to
PGM 1 or PGM 2, press the SP-6 ASSIGN
button at the top of a control strip and it
will light brightly to indicate that controls
belonging to the third MIDI group are
assigned to the same USB port. The
one exception is the crossfader, which is
always sent to both USB ports.
MIDI Assignments

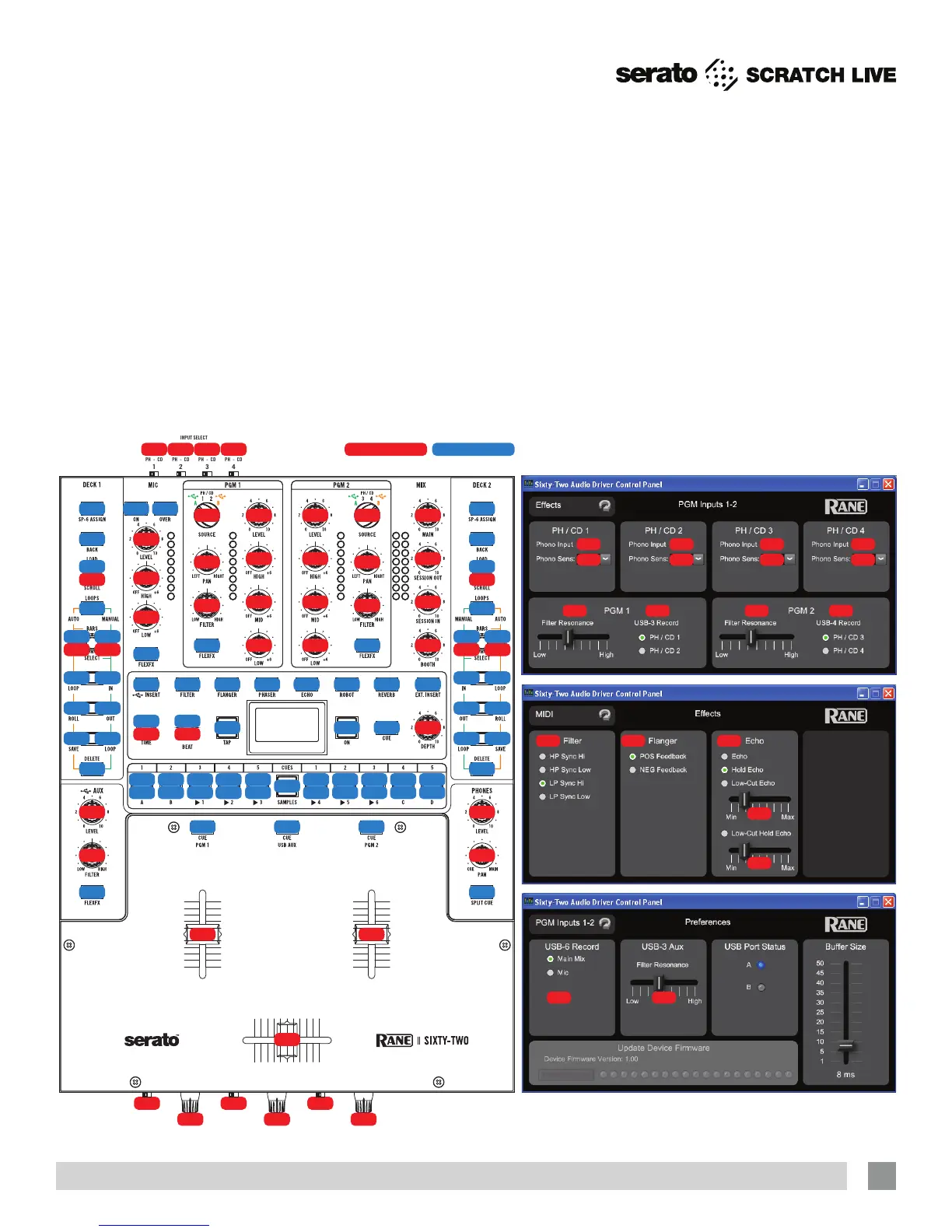

As indicated in the Top Panel MIDI
Assignments graphic, there are unique
MIDI assignments for Loop controls when
in AUTO and MANUAL modes. There are
also unique MIDI assignments for Cue
and Sample buttons when in CUE and
SAMPLES modes.
