Range Master 463724313 - Page 23

23
Shelves

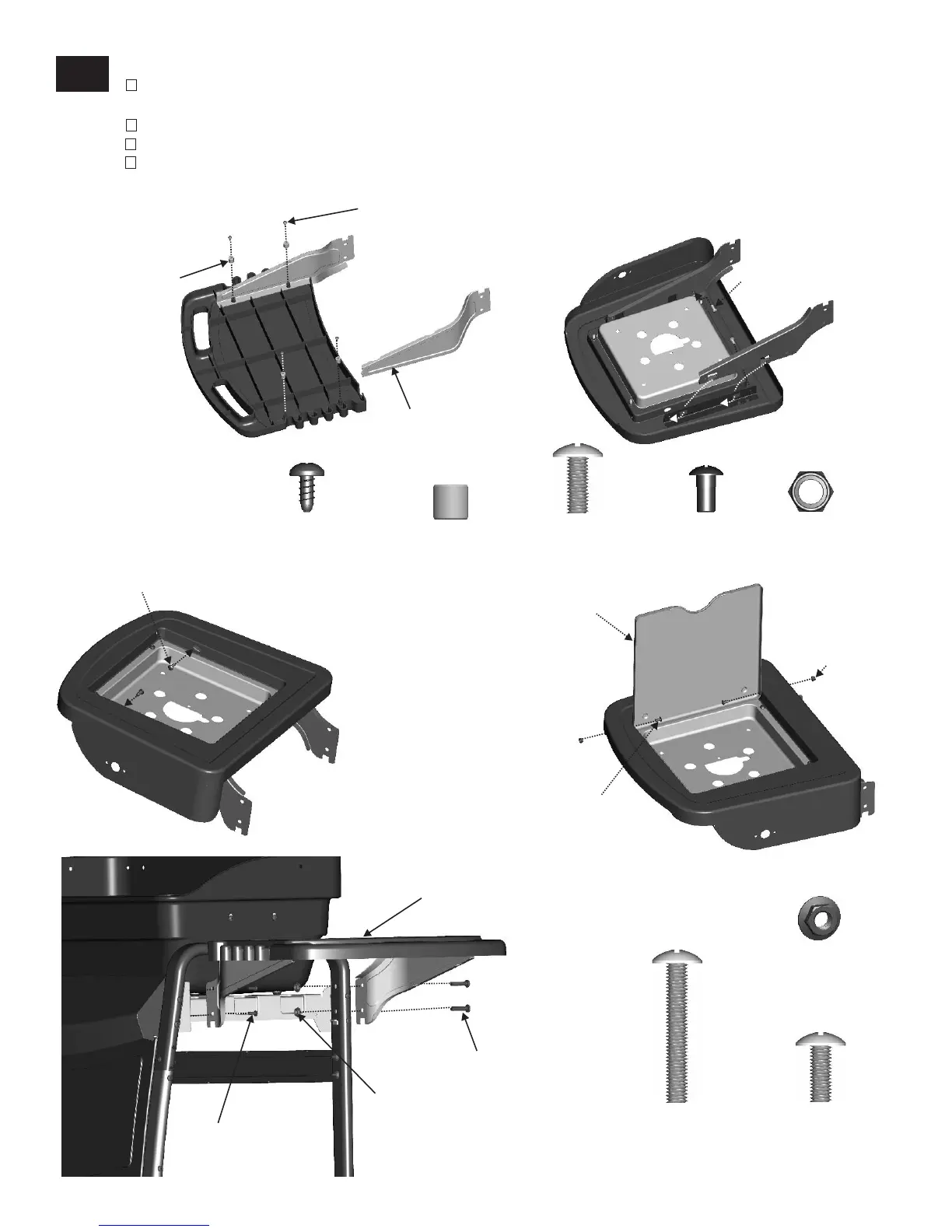

Attach mounting brackets to shelf support with side shelf bushing and #8x3/8" sheet metal screws (A). Note: do
NOT over tighten the screws.
Insert mounting brackets into side burner shelf support, secure with #10-24x1/2’’ machine screws (B) and (C ).
Attach sideburner lid to sideburner shelf with #10-24 nut and shoulder bolt (D).
Attach Right Side Shelf and Side Burner Support Shelf to front of leg with 1/4-20x1/2’’ machine screws. Attach to back
of leg with 1/4-20x1-1/4’’ machine screws and 1/4-20 flange nuts (E).
12
Side Shelf Bushing
Qty. 4
E
Side Shelf Bushing
#8x3/8’’
Sheet Metal Screw
Mounting Bracket
Side shelf
1/4-20x1-1/4"
Machine Screw
1/4-20
Flange Nut
1/4-20x1/2"
Machine Screw
A
B
#10-24X1/2”
Machine Screw
#10-24X1/2”
Machine Screw
Sideburner lid
D
#10-24 Nut
Qty. 2
Shoulder Bolt
Qty. 2
#10-24 Nut
Shoulder Bolt
1/4-20x1-1/4"
Machine Screw
Qty. 4
1/4-20x1/2"
Machine Screw
Qty. 4
1/4-20
Flange Nut
Qty. 4
#10-24X1/2”
Machine Screw
Qty. 4
#8x3/8"
Sheet Metal Screw
Qty. 4
C
